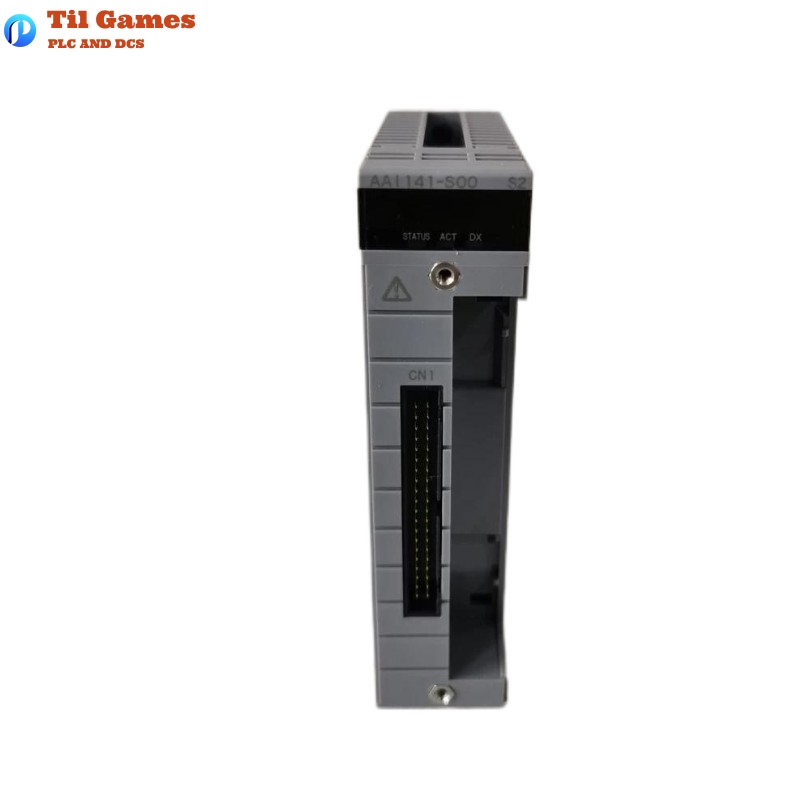

Yokogawa AAI141-S00/K4A00 Analog Input Module

Manufacturer：Yokogawa

Product Number：AAI141-S00/K4A00

Product Type：Analog Input Module

Origin：Japan

Dimensions：107.5 × 32.8 × 130 mm

Weight：0.2 kg

Frequently Asked Questions (FAQ)

Q1: What type of input signal does the AAI141-S00/K4A00 support?
A1: It supports standard 4 to 20 mA DC current input signals.

Q2: Are the input channels isolated from each other?
A2: No, the input channels are non-isolated in this model.

Q3: Is HART communication available with this module?
A3: Yes, HART communication is supported when used with an ER bus node unit equipped with EB401 firmware revision 2 or later.

Q4: How many input channels are available on the AAI141-S00/K4A00 module?
A4: The module provides 16 independent analog input channels.

Q5: Can this module be used with both 2-wire and 4-wire transmitters?
A5: Yes, each channel can be configured individually for 2-wire or 4-wire transmitters using pin settings.

Q6: What is the power supply requirement for the transmitter output?
A6: It supplies 14.8 V minimum at 20 mA and 26.4 V maximum at 0 mA, with a maximum output current of 27 mA.

Q7: What are the physical dimensions of the module?
A7: The module measures 107.5 mm (H) × 32.8 mm (W) × 130 mm (D).

Q8: What is the allowable current input range?
A8: The module can accept input currents up to 27 mA.
