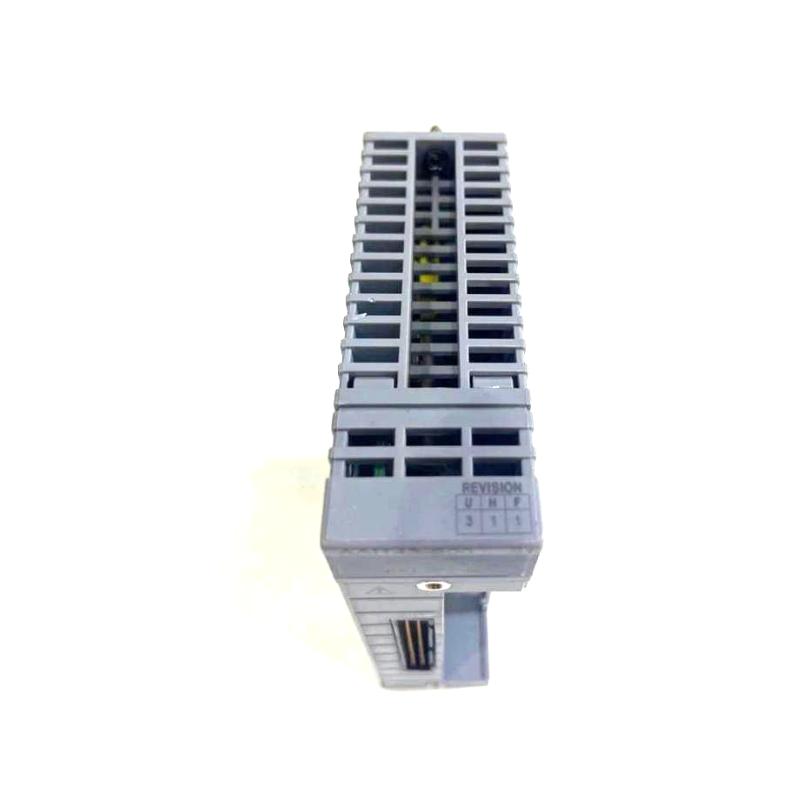

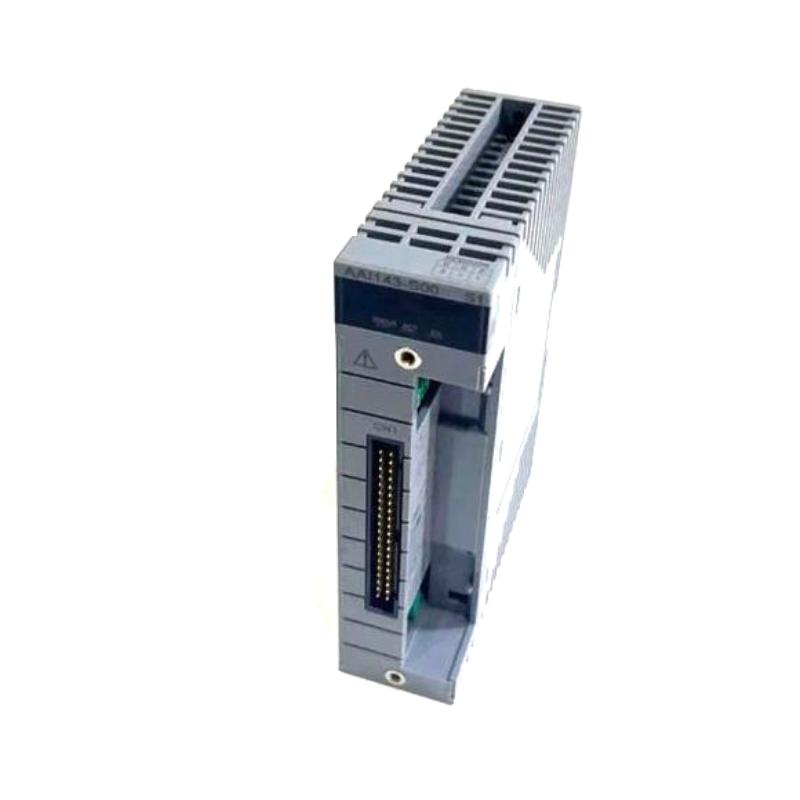

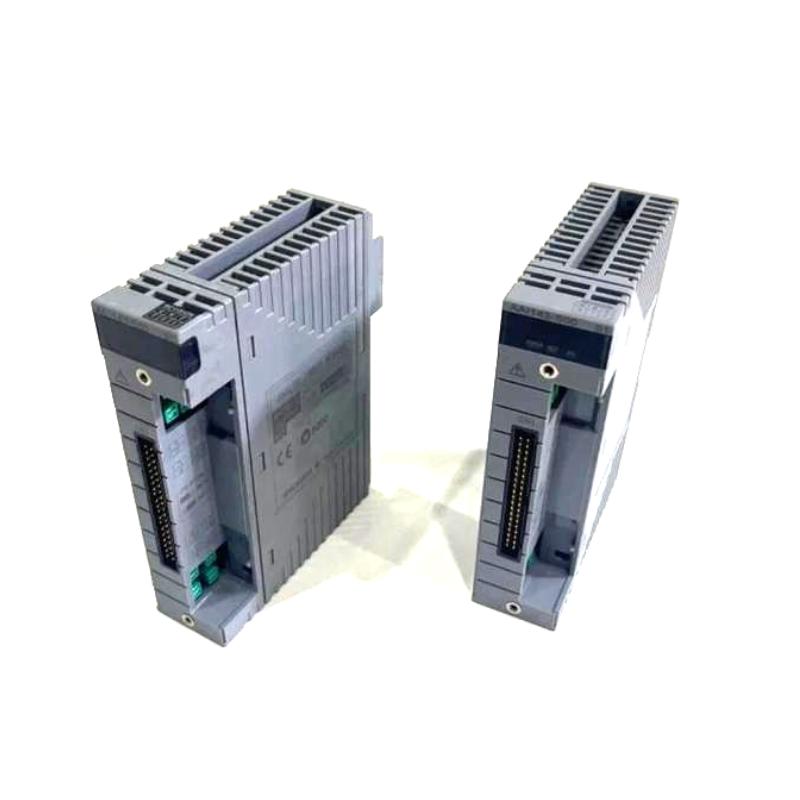

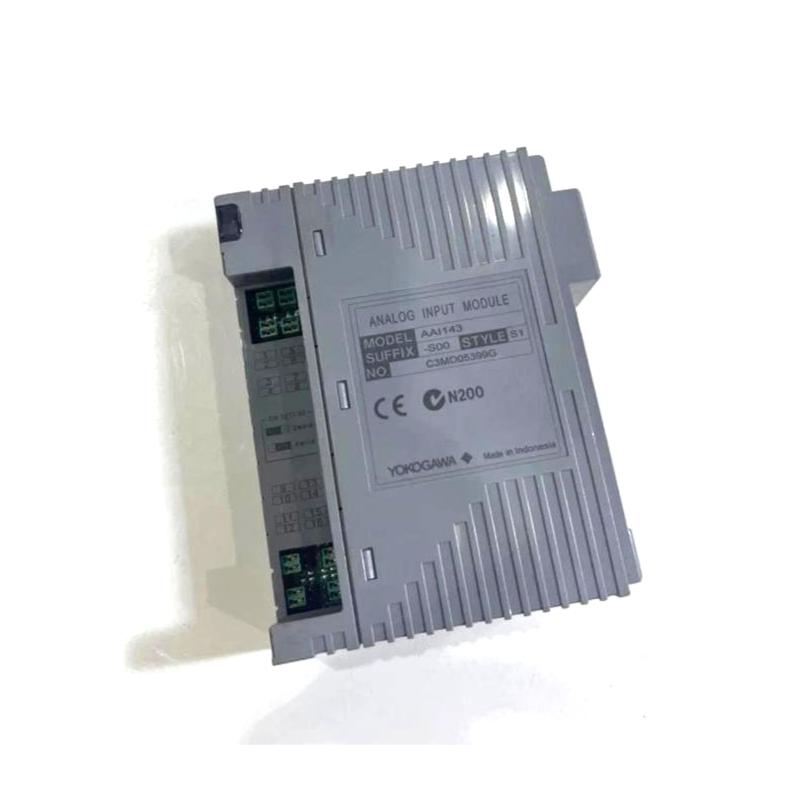

Technical Specifications
| Item | Specification |
|---|---|
| Model | AAI143-S00 |
| Number of Input Channels | 16 channels, isolated |
| Input Signal | 4 to 20 mA DC |
| Allowable Input Current | Max. 24 mA |
| Withstanding Voltage | 1500 V AC between input and system (1 min) |
| Input Resistance (Power ON) | 270 to 350 Ω (depending on input current) |
| Input Resistance (Power OFF) | ≥500 kΩ |
| Accuracy | ±16 μA |
| Data Update Period | 10 ms |
| Transmitter Supply Voltage | ≥19.0 V (at 20 mA), ≤25.5 V (at 0 mA, limit: 25 mA) |
| 2-/4-wire Transmitter Setting | Per channel via pin setting |
| Temperature Drift | ±16 μA/10°C |
| Max. Current Consumption | 230 mA @ 5 V DC, 540 mA @ 24 V DC |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| HART Communication | Supported |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input signal does the AAI143-S00 module support?
A1: It supports 4 to 20 mA DC current input signals.
Q2: Are all input channels isolated?
A2: Yes, all 16 input channels are individually isolated.
Q3: Does this module support HART communication?
A3: Yes, it supports HART communication when used with compatible HART-enabled node units.
Q4: Can the module be used in redundant configurations?
A4: Yes, it is suitable for dual-redundant setups.
Q5: What is the range of transmitter supply voltage?
A5: Minimum 19.0 V at 20 mA and maximum 25.5 V at 0 mA, with output current limited to 25 mA.
Q6: Which Yokogawa FCS units are compatible with this module?
A6: Compatible with FIO-based FCS units like AFV30S, AFV40D, AFV10D, AFF50D, etc.
Q7: Can a Zener barrier be connected to the module?
A7: No, it must use an isolation barrier for intrinsically safe applications.
Q8: What connection methods are available for external wiring?
A8: It supports pressure clamp terminals, MIL connectors, and KS cables.
