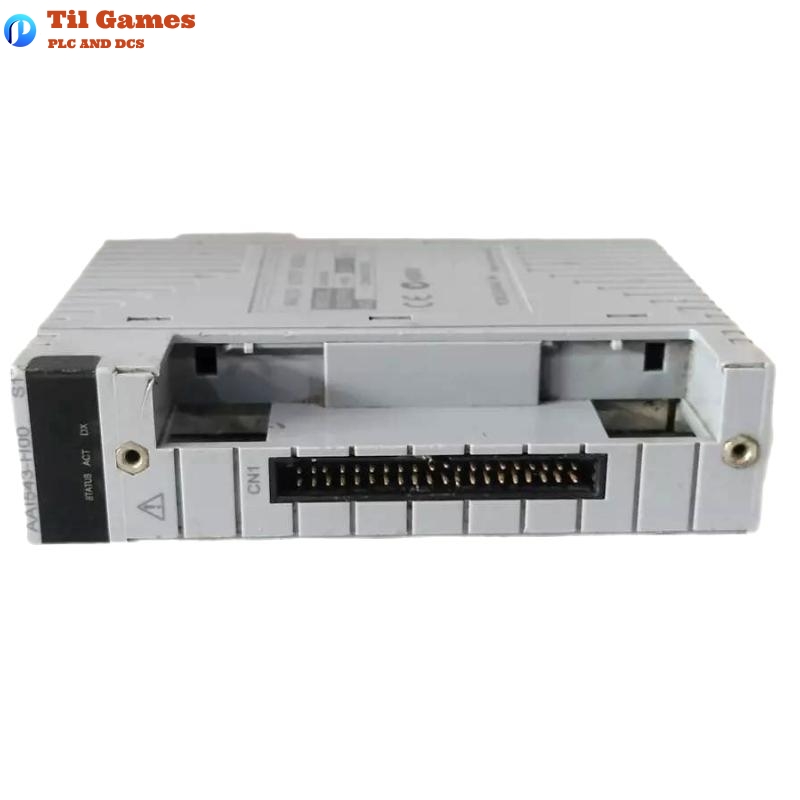

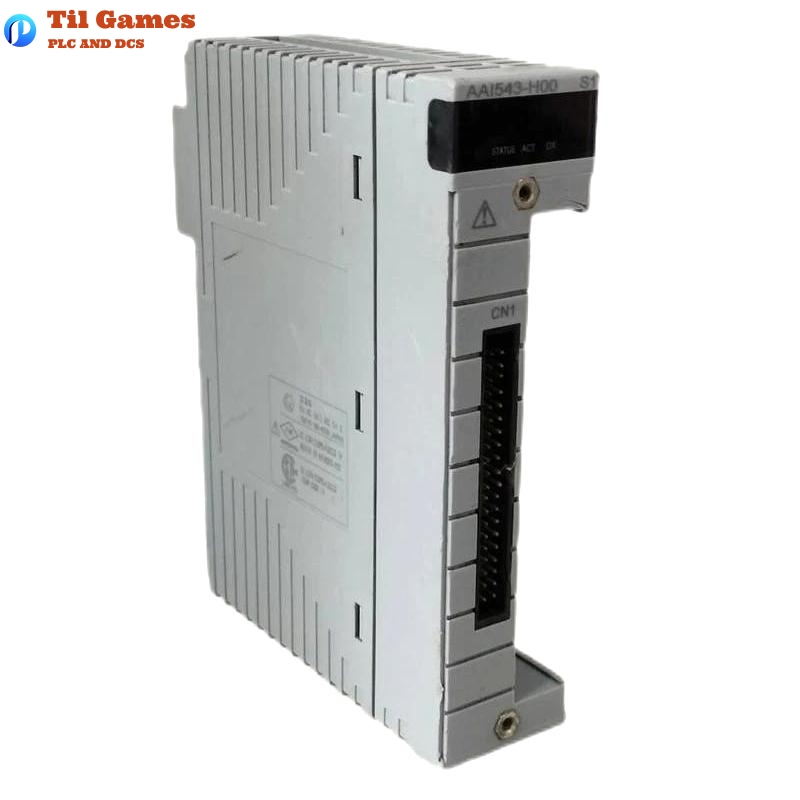

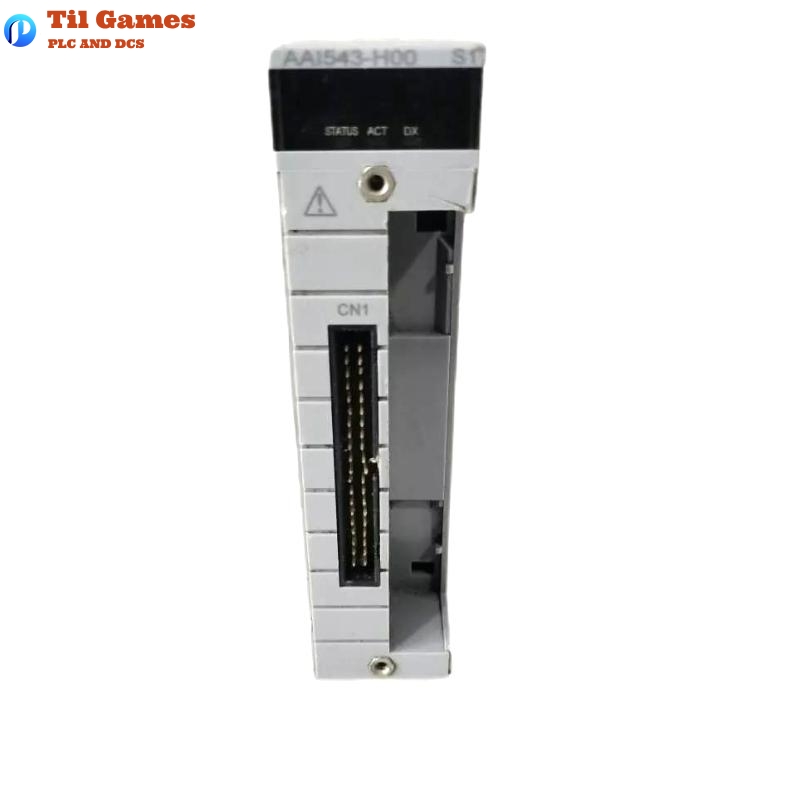

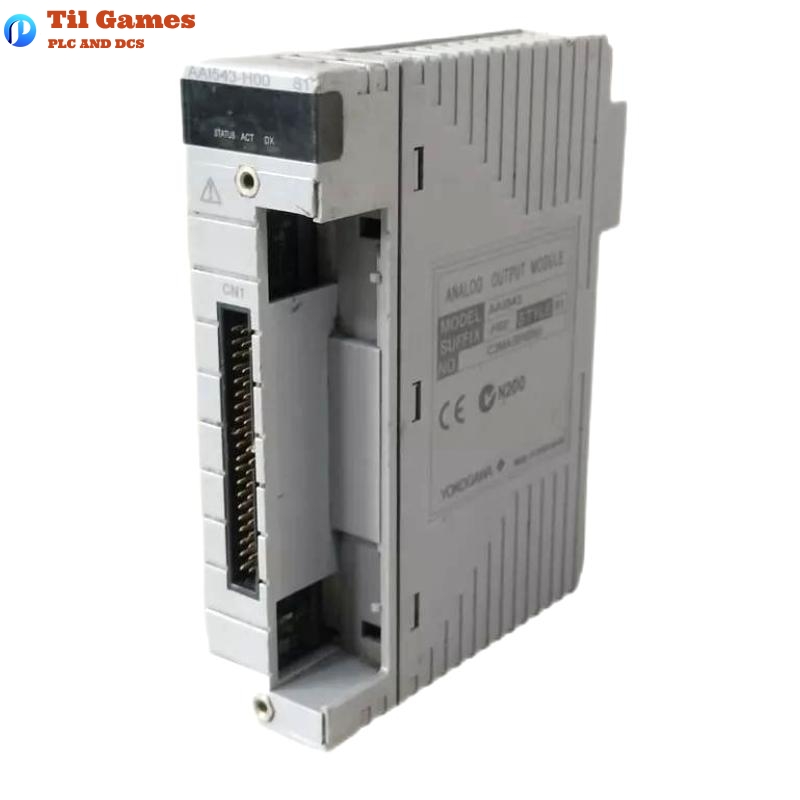

Yokogawa AAI543 Analog Output Module

Manufacturer：Yokogawa

Product Number：AAI543

Product Type：Analog Output Module

Origin：Japan

Dimensions：107.5 × 32.8 × 130 mm

Weight：0.4 kg

Frequently Asked Questions (FAQs)

Q1: How many output channels does the AAI543 module provide?
A1: The AAI543 module offers 16 isolated analog output channels.

Q2: What is the standard output range supported by AAI543?
A2: It supports a 4 to 20 mA DC current output per channel.

Q3: Can AAI543 be used in a redundant system?
A3: Yes, it supports dual-redundant configurations. Two identical modules can be used for redundancy with standard or fast switch-over response.

Q4: What is the maximum load resistance supported per channel?
A4: Each channel supports a load resistance ranging from 0 to 750 ohms.

Q5: Does AAI543 support HART communication?
A5: Yes, HART communication is supported when used with compatible ER bus node units and EB401 firmware version 2 or later.

Q6: What is the response time during a redundant switch-over?
A6: The standard model switches within 100 ms, while the fast-response model switches in 2 ms or less.

Q7: What is the voltage isolation specification for this module?
A7: It provides 1500 V AC isolation between the output and system for 1 minute when using the dedicated cable.

Q8: What type of connectors does the module support for external wiring?
A8: Supported connector types include pressure clamp terminals, MIL connectors, and dedicated KS1 cables.
