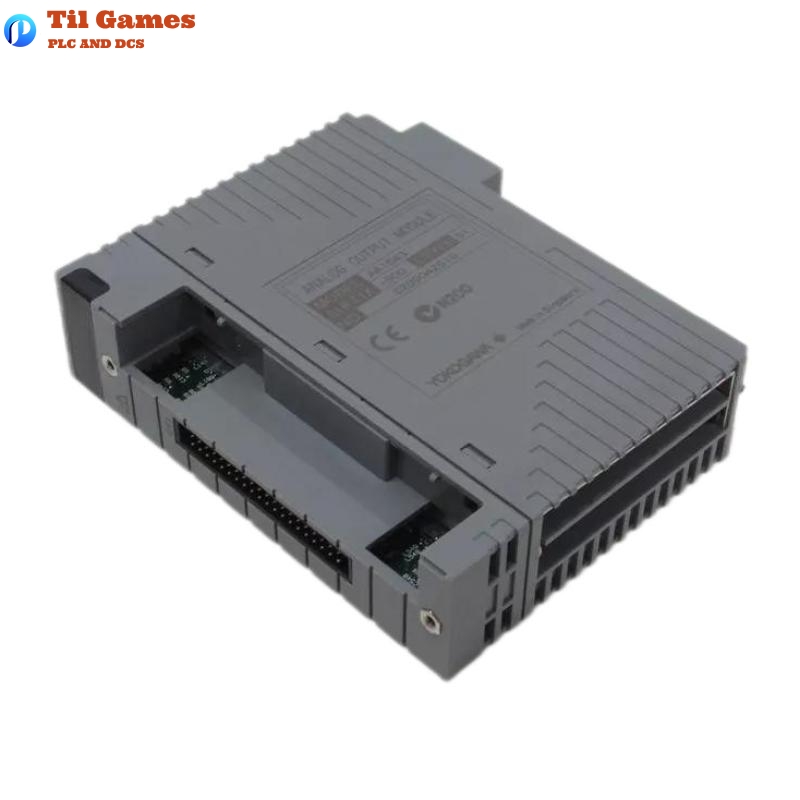

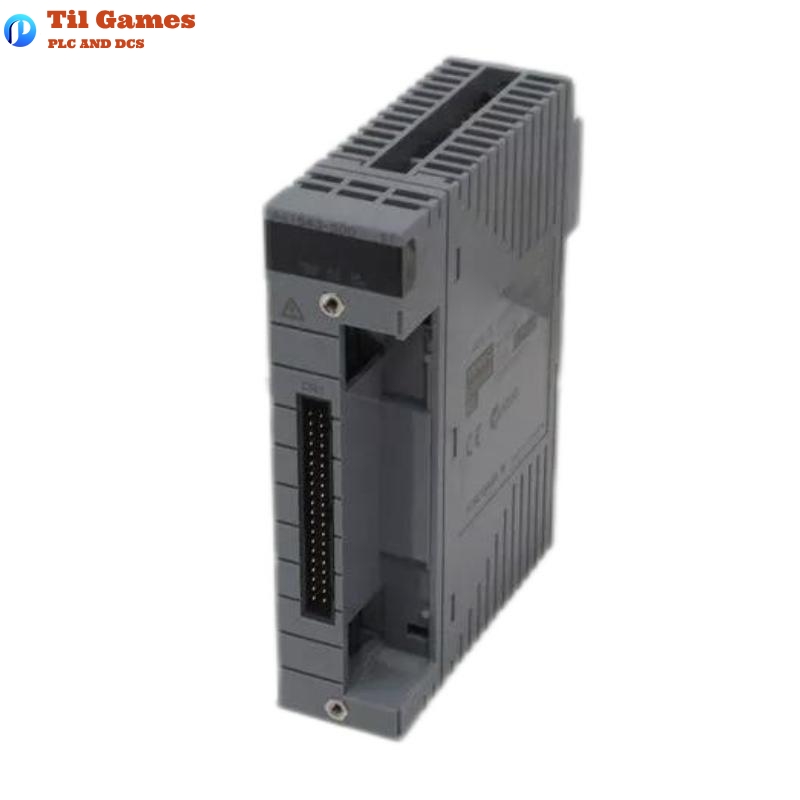

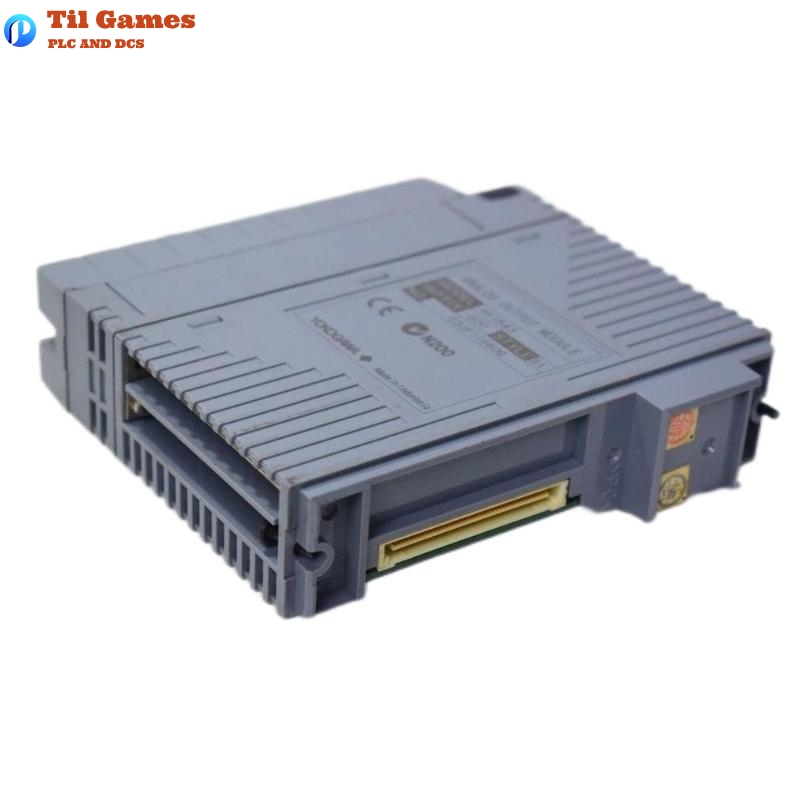

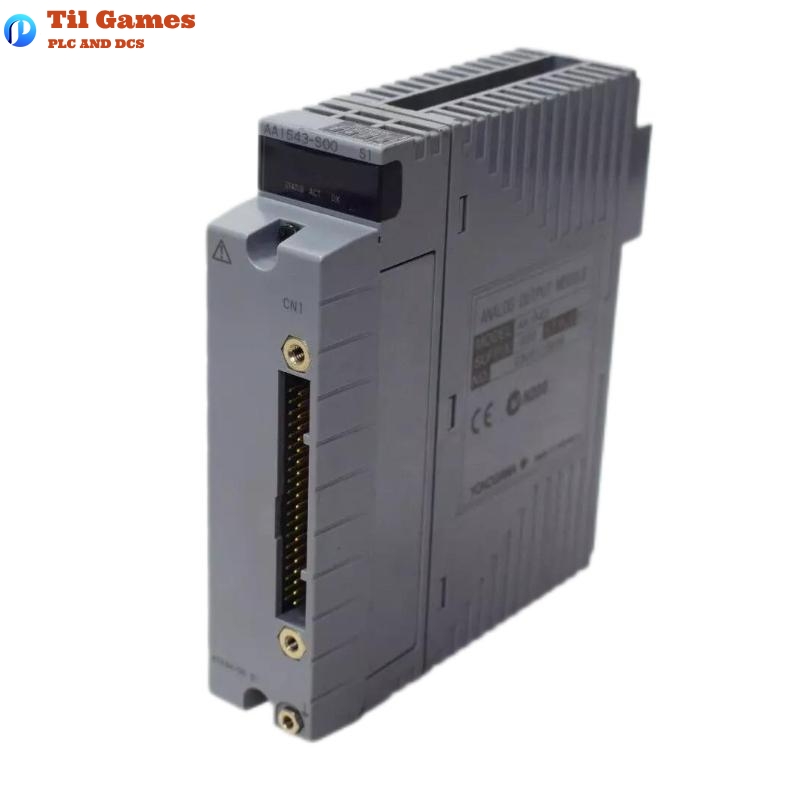

Technical Specifications
| Item | Specification |
|---|---|
| Model | AAI543-S00 |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA DC |
| Withstanding Voltage | 1500 V AC between output and system (1 min) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-open Detection | Output < 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Ambient Temperature Drift | ±16 µA/10 °C |
| Redundancy Support | Yes (dual-redundant configuration supported) |
| Switch-over Time (Standard) | Max 100 ms |
| Switch-over Time (Fast) | Max 2 ms |
| HART Communication | Supported (HART Command #3 required) |
| Max Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output signal range of the AAI543-S00 module?
A1: The module provides analog output signals in the range of 4 to 20 mA DC across 16 isolated channels.
Q2: Is the AAI543-S00 suitable for redundant system configurations?
A2: Yes, the AAI543-S00 supports dual-redundant configurations using two identical modules.
Q3: What is the allowable load resistance for each output channel?
A3: The allowable load resistance per channel is from 0 to 750 ohms.
Q4: How accurate is the output current?
A4: The module achieves an output accuracy of ±48 µA.
Q5: Does the AAI543-S00 support HART communication?
A5: Yes, it supports HART communication when installed in a compatible ER bus node unit with appropriate firmware.
Q6: What is the module’s behavior during switch-over in redundancy?
A6: For standard types, switch-over can cause the output to dip below 4 mA for up to 100 ms; for fast types, the dip lasts no more than 2 ms.
Q7: Can this module be used in hazardous environments?
A7: Explosion-protected versions are available by specifying the appropriate suffix codes (e.g., “E” or “F”).
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 107.5 mm × 32.8 mm × 130 mm and weighs approximately 0.4 kg.
