Technical Specifications
| Item | Specification |
|---|---|

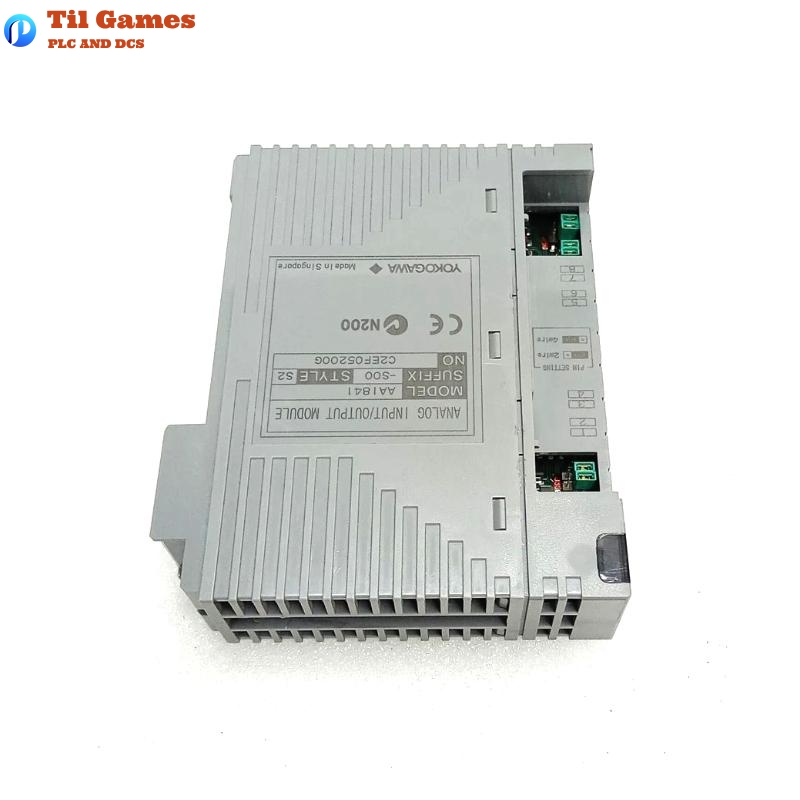

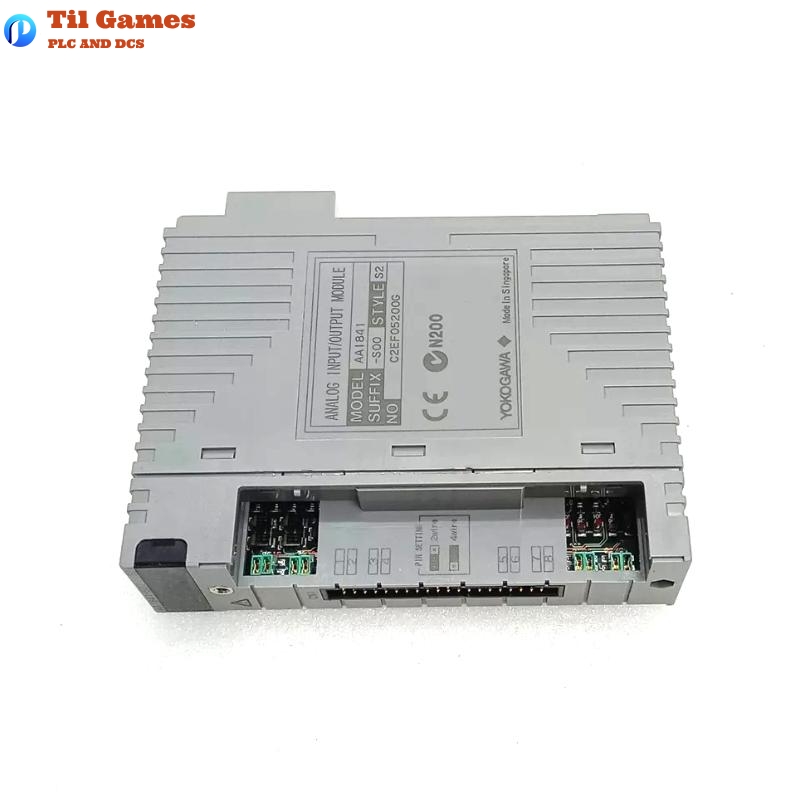

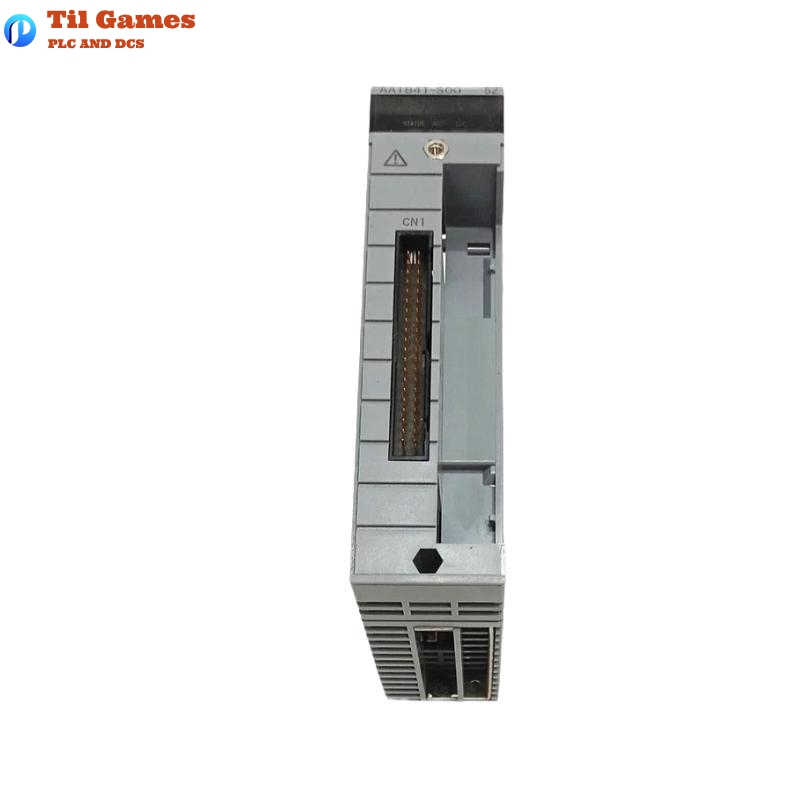

| Model | AAI841-S00 S2 |
| Input Channels | 8 channels (non-isolated) |
| Output Channels | 8 channels (non-isolated) |
| Input Signal | 4 to 20 mA DC |
| Output Signal | 4 to 20 mA DC |
| Allowable Input Current | 25 mA |
| Input Resistance (Power ON) | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | Input: ±16 µA, Output: ±48 µA |
| Data Update Period | 10 ms |
| Input Step Response Time | 100 ms |
| Output Step Response Time | 40 ms |
| Temperature Drift | ±0.1 % per 10 °C |
| Transmitter Power Supply | 14.8 V or higher at 20 mA, 26.4 V or less at 0 mA |
| Max Current Consumption | 310 mA (5 V DC), 500 mA (24 V DC) |
| External Connections | Pressure clamp terminal, KS cable, MIL connector cable |
| HART Communication | Available (only at current input and output) |
| Module Dimensions (W×D×H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of signals does the AAI841-S00 S2 support?
A1: It supports 4 to 20 mA analog signals for both input and output.
Q2: Can the AAI841-S00 S2 be used in a dual-redundant configuration?
A2: Yes, it is designed to support dual-redundant systems.
Q3: Does this module support HART communication?
A3: Yes, it supports HART communication on current input and output channels.
Q4: What is the response time for analog output changes?
A4: The output step response time is approximately 40 milliseconds.
Q5: What is the maximum load resistance allowed for analog outputs?
A5: The module allows for load resistance from 0 to 750 Ω.
Q6: How accurate is the module for input and output measurements?
A6: It has an accuracy of ±16 µA for input and ±48 µA for output.
Q7: What is the recommended power supply for this module?
A7: It requires 5 V DC at 310 mA and 24 V DC at 500 mA maximum.
Q8: Is the AAI841-S00 S2 suitable for use with intrinsically safe barriers?
A8: No, the use of Zener barriers is not permitted. Use isolation barriers for intrinsically safe applications.
