Technical Specifications
| Parameter | Description |
|---|---|

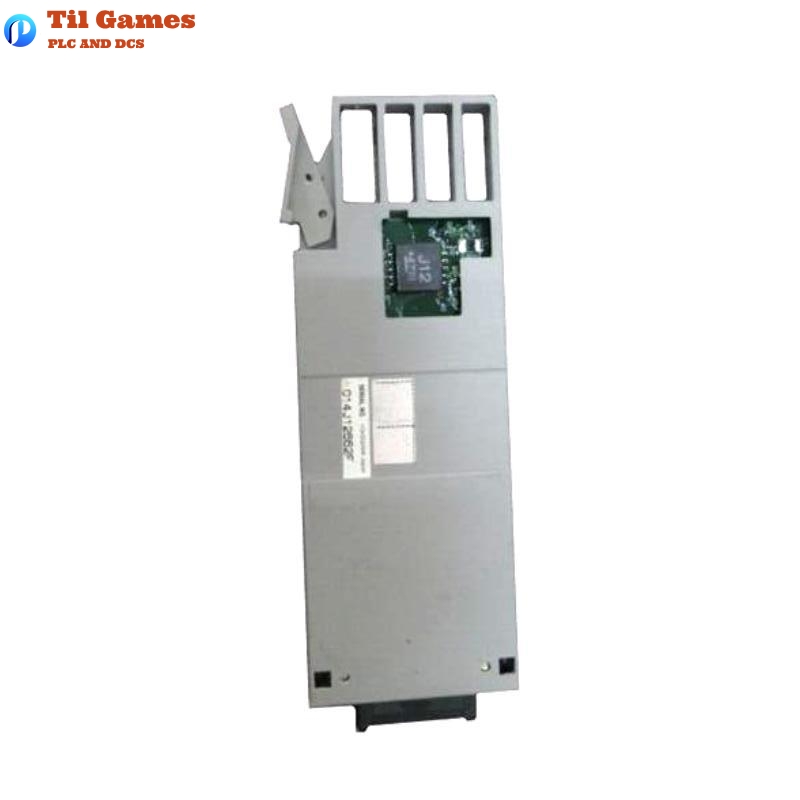

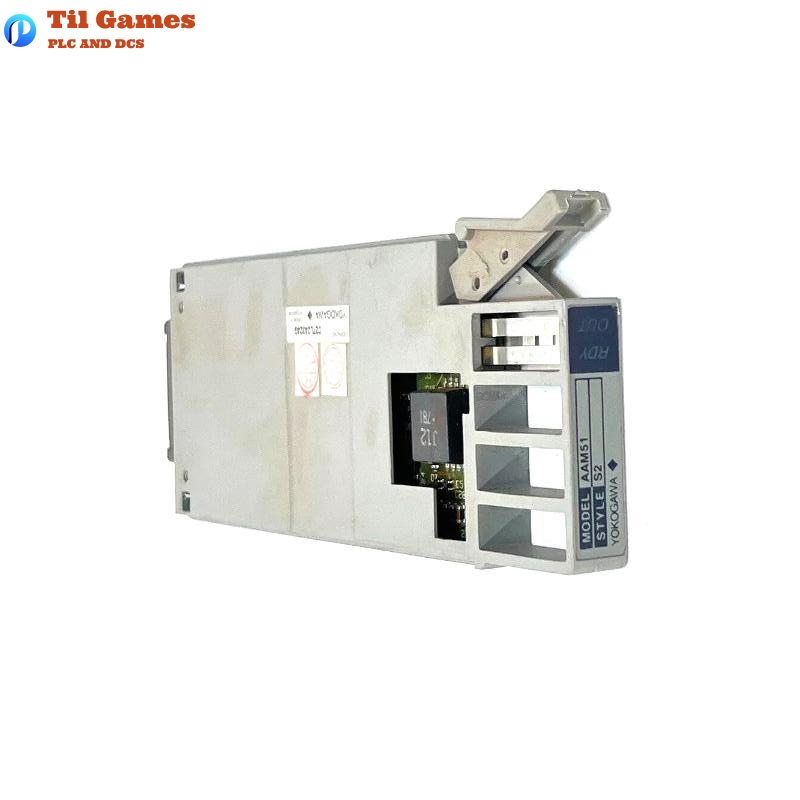

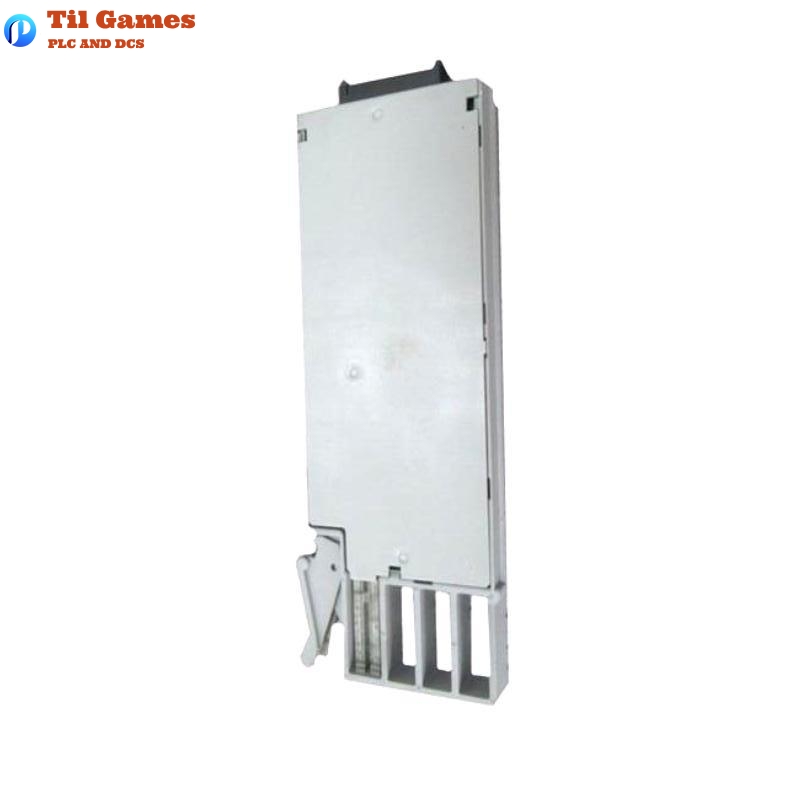

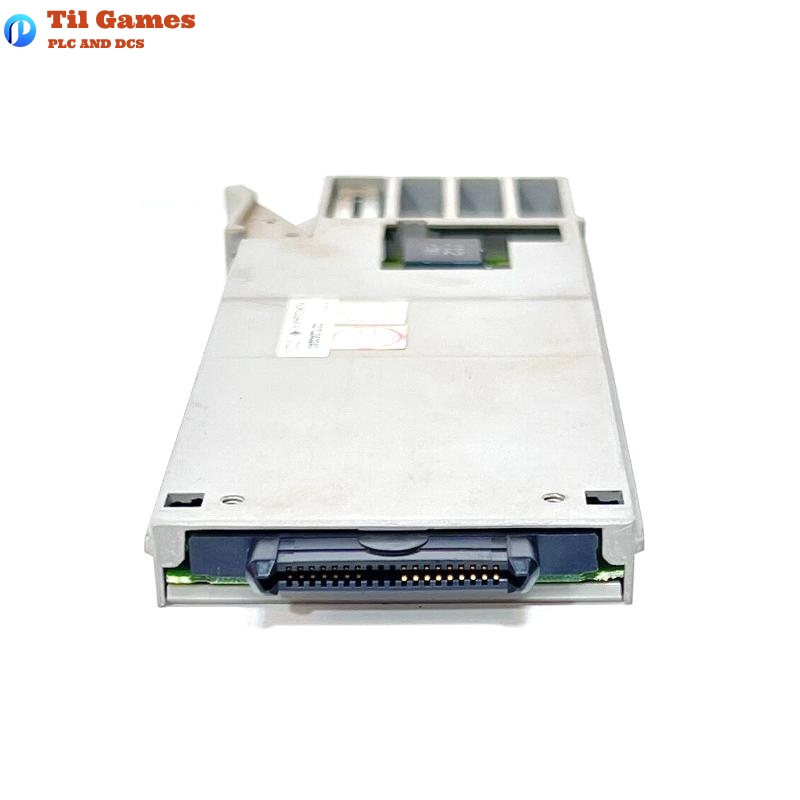

| Model | AAM51-S1 |
| Module Type | Current/Voltage Output Module |
| Output Signal Type | Analog output (current and voltage) |
| Output Channels | 4 channels (individually configurable) |
| Signal Ranges | 1–5 V DC, 4–20 mA DC |
| Output Accuracy | ±0.1% of span (typical) |
| Load Resistance | Voltage output: 2 kΩ min Current output: 750 Ω max |
| Isolation | Channel to channel and channel to ground isolated |
| Power Supply | Supplied via I/O base |
| Mounting | Mounted on a dedicated I/O nest (AMN11) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 130 × 27 × 130 mm |
| Weight | 0.113 kg |
| Applicable System | CENTUM CS / CS 3000 / VP RIO systems |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the AAM51-S1 module output?
A1: It supports both current (4–20 mA DC) and voltage (1–5 V DC) output signals.
Q2: Is the AAM51-S1 module isolated?
A2: Yes, each channel is isolated from the others and from ground.
Q3: How many output channels does the AAM51-S1 provide?
A3: The module provides 4 analog output channels.
Q4: What is the typical accuracy of the output signal?
A4: The output accuracy is typically within ±0.1% of the full span.
Q5: What systems is this module compatible with?
A5: It is compatible with Yokogawa CENTUM CS, CS 3000, and VP RIO systems.
Q6: Can the AAM51-S1 be mounted directly on a panel?
A6: No, it must be mounted on a designated I/O nest such as the AMN11.
Q7: What is the maximum load resistance for current output?
A7: The maximum load resistance for current output is 750 Ω.
Q8: Can voltage and current outputs be used simultaneously on one channel?
A8: No, each channel must be configured for either current or voltage output, not both simultaneously.
