Technical Specifications
| Parameter | Specification |
|---|---|

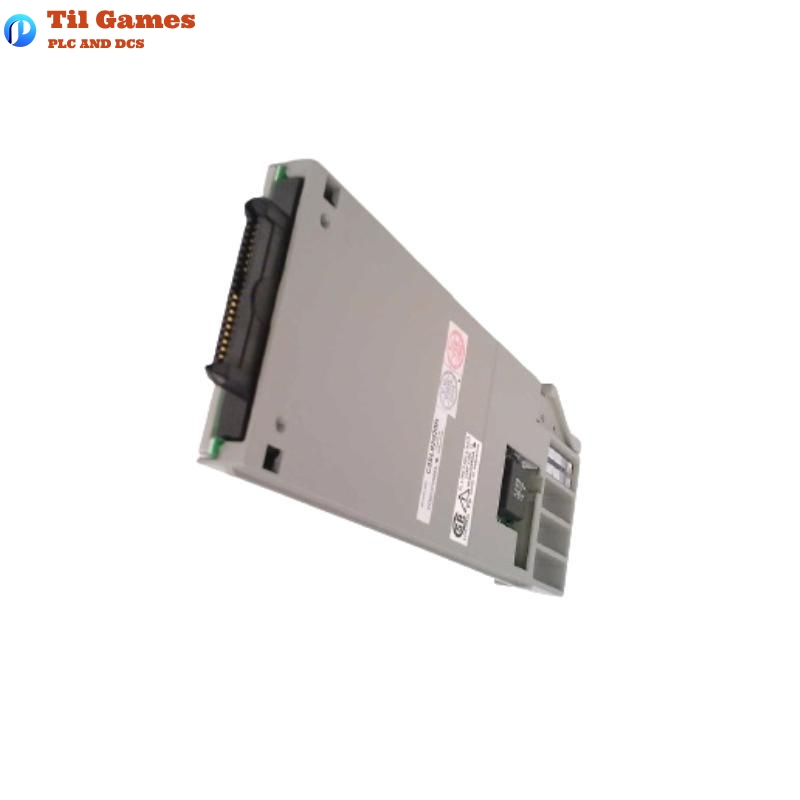

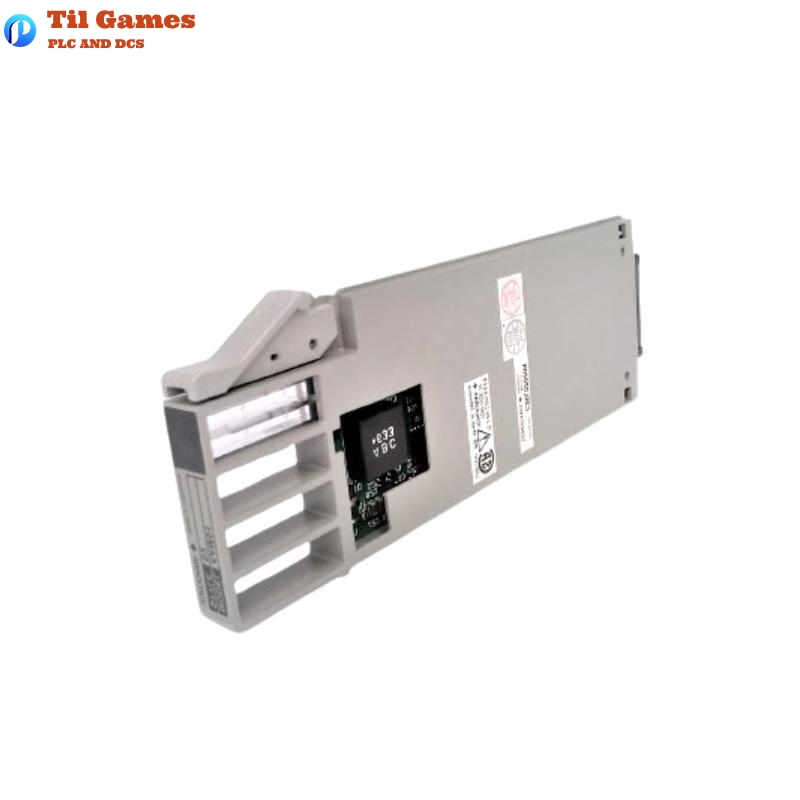

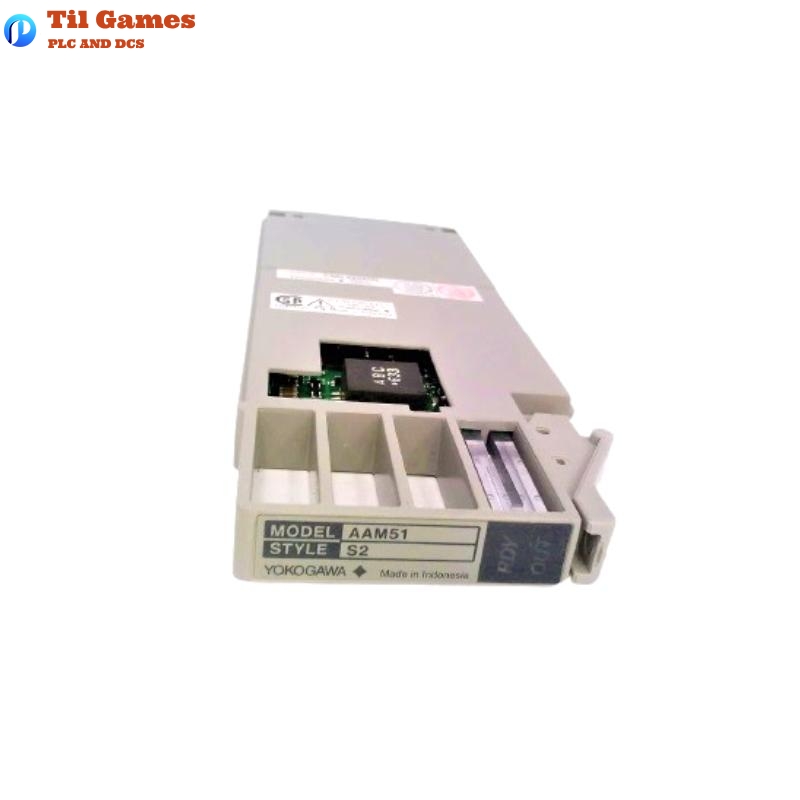

| Product Model | AAM51-S2 |
| Type | Current/Voltage Output Module |
| Output Channels | 2 channels (Isolated) |
| Output Signal | 4–20 mA DC, 1–5 V DC |
| Load Resistance (Current) | 750 Ω or less |
| Load Resistance (Voltage) | 2 kΩ or more |
| Accuracy | ±0.1% of span |
| Resolution | 12 bits |
| Response Time | Within 250 ms |
| Isolation | Channel to Channel and Channel to Ground |
| Power Supply | Supplied from node interface unit |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Ambient Humidity | 5 to 95% RH (non-condensing) |
| Installation Method | Mounted in AMN11/AMN12 I/O nests |
| Dimensions | 130 × 27 × 130 mm |
| Weight | 0.113 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What kind of signals does the AAM51-S2 support?
A1: It supports analog current (4–20 mA DC) and voltage (1–5 V DC) output signals.
Q2: Can AAM51-S2 be used for both current and voltage simultaneously?
A2: No, each channel must be configured for either current or voltage output, not both at once.
Q3: Is the AAM51-S2 output isolated?
A3: Yes, each channel is isolated from the others and from ground.
Q4: What is the typical application of AAM51-S2?
A4: It is used in process automation systems to send analog control signals to field devices.
Q5: What is the load resistance requirement for voltage output?
A5: The connected load must be 2 kΩ or higher.
Q6: What is the maximum load resistance allowed for current output?
A6: Up to 750 Ω.
Q7: Is there a need for an external power source?
A7: No, it is powered through the node interface unit.
Q8: Which I/O nests are compatible with the AAM51-S2?
A8: It is compatible with AMN11 and AMN12 nests.
