Technical Specifications
| Item | Specification |
|---|---|

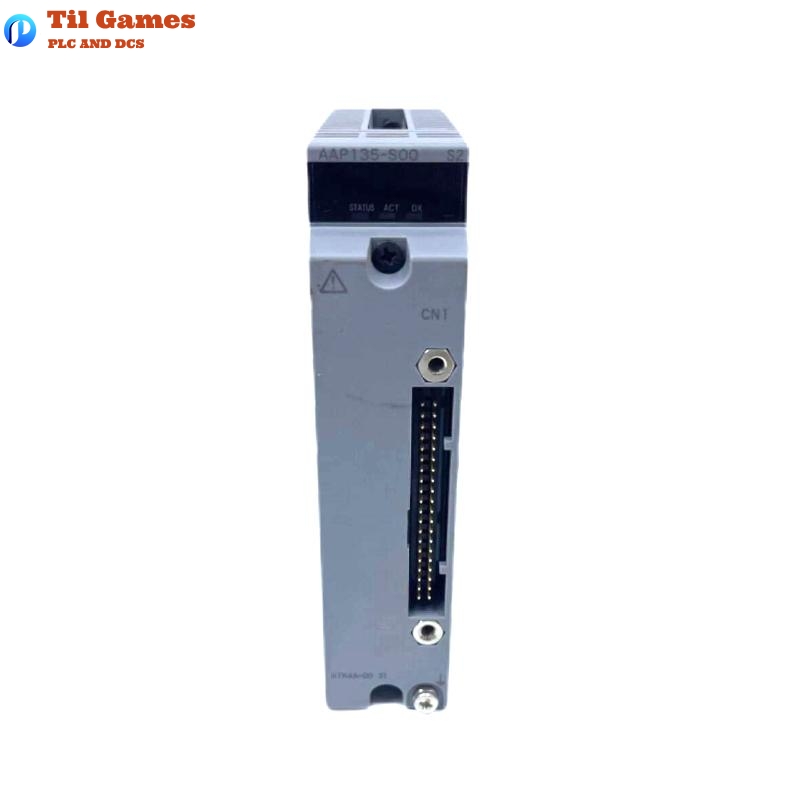

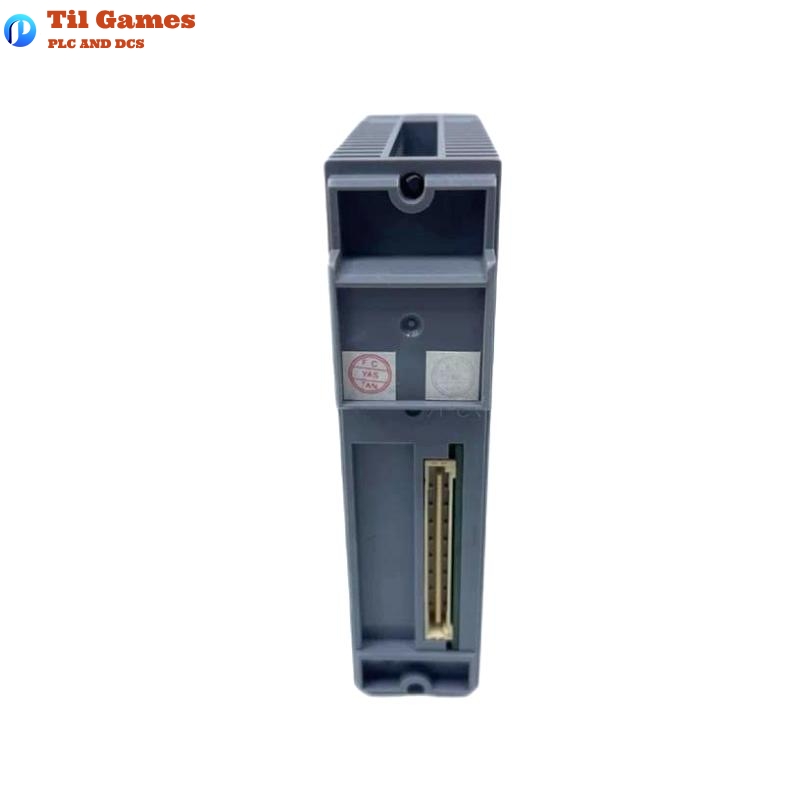

| Model | AAP135-S00 S2 |
| Input Channels | 8 isolated channels |
| Input Signal Types | 2-wire: Contact ON/OFF, voltage pulse, current pulse; 3-wire: Voltage pulse |
| Input Frequency | 0 to 10 kHz (0–800 Hz for non-voltage contact between terminals B & C) |
| Minimum Pulse Width | 40 μs |
| Signal Levels – Contact Input | Open: ≥100 kΩ; Close: ≤200 Ω |
| Signal Levels – Voltage Input | VH: 3–24 V DC; VL: -1–8 V DC; VH–VL ≥3 V; source resistance ≤1 kΩ |
| Shunt Resistance Options | None / 200 / 500 / 1000 Ω (open when power OFF or standby in redundancy) |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Filter | Optional chatter elimination filter |
| Transmitter Power Supply | Selectable: 12 V DC ±10 % (40 mA), 24 V DC ±10 % (30 mA) |
| Withstanding Voltage | Input–System: 500 V AC; Channel–Channel: 500 V AC, 1 min |
| Data Update Period | 2 ms |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
| Power Consumption | 300 mA (5 V DC), 400 mA (24 V DC) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What input signal types does the AAP135 support?
A1: It supports contact ON/OFF, voltage pulse, and current pulse for 2-wire connections, and voltage pulse for 3-wire connections.
Q2: What is the maximum frequency of input pulses?
A2: The maximum frequency is 10 kHz for general input and 800 Hz for non-voltage contact inputs between terminals B and C.
Q3: Can the module supply power to field transmitters?
A3: Yes, selectable 12 V DC (40 mA max) or 24 V DC (30 mA max) power supply is available.
Q4: Is channel-to-channel isolation provided?
A4: Yes, each input channel is isolated from others and from the system by 500 V AC.
Q5: How is contact input defined in terms of resistance?
A5: Contact is open if resistance ≥100 kΩ and closed if ≤200 Ω.
Q6: Can I use this module in a redundant configuration?
A6: Yes, the AAP135 supports dual-redundant configurations with appropriate settings.
Q7: What is the purpose of the shunt resistance setting?
A7: It allows tuning input impedance to match field device characteristics; selectable as none, 200 Ω, 500 Ω, or 1000 Ω.
Q8: What type of filter is included for contact bounce?
A8: A configurable filter is available to eliminate chattering for mechanical relay-type dry contacts.
