Technical Specifications
| Item | Description |
|---|---|

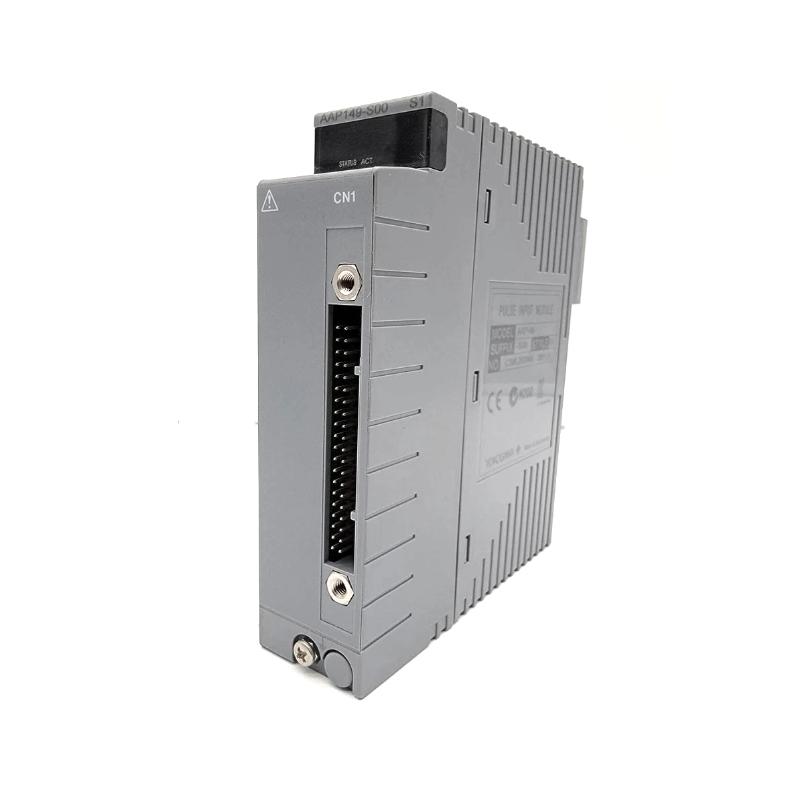

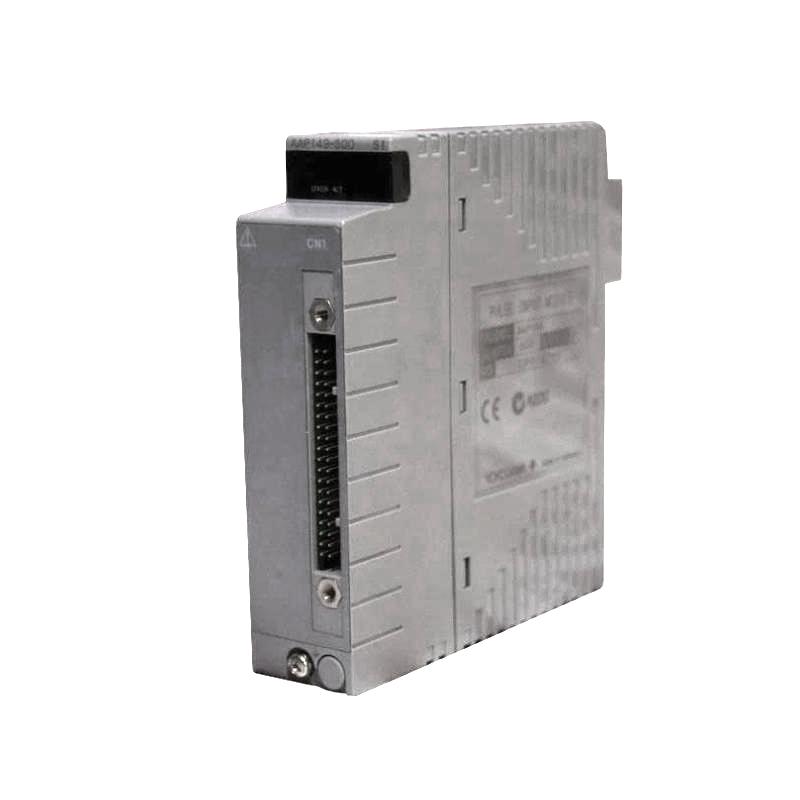

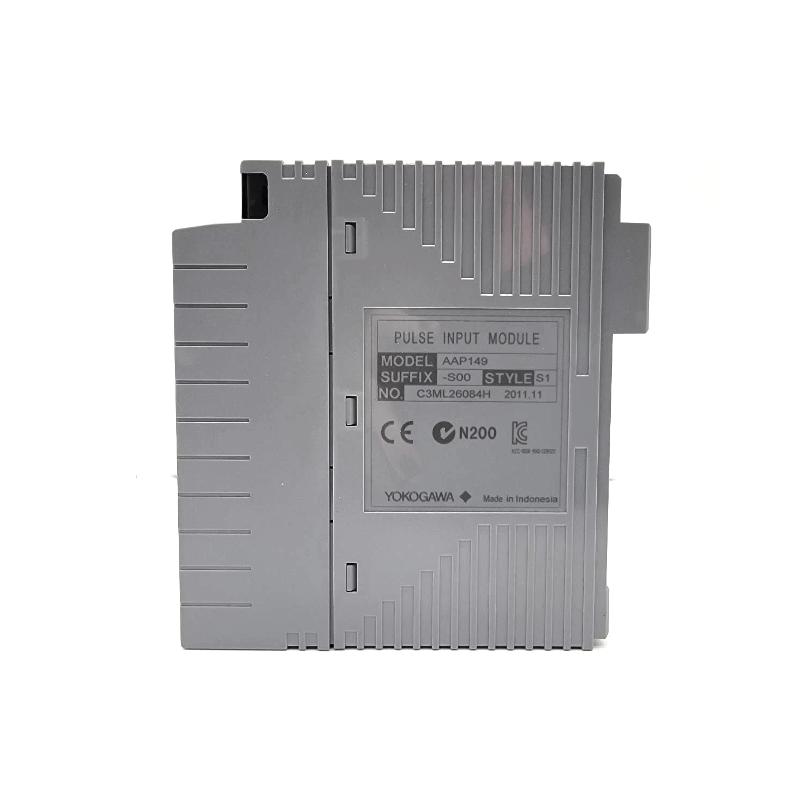

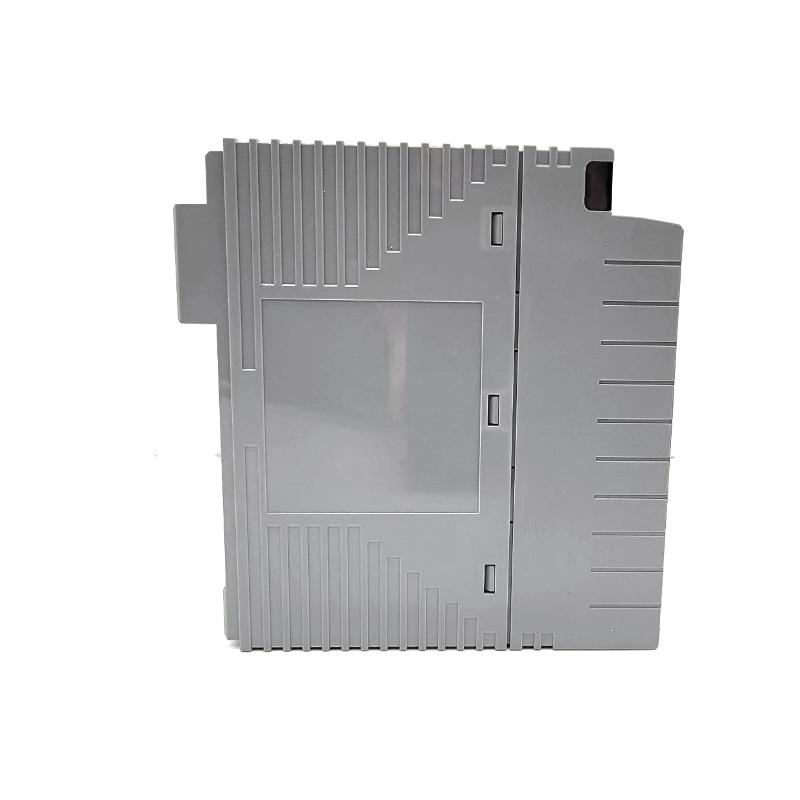

| Model | AAP149 |
| Number of Input Channels | 16 channels, non-isolated |
| Input Signal Type | Transistor contact (open collector) |
| Input Frequency Range | 0 to 6 kHz |
| Pulse Detection Edge | Trailing edge |
| Data Update Period | 2 ms |
| Withstanding Voltage | Not applicable (non-isolated) |
| Maximum Current Consumption | 400 mA (5 V DC) |
| External Connection | Dedicated KS2 cable |
| Dimensions (W x D x H) | 127.2 x 32.8 x 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum input frequency supported by AAP149?
A1: It supports up to 6 kHz input frequency.
Q2: Are the input channels of AAP149 isolated?
A2: No, AAP149 is a non-isolated module with 16 channels.
Q3: What type of input signals does the module accept?
A3: It accepts open-collector transistor contact pulse signals.
Q4: What is the minimum pulse width accepted by the module?
A4: While not explicitly stated, it is limited by the 2 ms data update period and trailing edge detection.
Q5: Is the module suitable for redundant configurations?
A5: No, AAP149 is PM1-compatible and not designed for dual-redundant setups.
Q6: What kind of external connection does it use?
A6: It uses a dedicated KS2 cable for field connection.
Q7: What is the power supply requirement for this module?
A7: It requires 5 V DC with a maximum current consumption of 400 mA.
Q8: What are the physical dimensions of the module?
A8: The module measures 127.2 x 32.8 x 130 mm and weighs 0.3 kg.
