Technical Specifications
| Parameter | Specification |
|---|---|

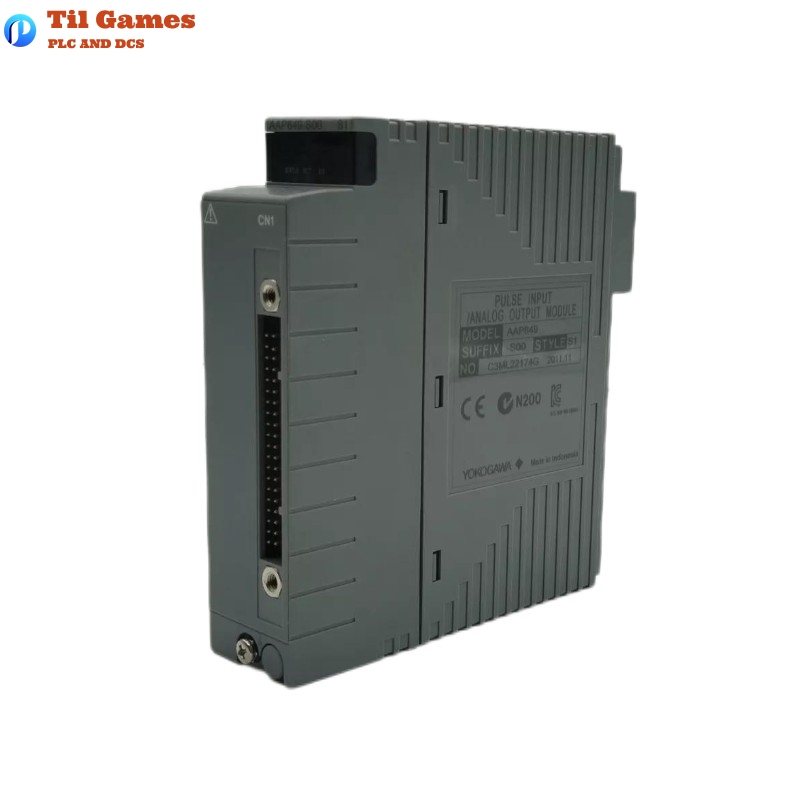

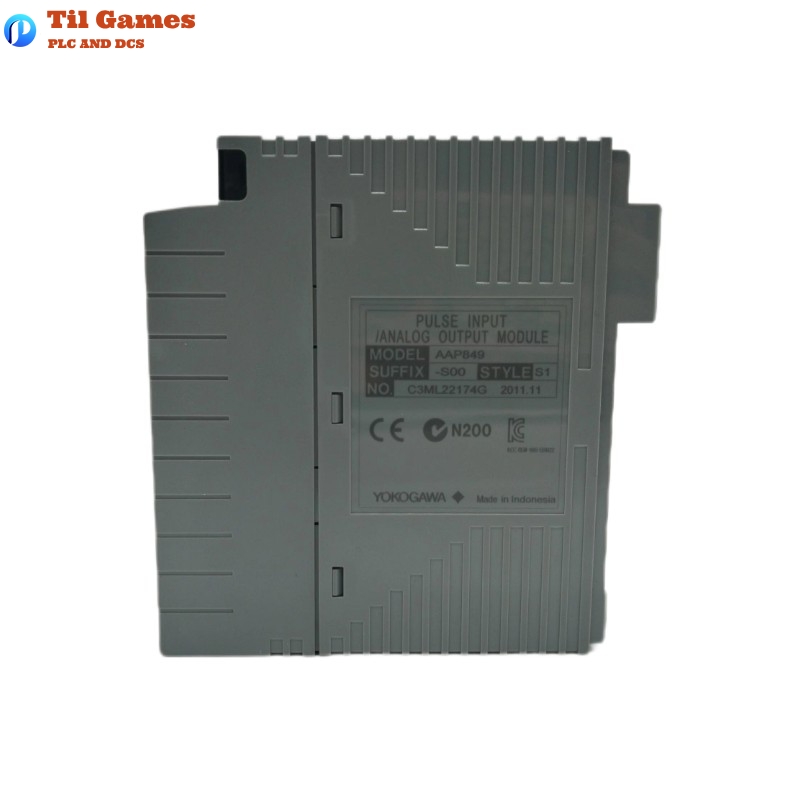

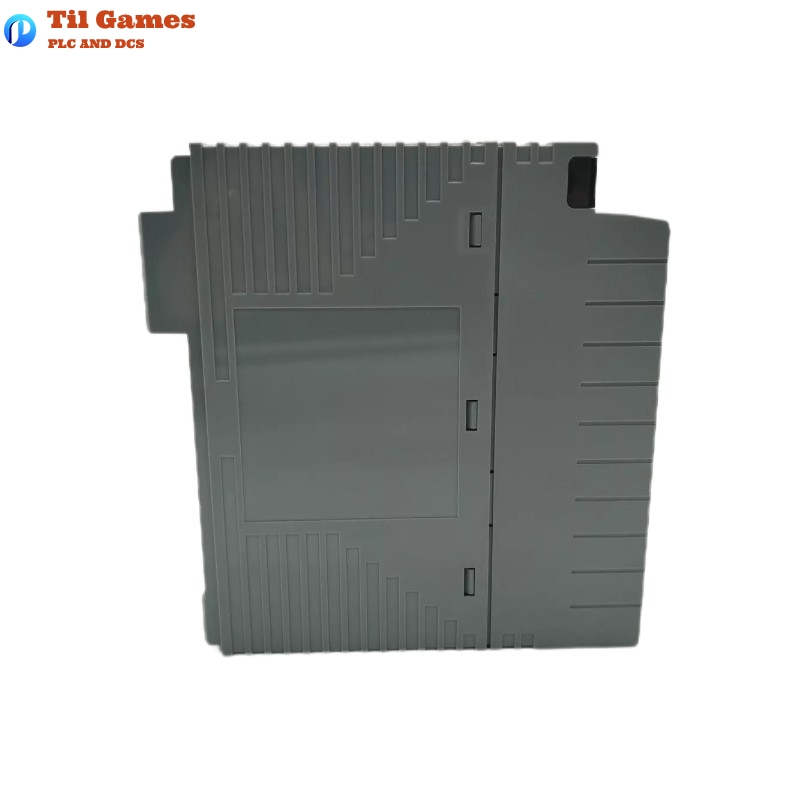

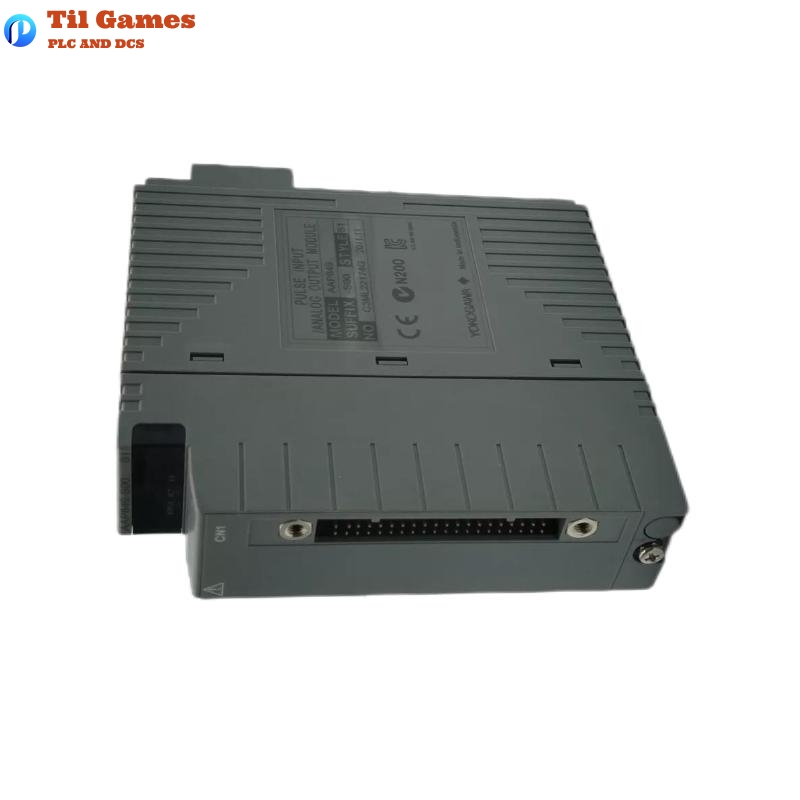

| Model | AAP849 |
| Type | Pulse Input / Analog Output Module |
| Input Channels | 8 Channels (Pulse Input, Non-Isolated) |
| Output Channels | 8 Channels (Analog Output, 4–20 mA, Non-Isolated) |
| Input Frequency | 0 to 10 kHz |
| Output Signal | 4 to 20 mA DC |
| Allowable Load Resistance | 0 to 750 Ω |
| Input Signal Types | Contact ON/OFF, Voltage Pulse, Current Pulse |
| Input Signal Level (Voltage) | VH: 3 to 24 V, VL: –1 to 8 V, Swing ≥ 3 V |
| Input Signal Level (Contact) | Open: ≥ 100 kΩ, Close: ≤ 200 Ω |
| Shunt Resistance Options | None / 200 / 500 / 1000 Ω (selectable) |
| Pulse Detection Width | ≥ 40 µs |
| Circuit-Open Detection | Output current < 0.65 mA |
| Accuracy (Analog Output) | ±48 µA |
| Data Update Period | 2 ms |
| Output Step Response Time | 40 ms |
| Power Supply to Transmitter | 12 V DC ±10% (40 mA limit) / 24 V DC ±10% (30 mA limit) |
| Maximum Current Consumption | 300 mA (5 V DC), 400 mA (24 V DC) |
| External Connections | Pressure Clamp Terminal, KS Cable, MIL Connector Cable |
| Dimensions | 130 × 32.8 × 127.2 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals can the AAP849 module receive on its input channels?
A1: The AAP849 supports contact ON/OFF signals, voltage pulses, and current pulses on its input channels.
Q2: How many input and output channels are available on the AAP849?
A2: The module offers 8 pulse input channels and 8 analog output channels.
Q3: What is the output signal range of the AAP849?
A3: The output signal range is 4 to 20 mA DC for each analog output channel.
Q4: Is the AAP849 suitable for use in a dual-redundant configuration?
A4: Yes, the module can be used in a dual-redundant setup.
Q5: What are the selectable shunt resistor values for the pulse input?
A5: The selectable shunt resistance values are 200 Ω, 500 Ω, and 1000 Ω, including an option for no shunt.
Q6: What is the minimum input pulse width that the AAP849 can detect?
A6: The minimum detectable pulse width is 40 microseconds.
Q7: Can the AAP849 module power external transmitters?
A7: Yes, it provides 12 V DC (±10%) up to 40 mA or 24 V DC (±10%) up to 30 mA per channel.
Q8: What types of cable connections are supported by the AAP849?
A8: Supported connection methods include pressure clamp terminals, KS cable adapters, and MIL connectors.
