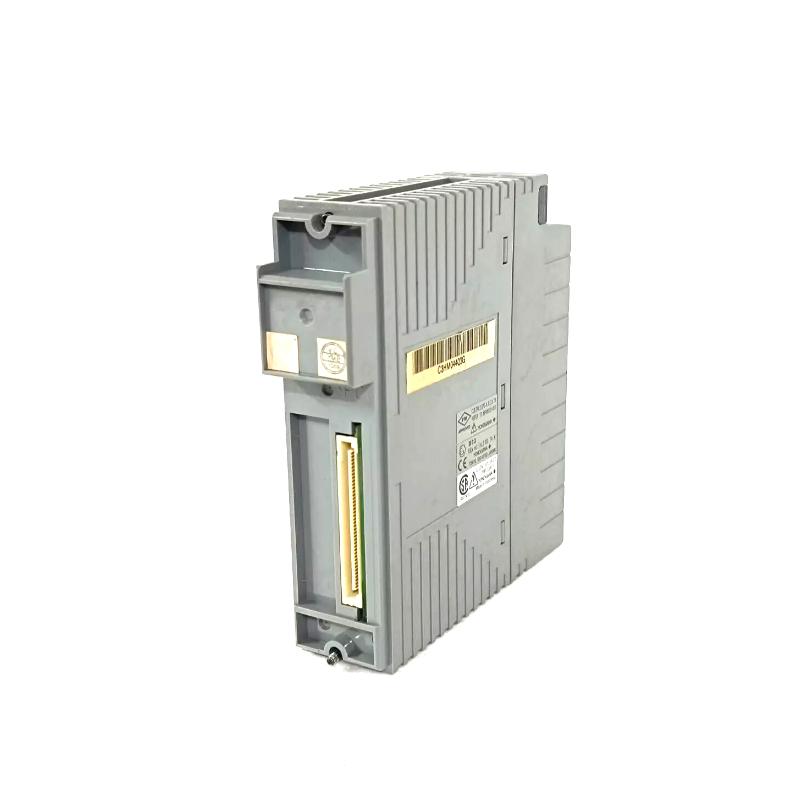

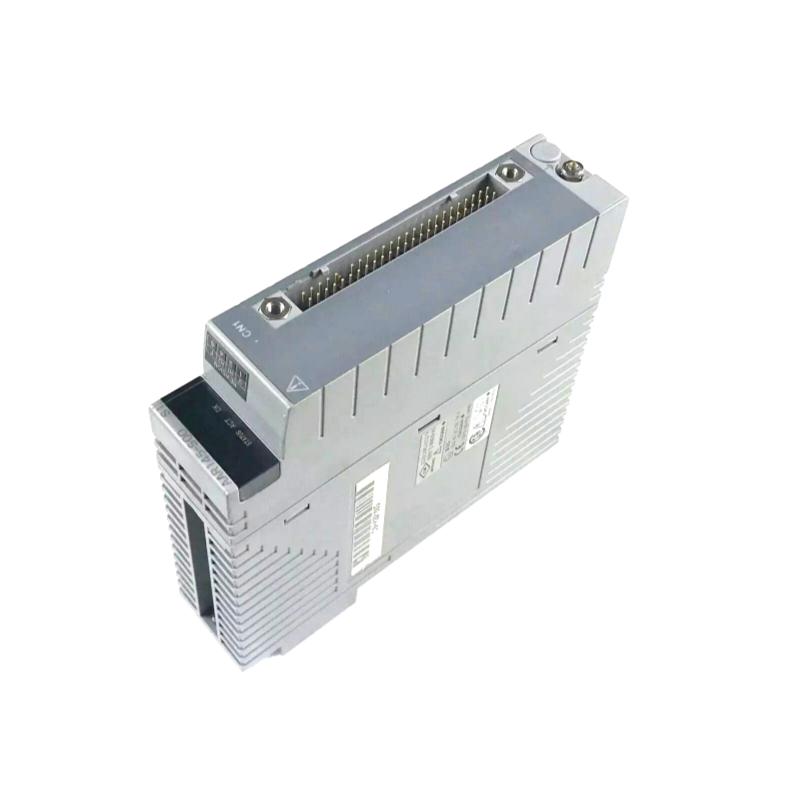

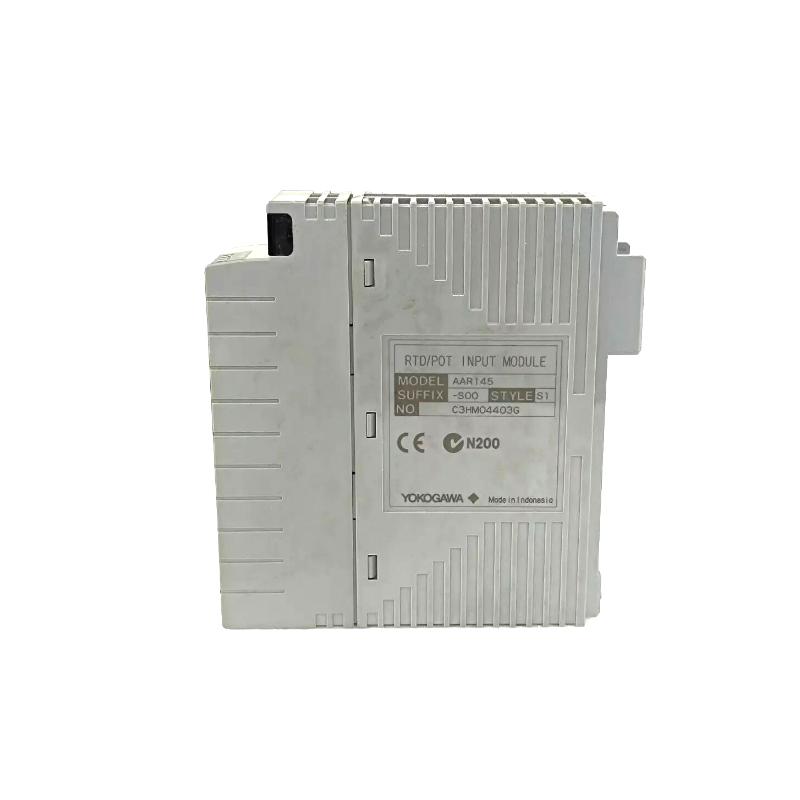

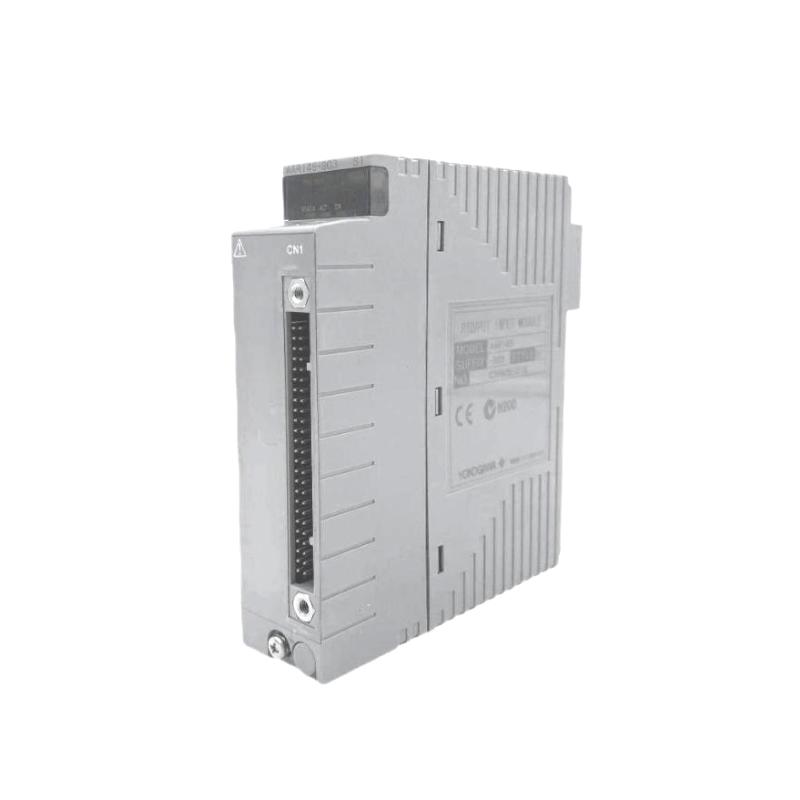

📗 Yokogawa AAR145 RTD/POT Input Module
Technical Specifications
| Item | Specification |
|---|---|
| Model | AAR145 |
| Number of Input Channels | 16 channels, isolated |
| Input Signal Type | RTD: Pt100 (3-wire) POT: Total resistance 100 Ω to 10 kΩ, span ≥50% |
| Allowable Input Voltage | ±5 V |
| Withstanding Voltage | 1500 V AC (system to input), 200 V AC (channel to channel), 1 min |
| Input Resistance (Power ON) | ≥ 1 MΩ |
| Input Resistance (Power OFF) | ≥ 1 MΩ |
| Accuracy | RTD: ±150 mΩ POT: ±0.2 %/FS |
| Allowable Wiring Resistance | RTD: ≤150 Ω per wire |
| Measurement Current | RTD: 1 mA |
| Data Update Period | 1 second |
| Burn-out Detection | Configurable (Enable/Disable), detection time: 60 seconds |
| Temperature Drift | RTD: ±0.3 Ω/10 °C POT: ±0.4 %/10 °C |
| Max Current Consumption | 350 mA (5 V DC) |
| Dimensions (W x H x D) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| External Connection | Dedicated cable (KS8/AKB335) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of sensors are supported by the AAR145 module?
A1: It supports RTD (e.g., Pt100) and potentiometer (POT) inputs, with independent configuration per channel.
Q2: Does the module offer electrical isolation?
A2: Yes, isolation exists between system and input, and also between channels.
Q3: How are RTD and POT inputs configured?
A3: Each channel can be independently configured as either RTD or POT input.
Q4: What is the maximum allowable wiring resistance?
A4: For RTD inputs, the wiring resistance must not exceed 150 Ω per wire.
Q5: What is the measurement accuracy of the module?
A5: The RTD input has an accuracy of ±150 mΩ, while POT input is ±0.2 % of full scale.
Q6: Is the module suitable for redundant system configurations?
A6: Yes, the AAR145 supports dual-redundant operation.
Q7: What is the data update period of the module?
A7: The data update period is 1 second, suitable for slowly changing signals like temperature.
Q8: Can the module be used in intrinsically safe zones?
A8: Yes, but only with an isolation barrier, not with a Zener barrier.
