Technical Specifications
| Item | Specification |
|---|---|

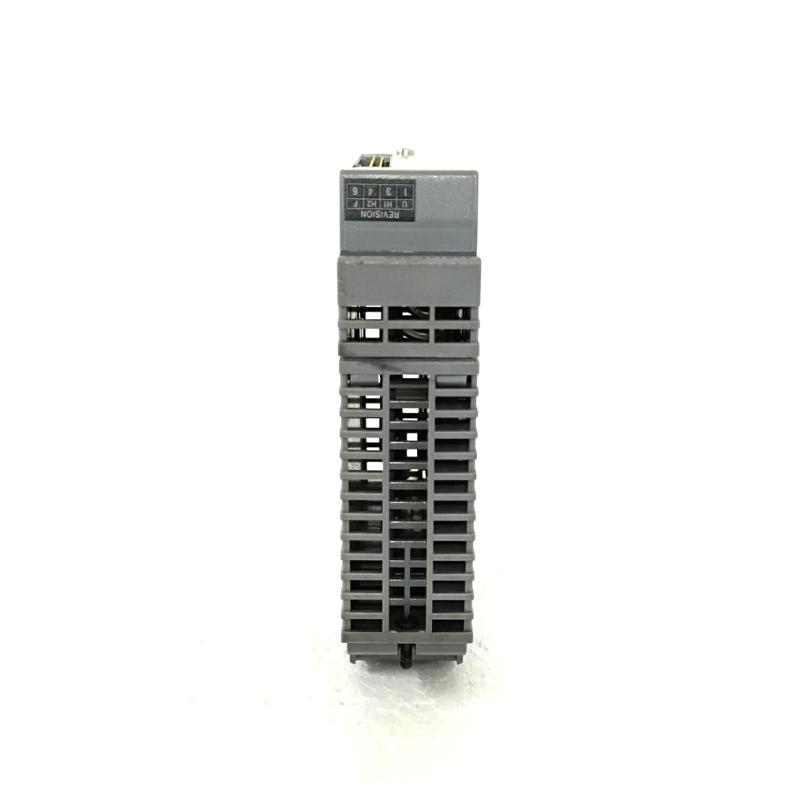

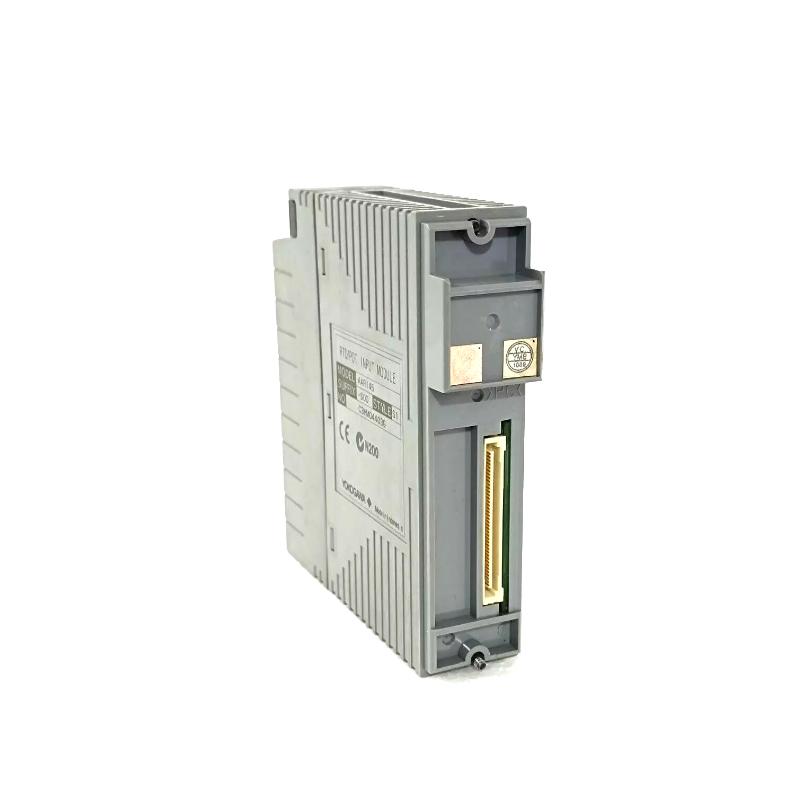

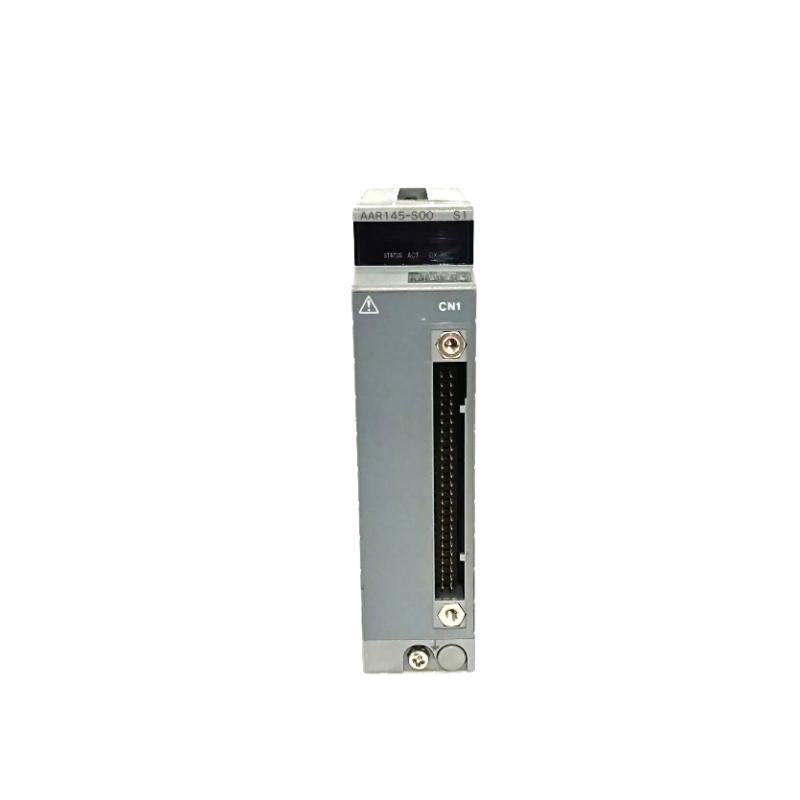

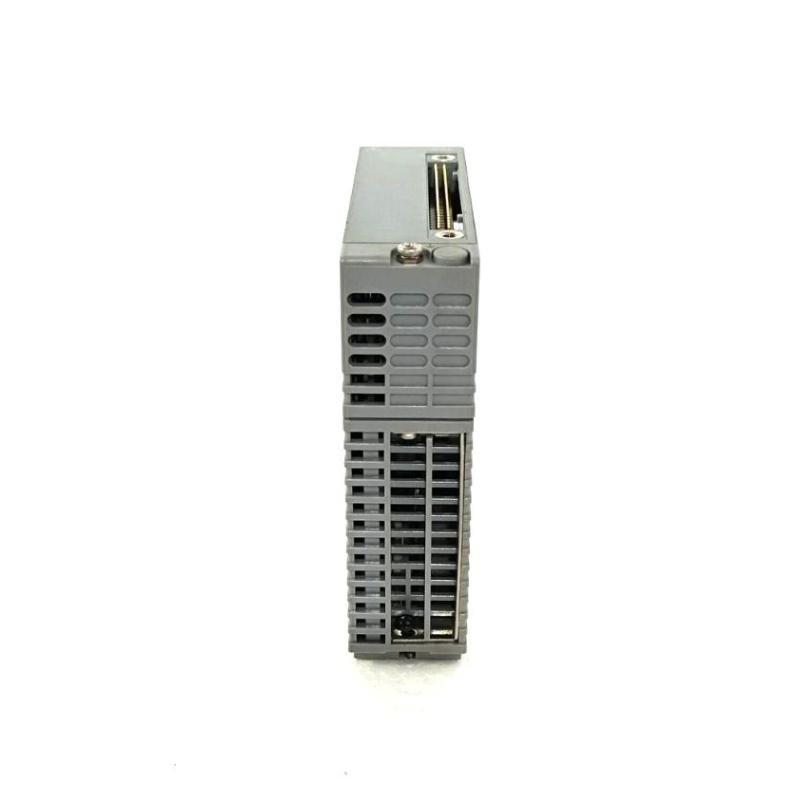

| Model | AAR145-S00 |
| Input Channels | 16 isolated channels |
| Input Signal | RTD: Pt100 (3-wire, JIS C1604:1997 / IEC751:1995) |
| POT: Total resistance 100 Ω to 10 kΩ; span ≥50% of total resistance | |
| Switching Input Signals | Individually selectable per channel (RTD/POT) |
| Allowable Input Voltage | ±5 V |
| Withstanding Voltage | Input-to-system: 500 V AC (single card: 1500 V AC), 1 minute |
| Between channels: 200 V AC, 1 minute | |
| Input Resistance (Power ON/OFF) | ≥1 MΩ |
| Accuracy | RTD: ±150 mΩ; POT: ±0.2% of full scale |
| Total Resistance (Source + Wiring) | RTD: ≤150 Ω per wire |
| Measurement Current | RTD: 1 mA |
| Data Update Period | 1 second |
| Burn-out Detection | Configurable per module; detection time: 60 s |
| Reference Junction Compensation | Not applicable for RTD/POT |
| Temperature Drift | RTD: ±0.3 Ω/10 °C; POT: ±0.4%/10 °C |
| Max Current Consumption | 350 mA (5 V DC) |
| External Connection | Dedicated cable (KS8 / AKB335) |
| Dimensions (H x D x W) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What type of sensors can be connected to the AAR145-S00?
A1: The module supports 3-wire RTDs (Pt100) and potentiometers with resistance between 100 Ω and 10 kΩ.
Q2: How many input channels are available on the AAR145-S00?
A2: It offers 16 isolated input channels.
Q3: Is it possible to configure RTD and POT on different channels?
A3: Yes, each of the 16 channels can be individually configured for RTD or POT input.
Q4: What is the data update rate for this module?
A4: The data is updated every 1 second.
Q5: What is the maximum input voltage the module can tolerate?
A5: The allowable input voltage is ±5 V.
Q6: What is the accuracy of the module for RTD and POT signals?
A6: Accuracy is ±150 mΩ for RTD and ±0.2% of full scale for POT.
Q7: Can this module detect sensor burnout?
A7: Yes, burnout detection is configurable and detection time is 60 seconds.
Q8: What are the physical dimensions and weight of the AAR145-S00?
A8: The module measures 130 x 127.2 x 32.8 mm and weighs approximately 0.3 kg.
