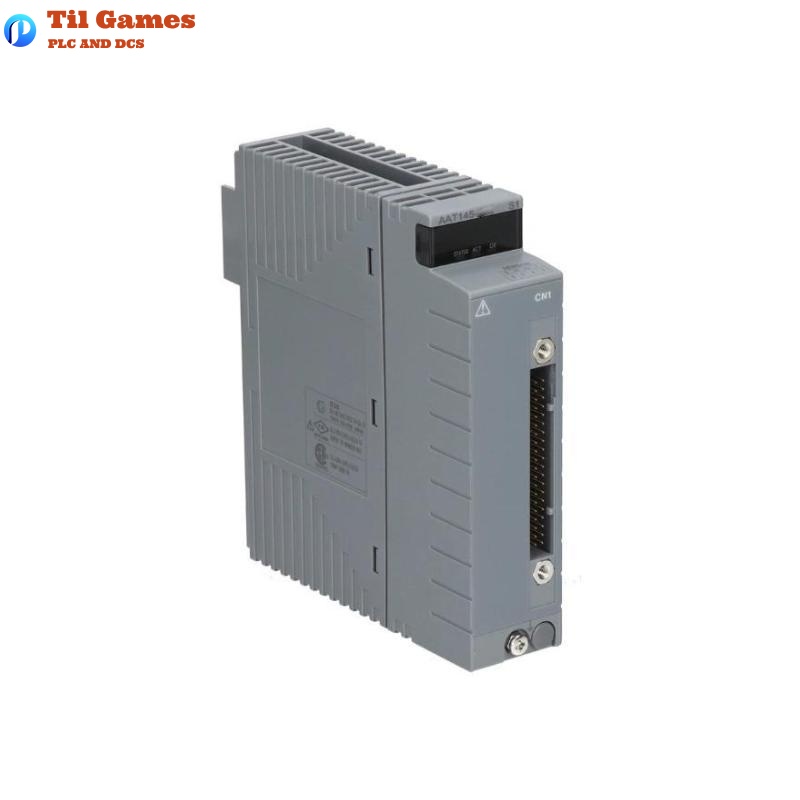

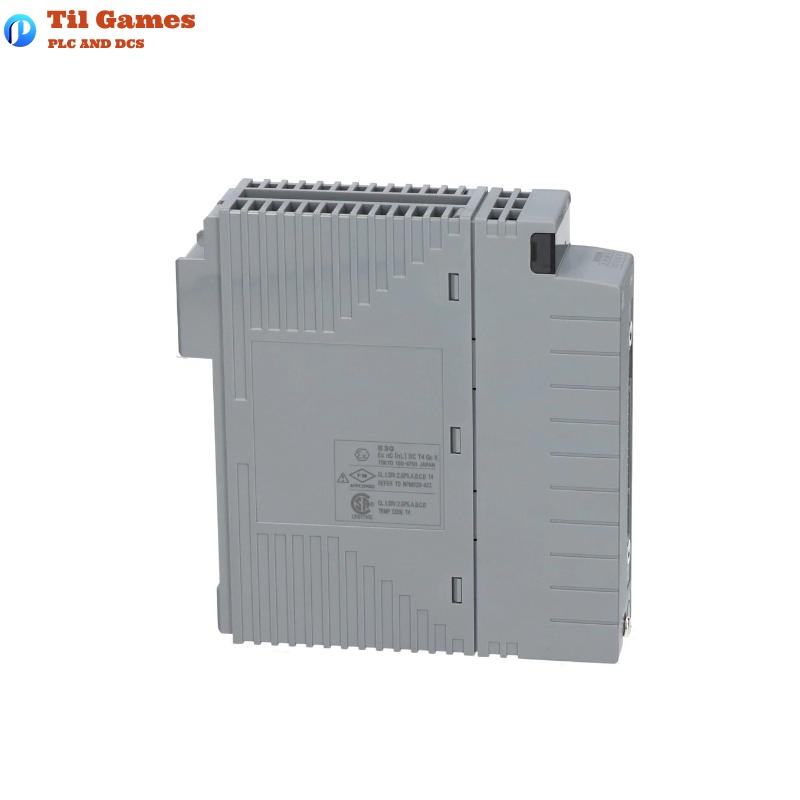

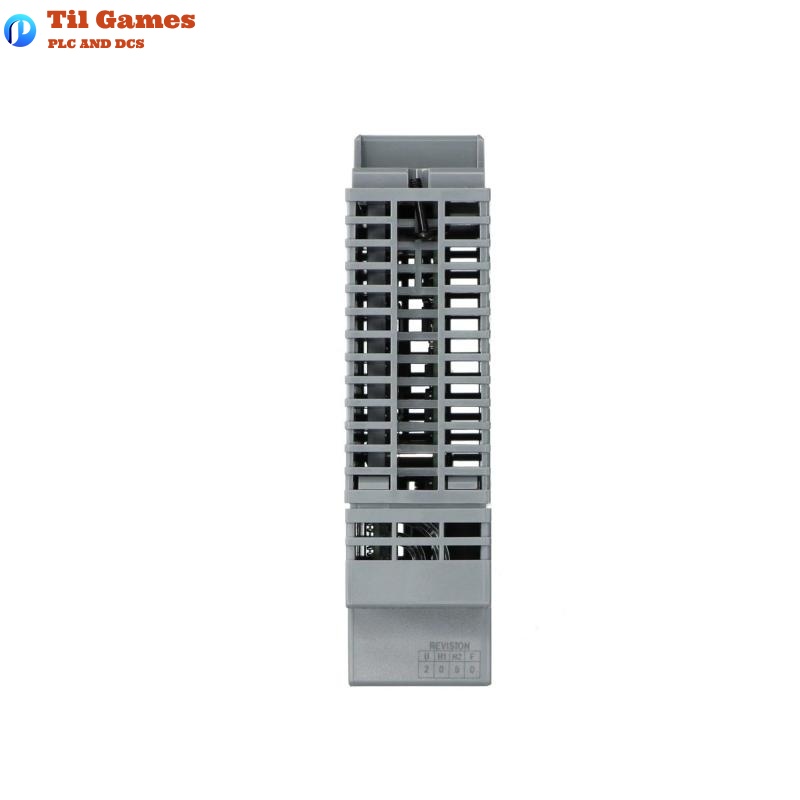

Yokogawa AAT145-S50 TC/RTD Input Module Technical Specifications
| Item | Specification |
|---|---|
| Model | AAT145-S50 |
| Number of Input Channels | 16 channels, isolated |
| Supported Signal Types | TC: Types J, K, E, B, R, S, T, N; mV: -100 to 150 mV, -20 to 80 mV |
| Allowable Input Voltage | ±5 V |
| Input Resistance (ON/OFF) | ≥1 MΩ (Power ON/OFF) |
| Accuracy | ±40 µV (TC/mV); RTD: ±150 mΩ; POT: ±0.2% FS |
| Reference Junction Accuracy | ±1 °C (depends on installation conditions) |
| Max Total Source+Wiring Resistance | ≤1000 Ω |
| Temperature Drift | TC: ±80 µV/10°C; RTD: ±0.3 Ω/10°C; POT: ±0.4%/10°C |
| Data Update Period | 1 second |
| Burn-out Detection | Configurable for all channels, detection time 60 s |
| Measurement Current | 1 mA (for RTD input) |
| Withstanding Voltage | Between input and system: 1500 V AC (1 min); Between channels: 200 V AC (1 min) |
| Max Current Consumption | 350 mA (5 V DC) |
| External Connection | Dedicated KS1 cable |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What thermocouple types are supported by AAT145-S50?
A1: It supports TC types J, K, E, B, R, S, T, and N per JIS C1602 and IEC584 standards.
Q2: Can different signal types be configured per channel?
A2: Yes, TC and mV signals can be individually set for each channel.
Q3: Are channels isolated from each other and from the system?
A3: Yes, the AAT145 provides full channel-to-channel and channel-to-system isolation.
Q4: Does it include reference junction compensation?
A4: Yes, with an accuracy of ±1 °C, varying by installation conditions.
Q5: Is sensor burn-out detection available?
A5: Yes, burn-out detection is configurable and has a detection time of 60 seconds.
Q6: Does the module support RTD inputs?
A6: Yes, Pt100 (3-wire type) RTDs are supported.
Q7: Can it accept potentiometer (POT) inputs?
A7: Yes, with total resistance between 100 Ω and 10 kΩ, and a span resistance ≥50% of total resistance.
Q8: What is the power supply requirement for the AAT145?
A8: 5 V DC with a maximum current consumption of 350 mA.
