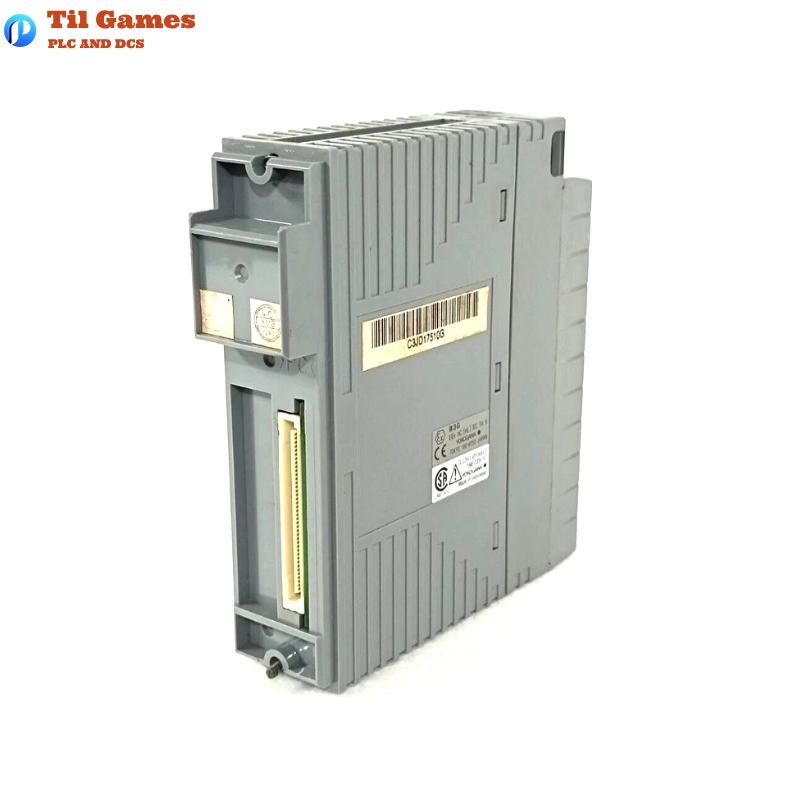

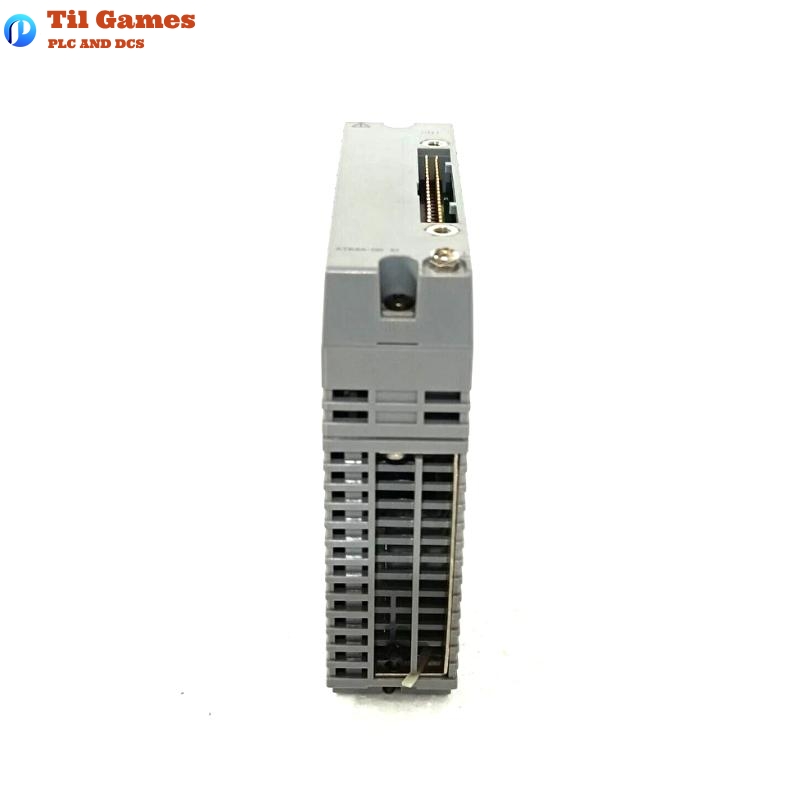

Technical Specifications of Yokogawa AAV544 Analog Output Module
| Specification | Details |
|---|---|
| Model | AAV544 |
| Number of Output Channels | 16, Isolated |
| Output Signal | -10 to +10 V |
| Allowable Load Resistance | 5 kΩ or larger |
| Accuracy | Larger of ±12 mV or ±0.3 % FS |
| Data Update Period | 10 ms |
| Output Step Response Time | 40 ms |
| Temperature Drift | Larger of ±0.1 %/10 °C or ±10 mV/10 °C |
| Maximum Current Consumption | 860 mA (5 V DC) |
| Weight | 0.2 kg |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
FAQ
FAQ for Yokogawa AAV544 Analog Output Module
Q1: What is the number of output channels for the AAV544 module?
A1: The AAV544 Analog Output Module provides 16 output channels.
Q2: What is the output signal range of the AAV544 module?
A2: The output signal range of the AAV544 module is from -10 to +10 V.
Q3: What is the allowable load resistance for the AAV544?
A3: The allowable load resistance for the AAV544 module is 5 kΩ or larger.
Q4: What is the accuracy of the AAV544 module?
A4: The accuracy of the AAV544 module is the larger of ±12 mV or ±0.3 % FS.
Q5: How fast is the data update period for the AAV544 module?
A5: The data update period for the AAV544 module is 10 ms.
Q6: What is the output step response time for the AAV544 module?
A6: The output step response time is 40 ms.
Q7: How much does the AAV544 module weigh?
A7: The weight of the AAV544 module is 0.2 kg.
Q8: What are the external connection options for the AAV544 module?
A8: The external connection options for the AAV544 module include pressure clamp terminal, KS cable, and MIL connector cable.
