Technical Specifications
| Parameter | Specification |
|---|---|

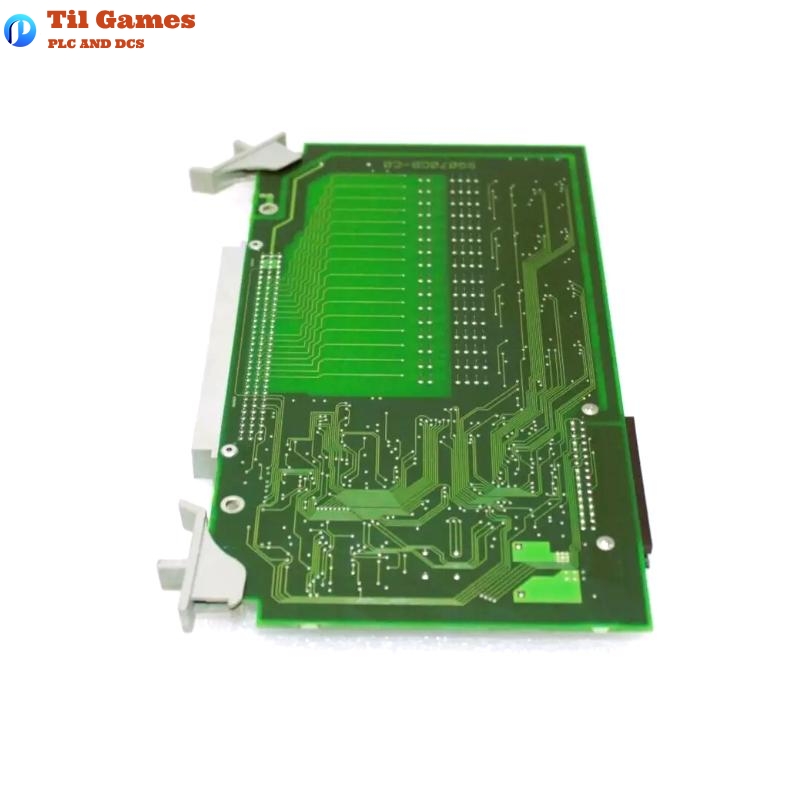

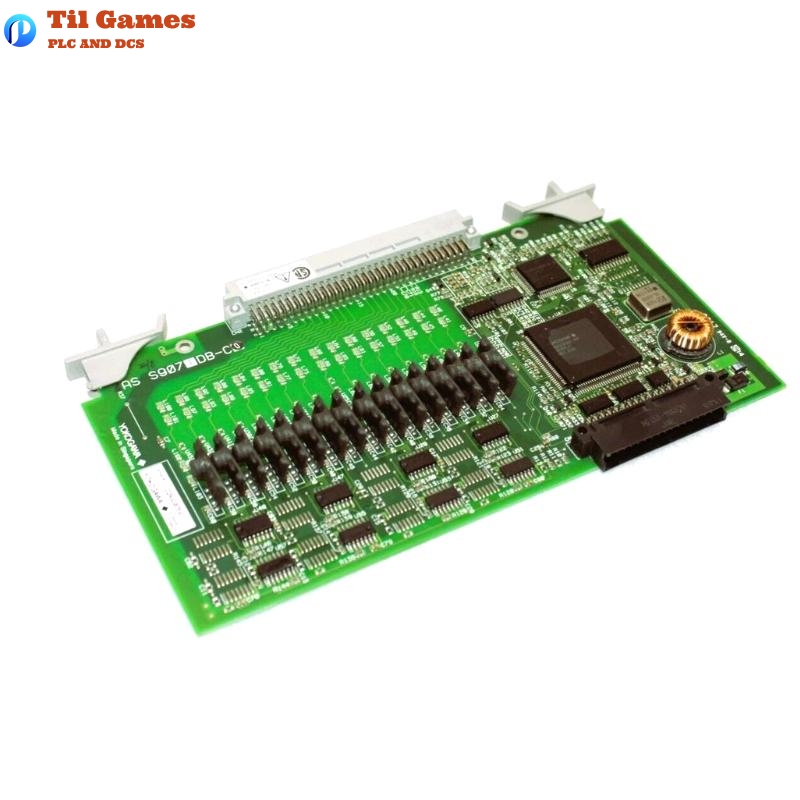

| Model | ADM11-S3 Contact Input Module |
| I/O Points | 16 points |
| Contact Rating | 5 V DC, 20 mA or more (external contact standard) |
| Pulse Width | 40 ms or more |
| Pulse Period | 10 Hz or less |
| Current Consumption | 600 mA or less (5.0 V DC) |
| Signal Insulation | Each point Common minus side, every 16 points |
| Mounting Method | Installed in the I/O module nest |
| Signal Connection | Connection to the I/O module nest terminal (M4 screw) |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 0.14 kg |
FAQ
FAQs
Q1: What is the input signal type for the ADM11-S3 module?
A1: The input signal is contact input, with an OFF signal resistance of 100 kΩ or more, and an ON signal resistance of 200 Ω or less.
Q2: What is the contact rating of the ADM11-S3 module?
A2: The contact rating is 5 V DC, 20 mA or more (external contact standard).
Q3: How do I mount the ADM11-S3 module?
A3: The ADM11-S3 module can be installed in the I/O module nest.
Q4: What is the pulse width of the ADM11-S3 module?
A4: The pulse width is 40 ms or more.
Q5: How is signal insulation handled in the ADM11-S3 module?
A5: The module has signal insulation for each point, with a common minus side for every 16 points.
Q6: What is the current consumption of the ADM11-S3 module?
A6: The current consumption is 600 mA or less at 5.0 V DC.
Q7: What cables are compatible with the ADM11-S3 module for signal connection?
A7: Compatible cables include KS2, KS3, KS9, and KS10 cables, which are connected to the I/O module nest terminal using M4 screws.
Q8: What is the weight and dimension of the ADM11-S3 module?
A8: The module weighs 0.14 kg and its dimensions are 125 x 130 x 248 mm.
