Technical Specifications
| Parameter | Description |
|---|---|

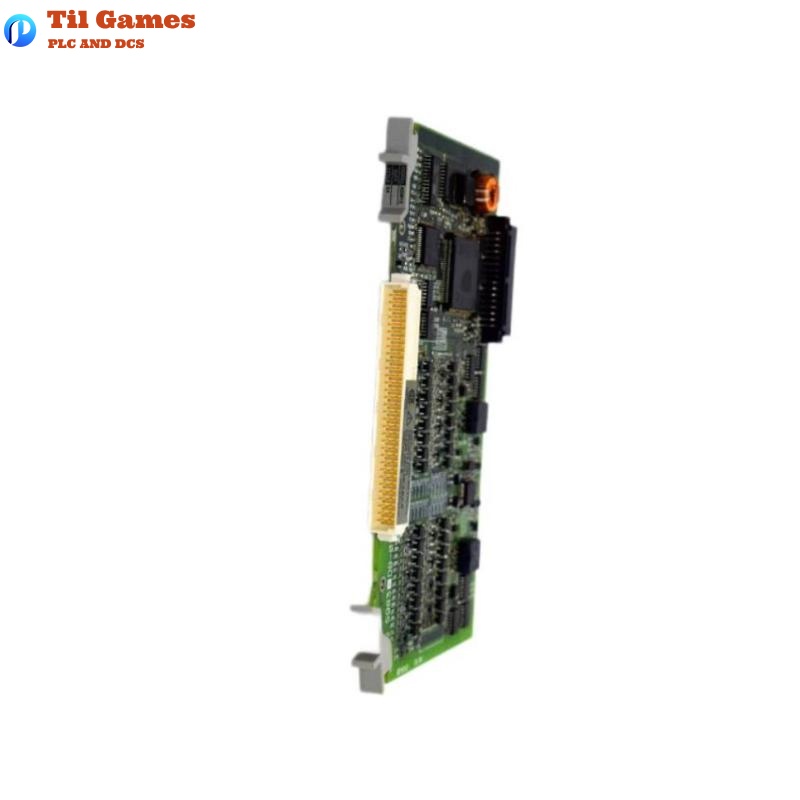

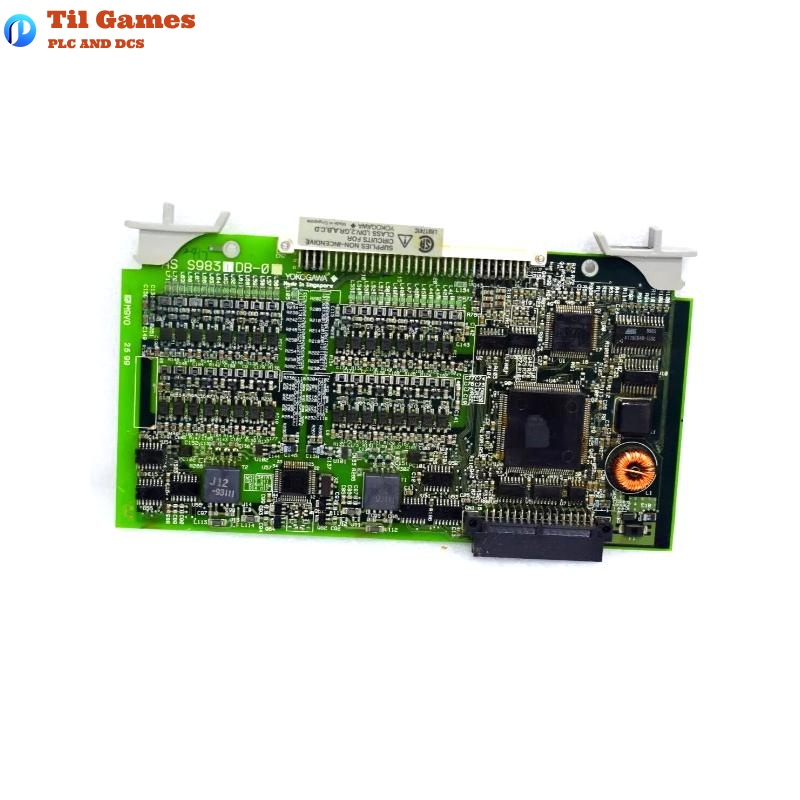

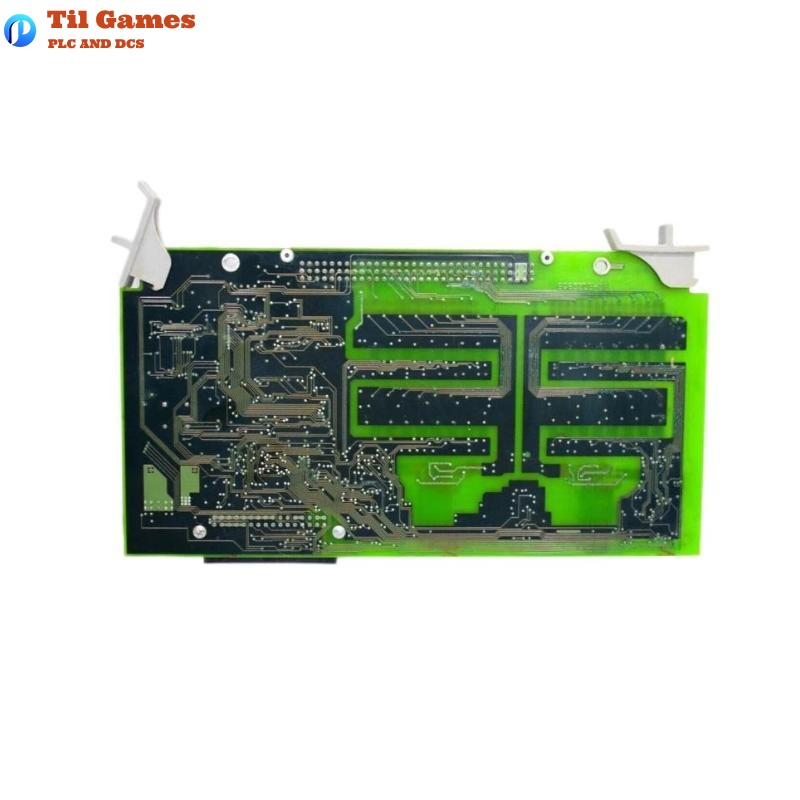

| Model Number | ADM12-S4 |
| Type | Contact Input Module |
| Input Channels | 32 channels |
| Connection Type | Terminal type |
| Mounting | Mounted in AMN21 I/O nest or compatible I/O extension cabinet |
| Electrical Isolation | Each input channel is isolated from system circuits |
| Input Signal Type | Dry contact input |
| Input Voltage Range | Typical 24 V DC |
| Power Supply | Supplied via node interface unit in system |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Installation Location | Inside control cabinet I/O nest or RIO extension |
| Dimensions (WxHxD) | 200 x 130 x 30 mm |
| Weight | 1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADM12-S4 module support?
A1: It supports 32 contact input channels.
Q2: Does the ADM12-S4 provide electrical isolation?
A2: Yes, each input channel is electrically isolated from system circuits for noise immunity.
Q3: What mounting options are available for ADM12-S4?
A3: It can be installed in AMN21 nests or compatible RIO I/O extension units.
Q4: What is the operating temperature range of this module?
A4: It operates between 0 and 50°C.
Q5: What is the typical input voltage required?
A5: The typical input voltage is 24 V DC.
Q6: What type of input signal does it accept?
A6: It accepts dry contact input signals.
Q7: What are the physical dimensions of ADM12-S4?
A7: The dimensions are 200 mm x 130 mm x 30 mm.
Q8: What is the weight of this module?
A8: The module weighs approximately 1 kg.
