Technical Specifications
| Parameter | Description |
|---|---|

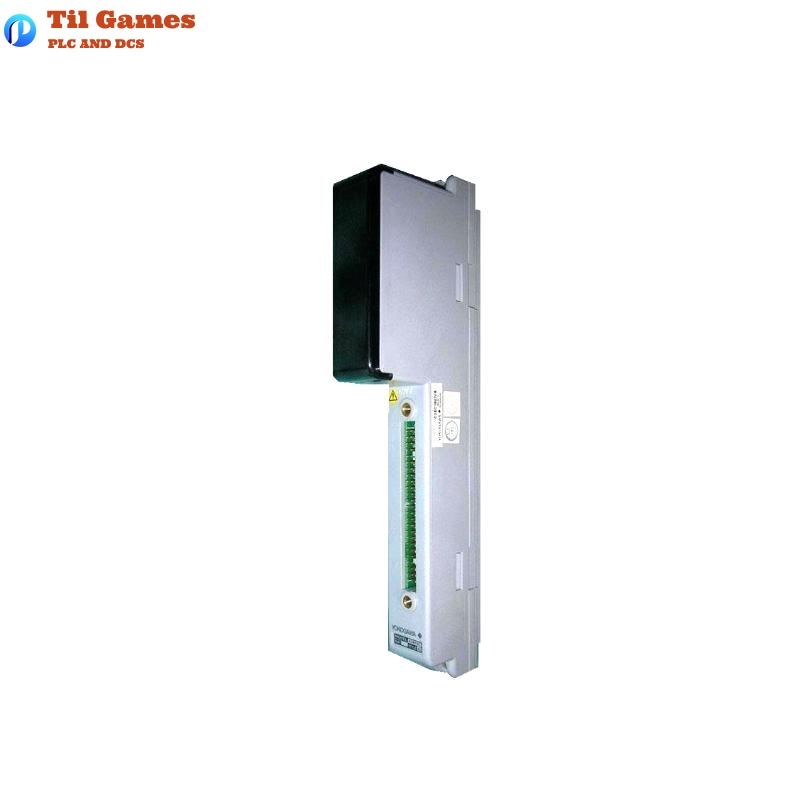

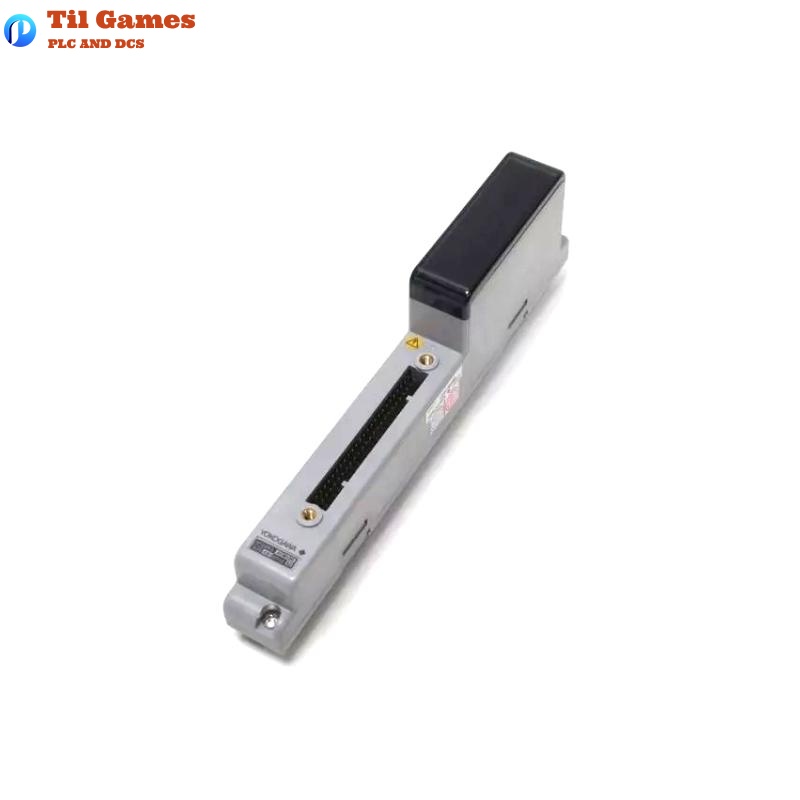

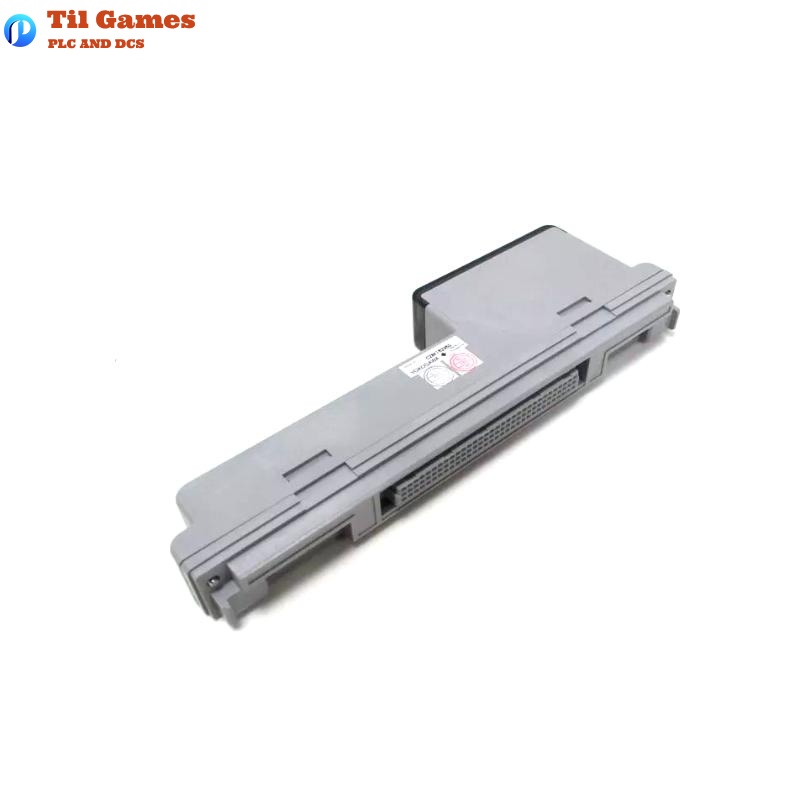

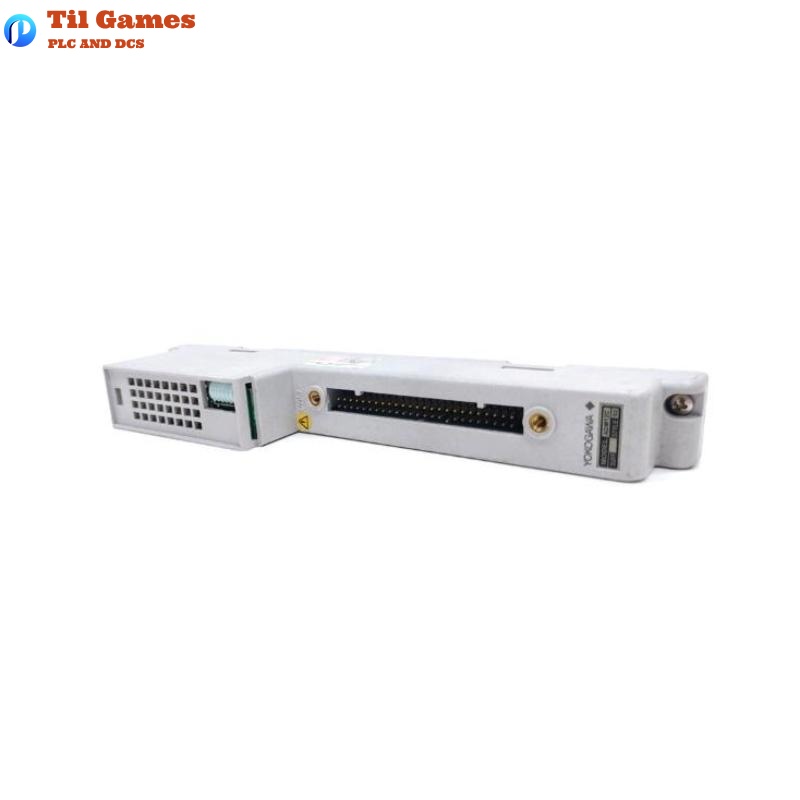

| Module Model | ADM12C |
| Type | Contact Input Module (Digital Input) |
| Number of Inputs | 32 points (connector type) |
| Input Method | Electrically isolated dry contact input |
| Input Voltage | Typically 24V DC (supplied externally) |
| Channel Type | Common ground |
| Connection Type | Connector-type terminal (for system cable interface) |
| Mounting Method | Installed on I/O nests (e.g., AMN32) |
| Applicable System | CENTUM CS, CS 1000/3000, CENTUM VP RIO System |
| Dimensions | 200 × 130 × 30 mm |
| Weight | 1 kg |
| Isolation | Isolated from logic circuits; no isolation between channels |
| Environmental | 0 – 50°C, 10 – 90% RH (non-condensing) |
| Installation Area | Mounted within Node Interface Unit (NIU) I/O area |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of module is the ADM12C?
A1: The ADM12C is a 32-point digital input module with a connector-type design for RIO systems.
Q2: Which systems is ADM12C compatible with?
A2: It is compatible with CENTUM CS, CS 1000/3000, and CENTUM VP RIO systems.
Q3: What kind of input signals does it accept?
A3: It accepts dry contact input signals, typically powered by a 24V DC source.
Q4: Does the module provide channel-to-channel isolation?
A4: No, there is no channel-to-channel isolation, but channels are isolated from the logic circuit.
Q5: What connection type does ADM12C use?
A5: It uses connector-type terminals compatible with system cabling.
Q6: What are its dimensions and weight?
A6: The module measures 200 x 130 x 30 mm and weighs 1 kg.
Q7: What environmental conditions can it operate in?
A7: It can operate in environments from 0 to 50°C and 10 to 90% RH (non-condensing).
Q8: Where is the module typically installed in the system?
A8: It is typically installed inside the Node Interface Unit (NIU) in the I/O nest section.
