Technical Specifications
| Parameter | Description |
|---|---|

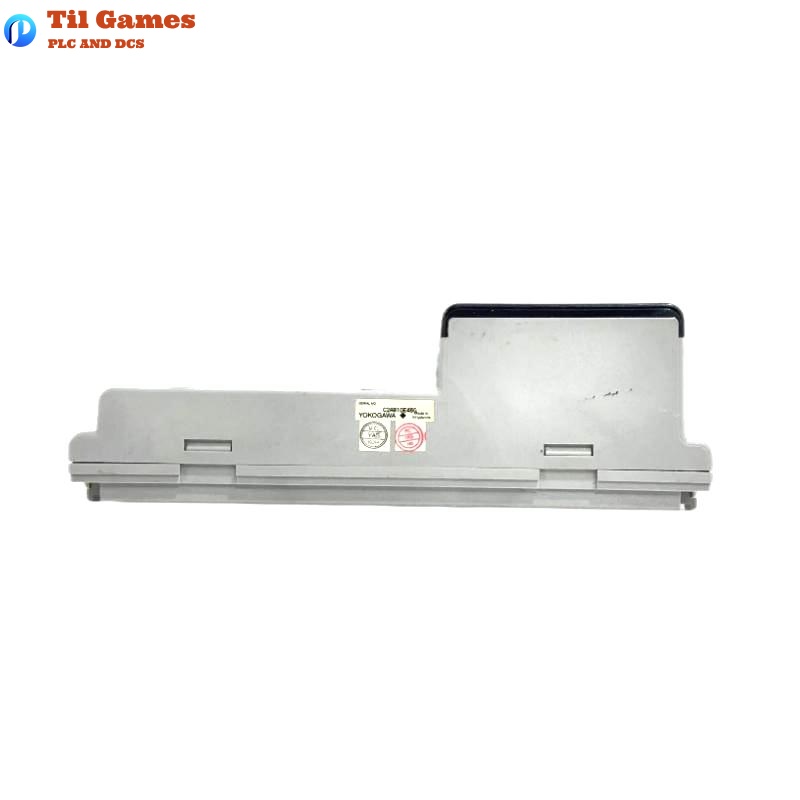

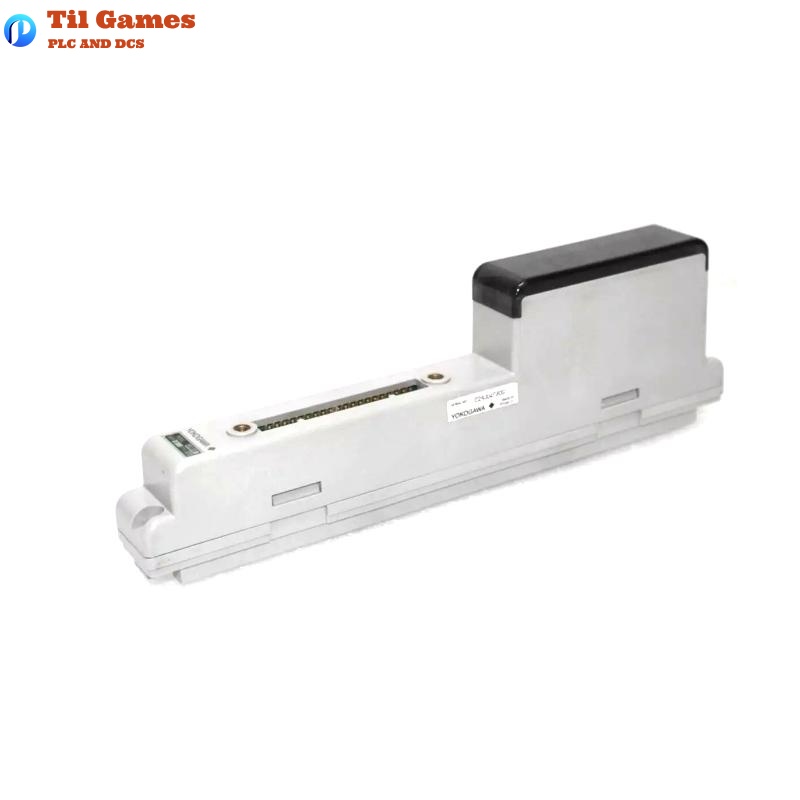

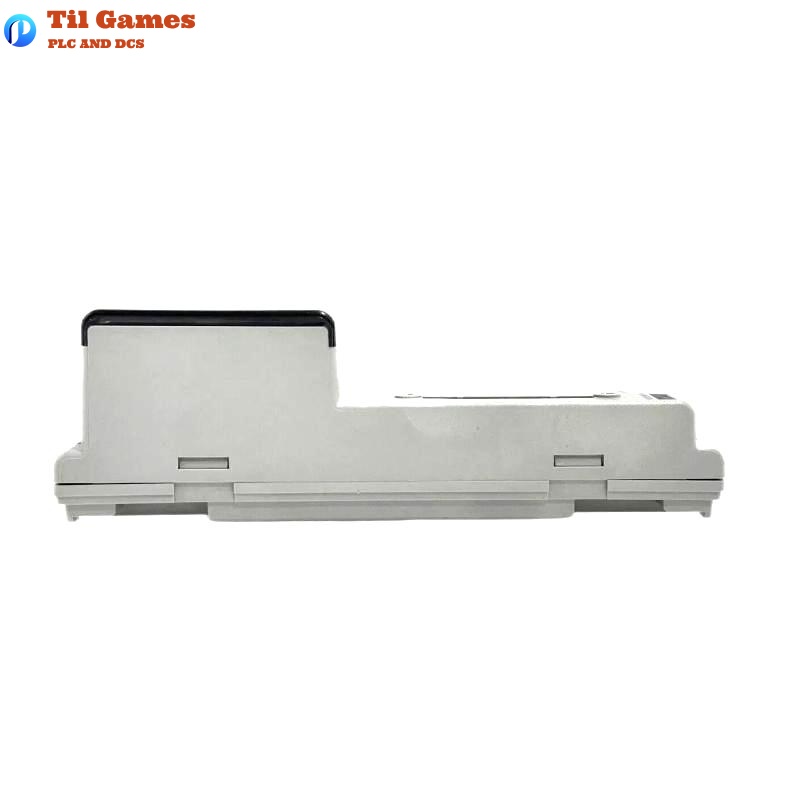

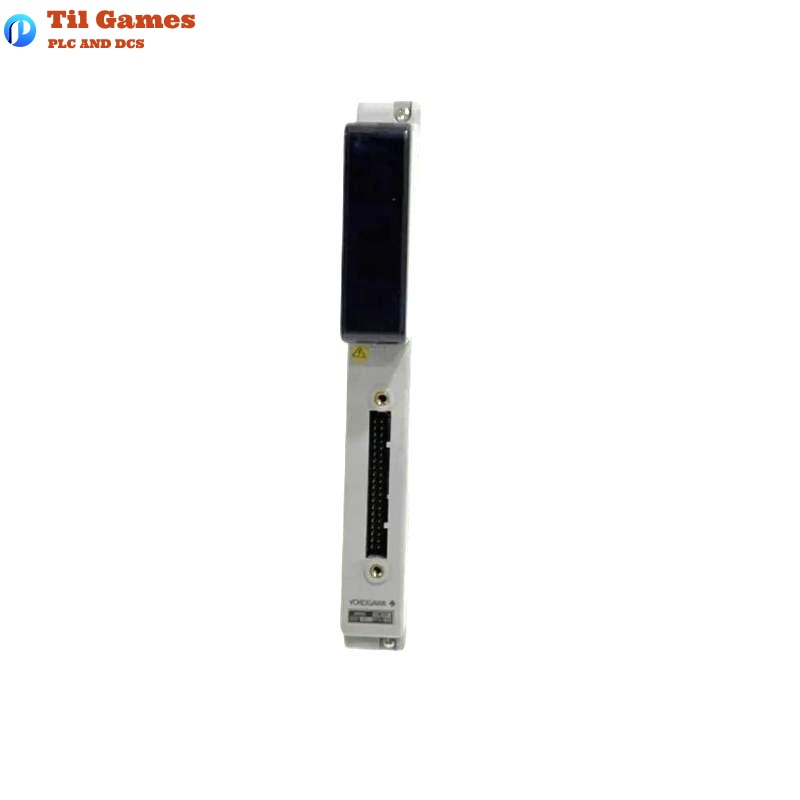

| Model Number | ADM51C |
| Function | Contact Output Module (16 points, connector type) |
| Output Channels | 16 points |
| Output Type | Dry contact (transistor output) |
| Interface Type | Connector type |
| Rated Load Voltage | 24 V DC |
| Maximum Load Current | 0.5 A per channel |
| Isolation | Channel-to-system isolation; no isolation between channels |
| Mounting Method | Mounted on AMN32 connector-type I/O nest |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| System Compatibility | CENTUM CS, CENTUM CS 1000/3000, CENTUM VP |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is the ADM51C module compatible with?
A1: The ADM51C is compatible with Yokogawa’s CENTUM CS, CENTUM CS 1000/3000, and CENTUM VP systems.
Q2: How many output points are available on the ADM51C?
A2: The module provides 16 transistor-based contact output points.
Q3: What type of output does the ADM51C provide?
A3: It provides dry contact outputs using transistor switching.
Q4: What is the maximum load current supported per channel?
A4: Each output channel can handle a maximum current of 0.5 A.
Q5: Is there isolation between output channels?
A5: No, there is no isolation between channels. However, the output section is isolated from the system.
Q6: What type of mounting is required for the ADM51C module?
A6: The module must be installed on an AMN32 connector-type I/O nest.
Q7: What are the environmental conditions for operation?
A7: The module operates in temperatures ranging from 0°C to 50°C.
Q8: What are the physical dimensions and weight of the ADM51C?
A8: It measures 125 x 130 x 248 mm and weighs 2 kg.
