Technical Specifications
| Parameter | Specification |
|---|---|

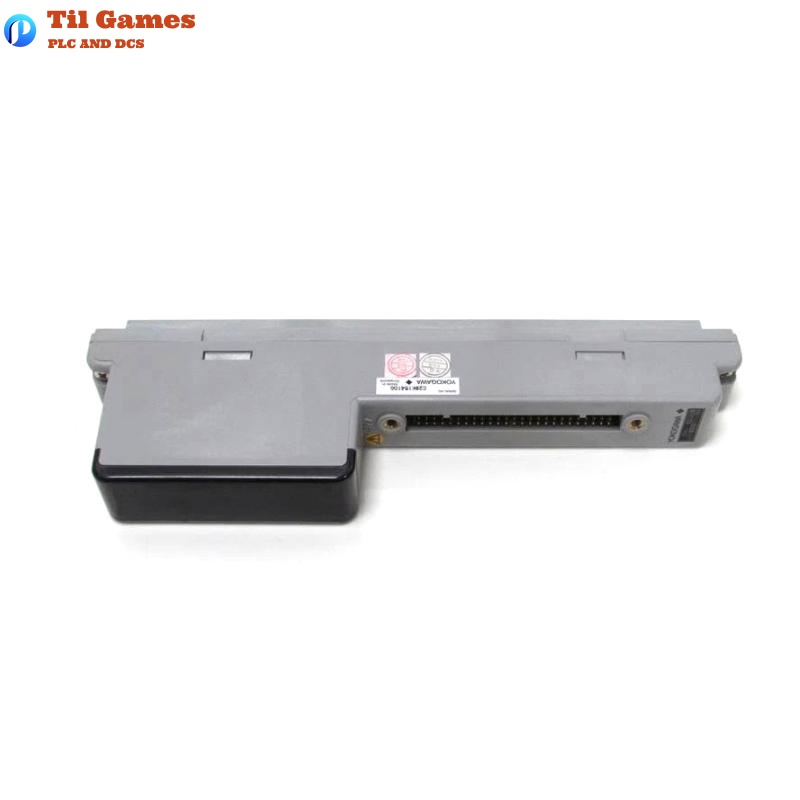

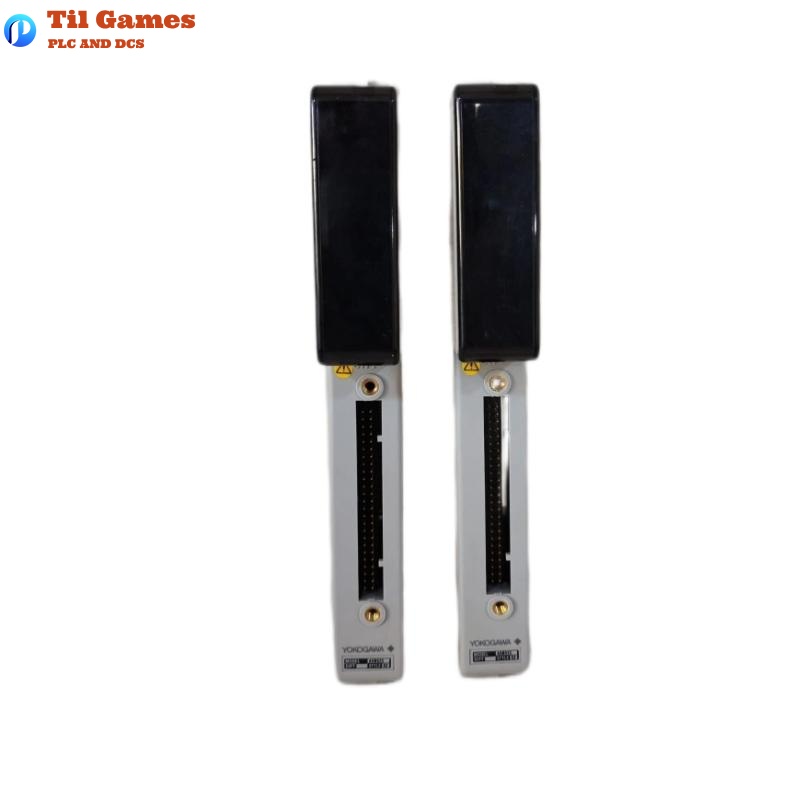

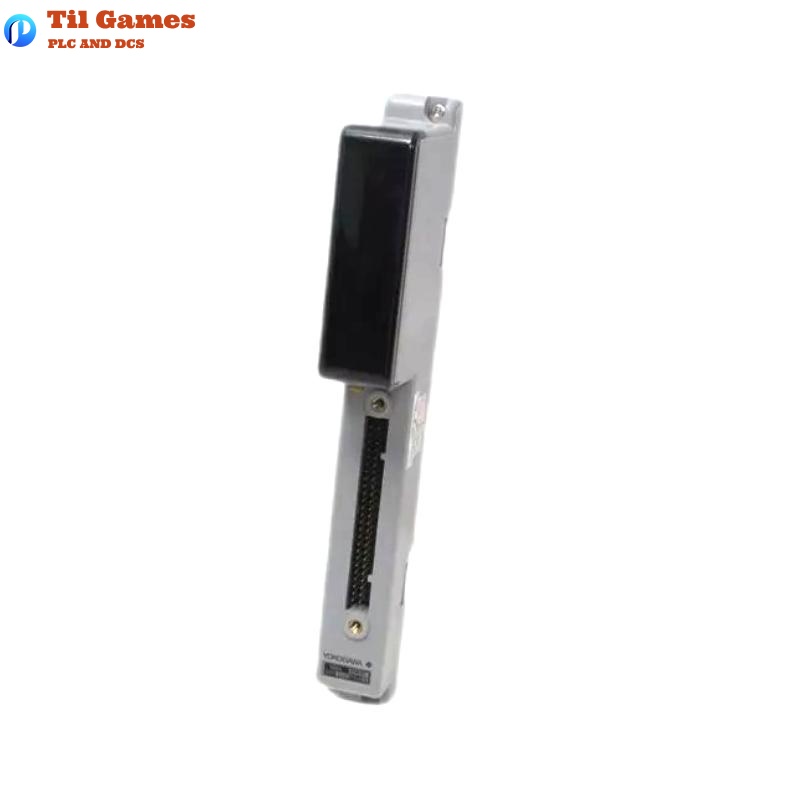

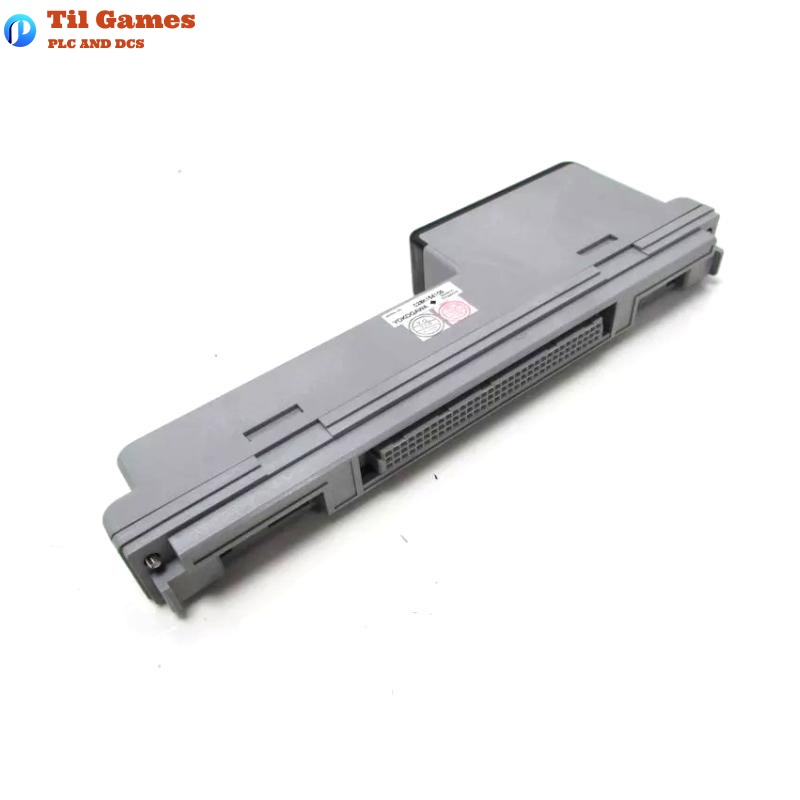

| Model | ADM52C-2 |
| Module Type | Contact Output Module |
| Output Type | Relay Contact Output (Dry contact) |
| Number of Channels | 16 channels |
| Contact Type | SPST (Form A), Normally Open |
| Rated Load | 2 A at 30 V DC / 0.5 A at 125 V AC |
| Contact Resistance | 50 mΩ max (initial) |
| Minimum Load | 1 mA at 5 V DC |
| Dielectric Strength | 1500 V AC (1 minute) between contacts and system |
| Insulation Resistance | ≥100 MΩ at 500 V DC |
| Operating Voltage Range | 24 V DC (supplied from base unit) |
| Power Consumption | Approx. 2 W |
| Status Indication | LED per channel |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W×H×D) | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output contacts does the ADM52C-2 use?
A1: It uses relay SPST (Form A) normally open dry contact outputs.
Q2: How many output channels does the ADM52C-2 provide?
A2: It provides 16 independent output channels.
Q3: What is the rated load per contact channel?
A3: Each contact is rated for 2 A at 30 V DC or 0.5 A at 125 V AC.
Q4: Is the ADM52C-2 compatible with inductive loads?
A4: Yes, but external protection (such as flyback diodes) is recommended for inductive loads.
Q5: How is the module powered?
A5: The module is powered by a 24 V DC supply from the base unit.
Q6: Does the module provide channel status indicators?
A6: Yes, each channel is equipped with an LED indicator.
Q7: What is the minimum detectable load?
A7: The minimum recommended load is 1 mA at 5 V DC.
Q8: What is the dielectric strength of the ADM52C-2?
A8: The dielectric strength is 1500 V AC between contacts and system ground for 1 minute.
