Technical Specifications
| Parameter | Specification |
|---|---|

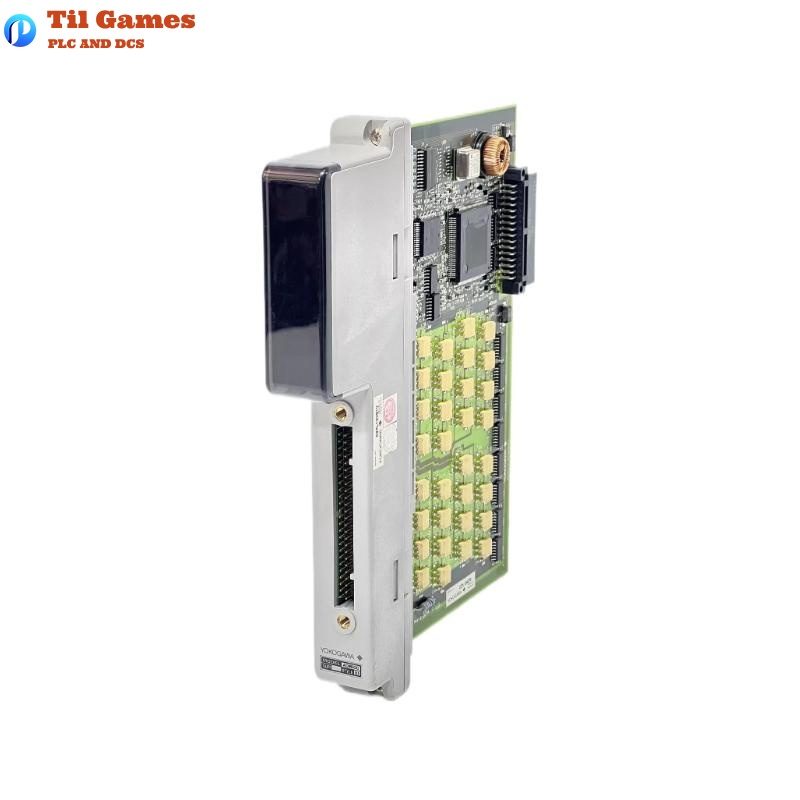

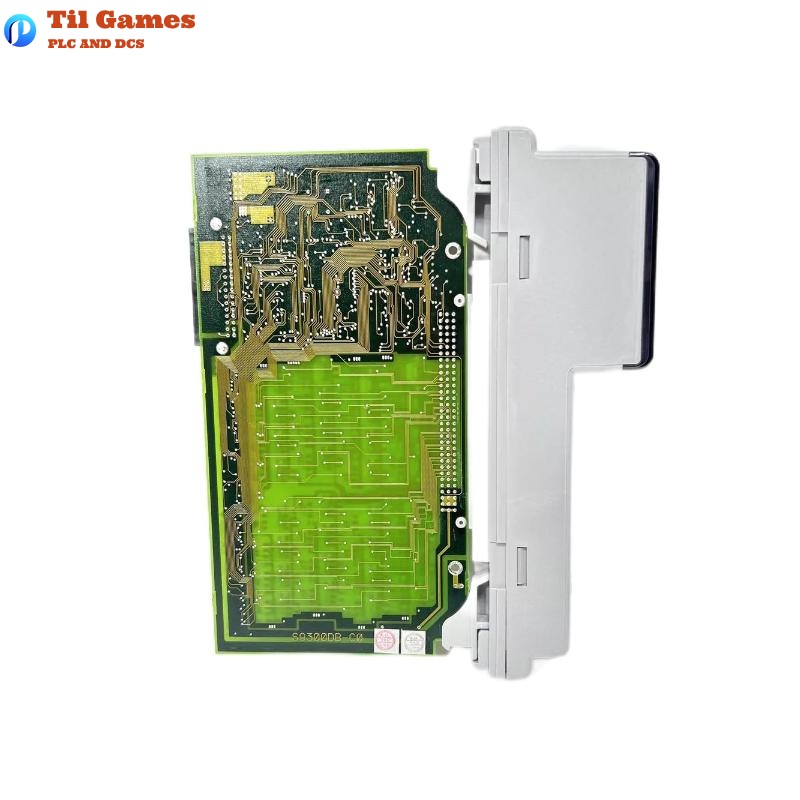

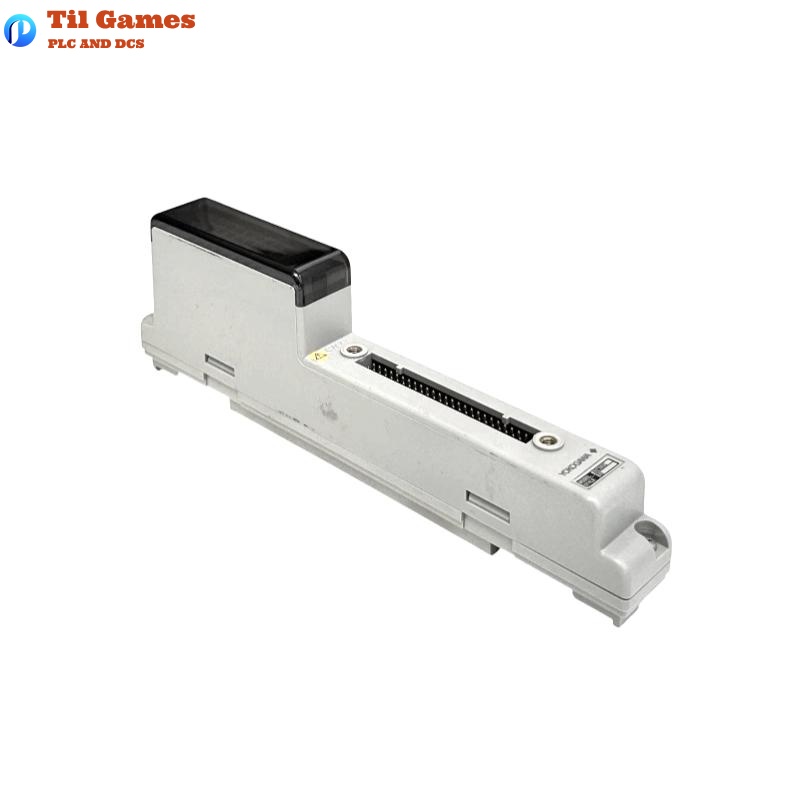

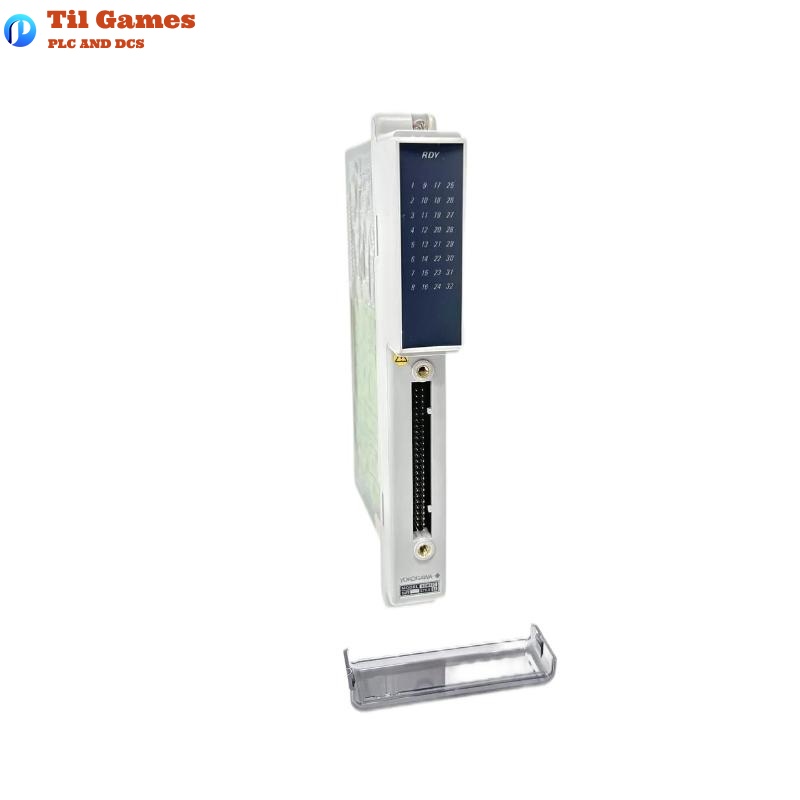

| Model | ADM52C-S2 |
| Output Type | Contact (Relay) Output |
| Number of Output Channels | 16 channels |
| Contact Type | SPST (Normally Open) |
| Rated Contact Voltage | 30 V DC / 250 V AC |
| Rated Contact Current | 2 A max |
| Isolation | Relay contact isolated from system and channels |
| Output ON Delay | ≤ 5 ms |
| Output OFF Delay | ≤ 5 ms |
| Internal Power Supply | 24 V DC |
| Installation | Mounted on A2BA3D nest or N-IO base plate |
| Communication | N-ESB Bus via NIU |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output does the ADM52C-S2 module support?
A1: The module supports dry contact relay outputs, SPST type.
Q2: How many output channels are available on the ADM52C-S2?
A2: It has 16 individual output channels.
Q3: What is the maximum current the contact can handle?
A3: Each contact can handle up to 2 A.
Q4: Is the contact output isolated?
A4: Yes, all contact outputs are isolated from each other and from the internal system.
Q5: What is the output switching speed?
A5: Both ON and OFF delay times are within 5 milliseconds.
Q6: Can this module be used with HART communication?
A6: No, the ADM52C-S2 is a relay output module and does not support HART.
Q7: What is the operating voltage of the internal circuit?
A7: The internal power supply operates at 24 V DC.
Q8: What type of mounting is required for this module?
A8: It is designed to be mounted on the A2BA3D nest or a compatible N-IO base plate.
