Technical Specifications
| Parameter | Specification |
|---|---|

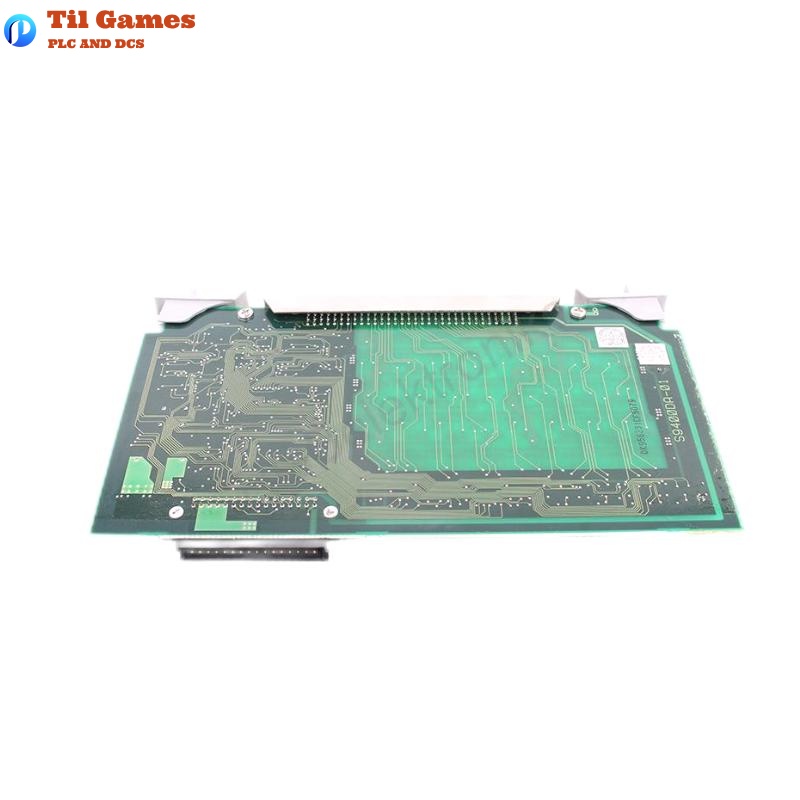

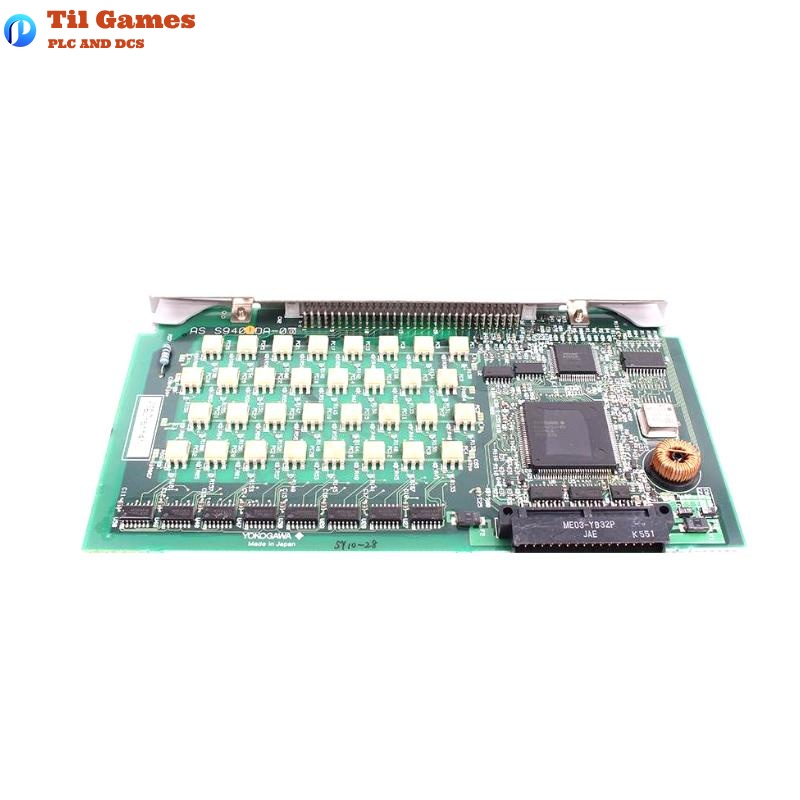

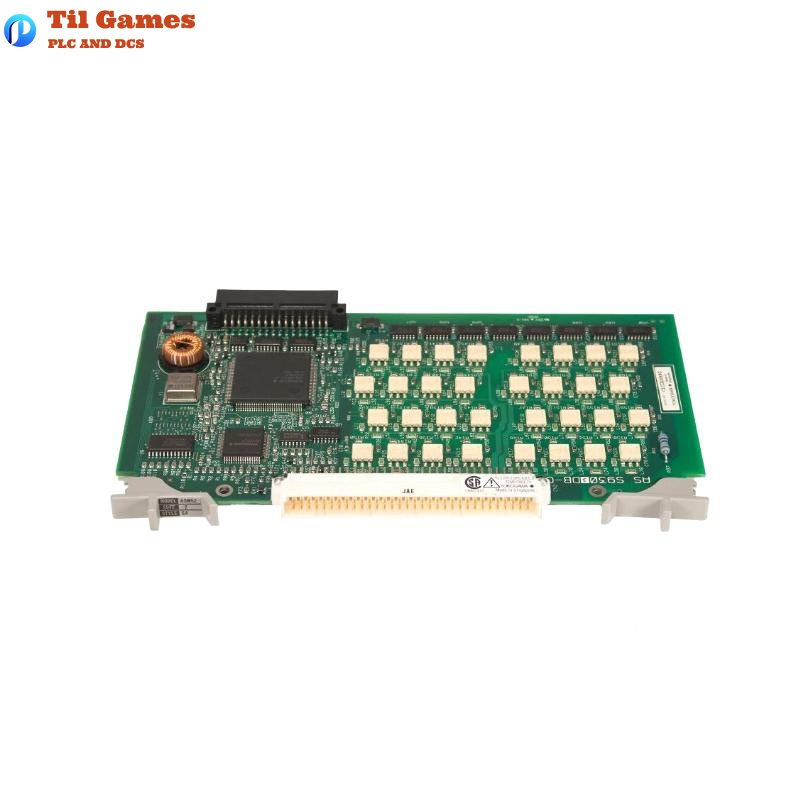

| Model | ADM52T Contact Output Module |
| Output Type | Contact output (Dry Contact) |
| Number of Channels | 16 channels |
| Contact Type | Mechanical relay contact |
| Contact Rating | 30 V DC / 2 A or 250 V AC / 2 A |
| Insulation Resistance | ≥100 MΩ (500 V DC) |
| Dielectric Strength | 1500 V AC (between contact and ground for 1 min) |
| Contact Life (Mechanical) | 20 million operations or more |
| Contact Life (Electrical) | 200,000 operations (rated load) |
| Power Supply | 24 V DC (from baseplate) |
| Mounting Method | Mounted on baseplate (via connector) |
| External Interface | Terminal block (M4 screw or ELCO type) |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the main function of the ADM52T Contact Output Module?
A1: It serves as a relay output interface for sending contact signals to field devices such as alarm indicators or interlock relays.
Q2: How many output channels does the module support?
A2: The ADM52T supports 16 independent contact output channels.
Q3: What type of load can the contacts handle?
A3: Each contact can handle up to 2 A at 30 V DC or 250 V AC.
Q4: Is the output isolated from the system side?
A4: Yes, it provides 1500 V AC isolation between contacts and ground for one minute.
Q5: Can the module be hot-swapped?
A5: No, the module must be removed or installed with the system powered down.
Q6: What kind of terminal block is used for wiring?
A6: It uses either M4 screw terminals or ELCO connectors depending on configuration.
Q7: How long do the relay contacts last?
A7: Mechanically, over 20 million operations; electrically, about 200,000 operations under rated conditions.
Q8: Is there any specific requirement for the mounting orientation?
A8: It should be mounted vertically on the baseplate with appropriate ventilation space.
