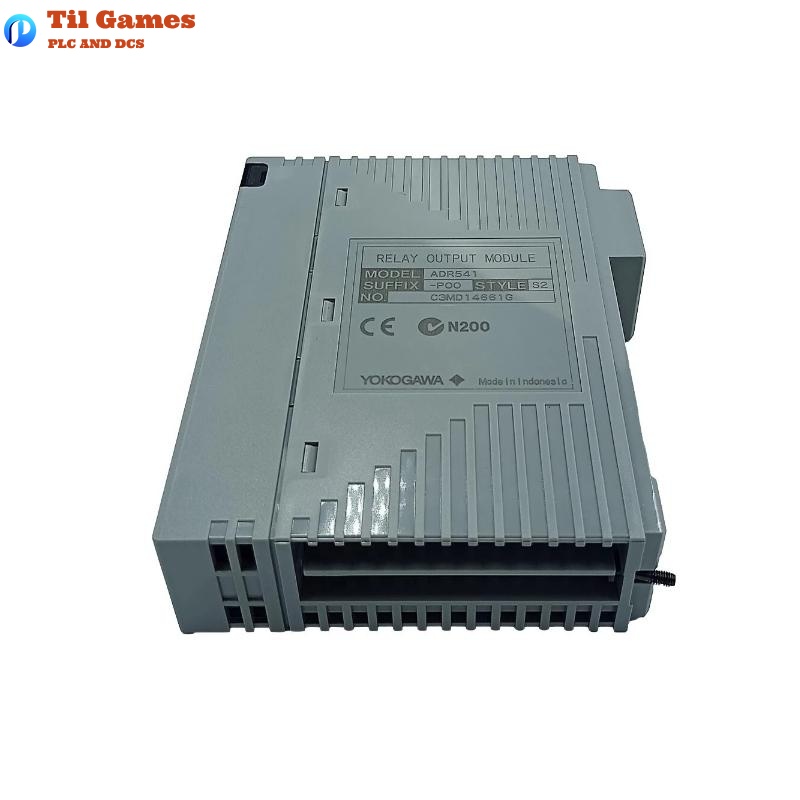

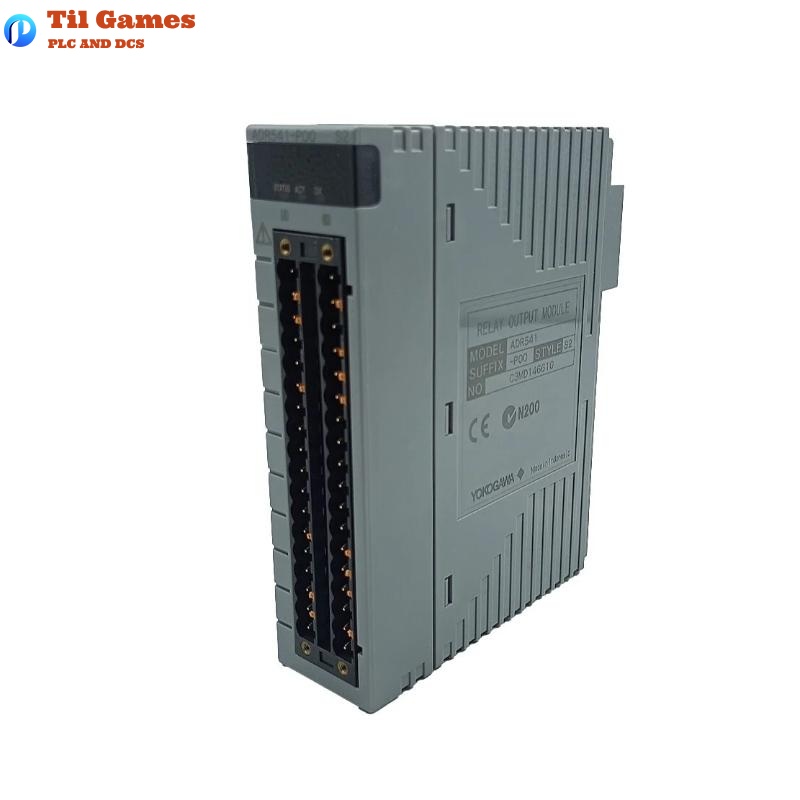

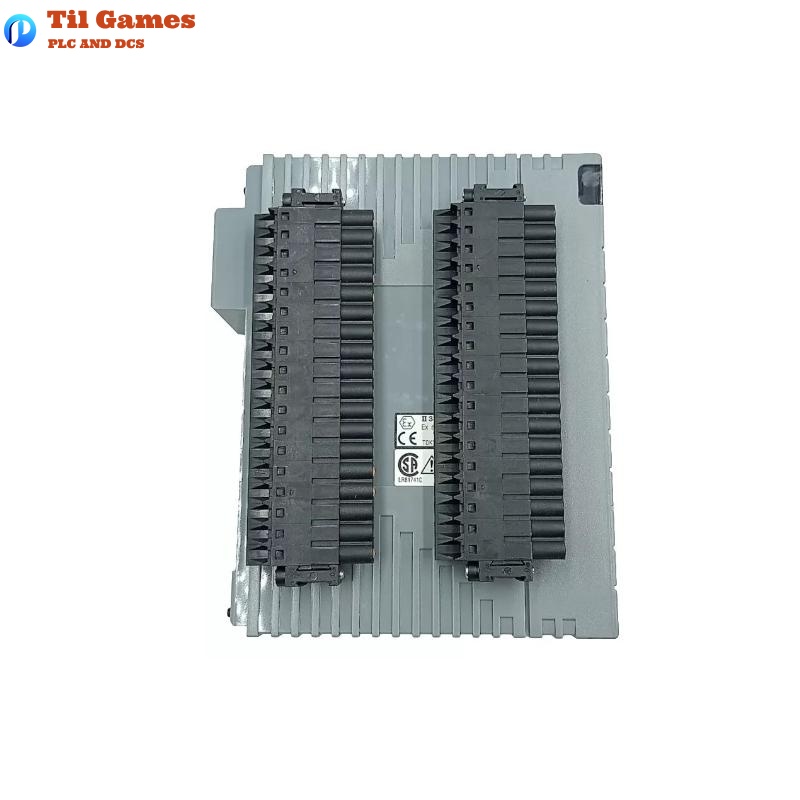

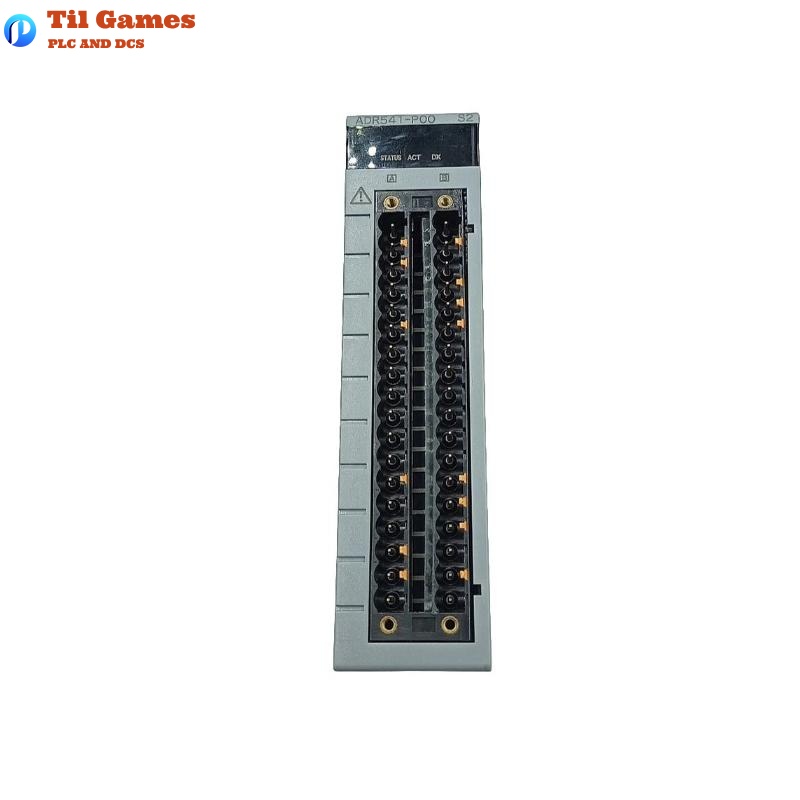

Yokogawa ADR541-P00 Relay Output Module Technical Specifications
| Item | Specification |
|---|---|
| Module Name | ADR541-P00 Relay Output Module |
| Output Channels | 16 channels (relay contact output) |
| Output Type | Relay dry contact output, electrically isolated |
| Rated Output Voltage | 24 to 110 V DC / 100 to 240 V AC |
| Contact Capacity | 2 A @ 250 V AC / 2 A @ 30 V DC (resistive load) |
| Electrical Isolation | All channels isolated from system |
| Mounting Method | DIN rail or plug-in mounting |
| Wiring Method | Pressure clamp terminal or MIL connector |
| Operating Temperature | 0 to 50°C |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Module Dimensions | 130 × 32.8 × 107.5 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of load is supported by the ADR541-P00?
A1: It supports resistive loads rated at 2 A (250 V AC or 30 V DC).
Q2: Is the output active or passive?
A2: The module provides passive dry contact relay outputs.
Q3: Are all output channels electrically isolated from each other?
A3: Yes, all channels are electrically isolated for improved reliability.
Q4: Does the ADR541-P00 support hot-swapping?
A4: No, hot-swapping is not supported. Module replacement must be done with power off.
Q5: Does the module include built-in short circuit protection?
A5: No internal short circuit protection is included. External protection is required.
Q6: Can inductive loads be connected to this module?
A6: Inductive loads are allowed but require surge suppressors to protect relay contacts.
Q7: What types of terminal blocks are compatible?
A7: Compatible with pressure clamp terminals, KS cable adapters, and MIL connectors.
Q8: Is this module suitable for use in Safety Instrumented Systems (SIS)?
A8: This is a standard output module and is not SIL-certified. It is not recommended for use in SIS.
