Technical Specifications
| Parameter | Specification |
|---|---|

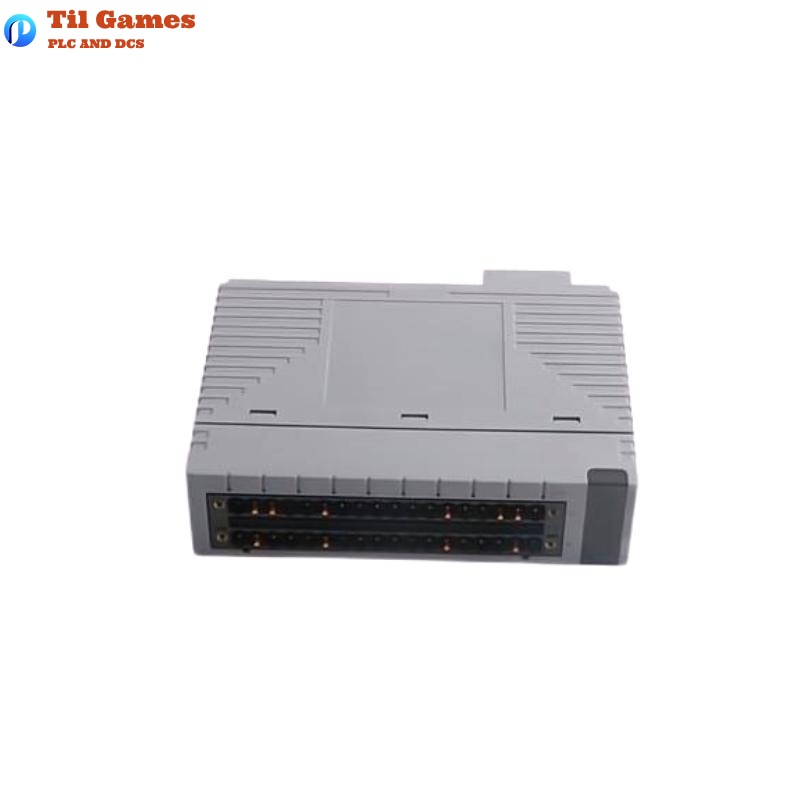

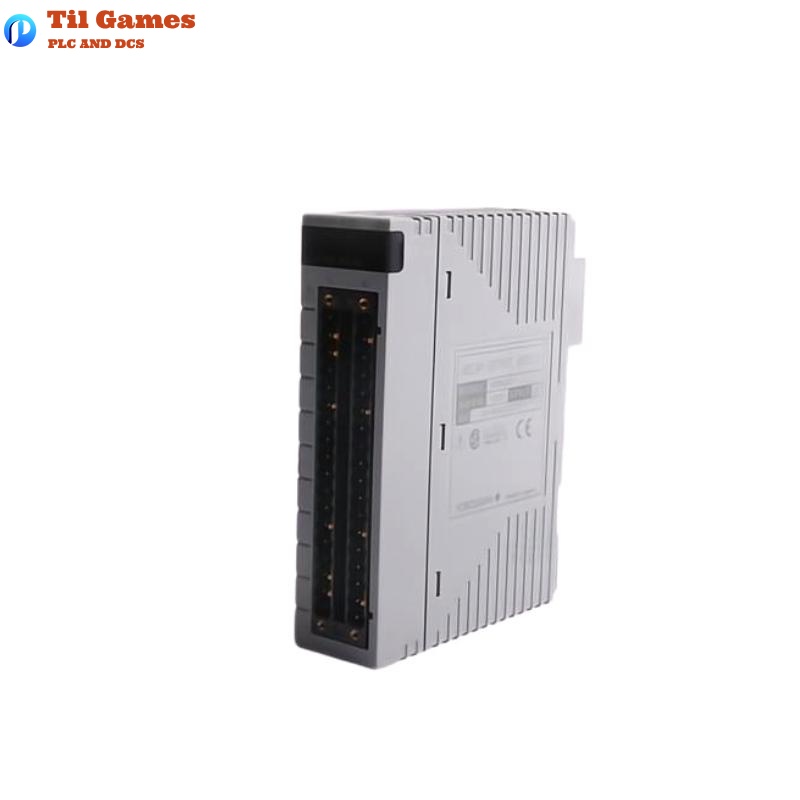

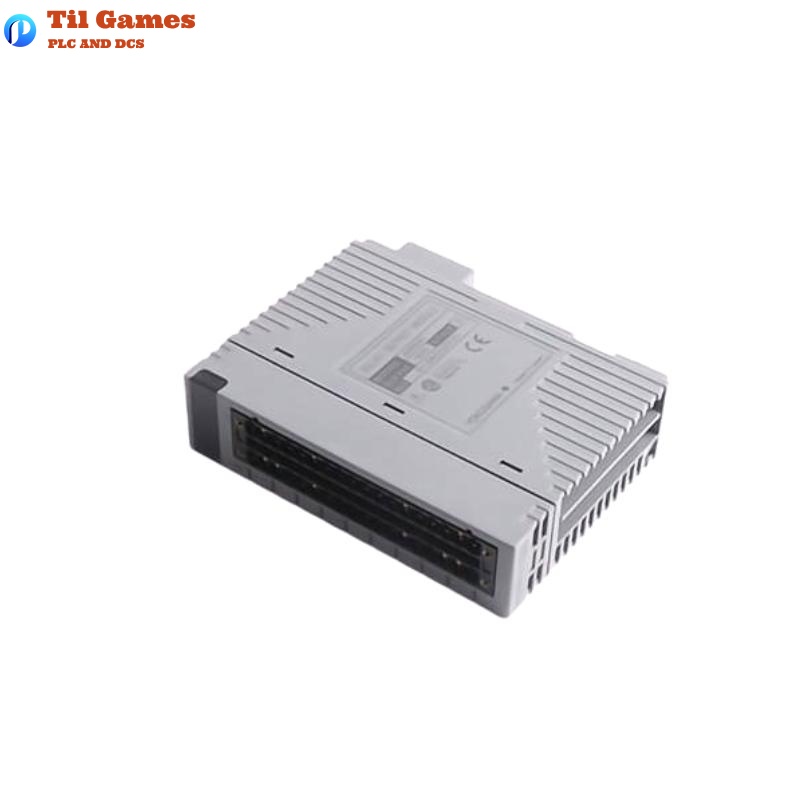

| Model | ADR541-P10 |
| Type | Relay Output Module |
| Channels | 16 channels |
| Output Type | Relay contact (Form A) |
| Rated Voltage Range | 24 to 110 V DC / 100 to 240 V AC |
| Isolation | Channel-to-channel and channel-to-ground isolated |
| External Power Supply | Not required |
| Contact Load (Resistive) | 2 A at 30 V DC / 0.5 A at 240 V AC |
| Switching Capacity | 60 W (DC) / 120 VA (AC) |
| Contact Life (Mechanical) | Approx. 10,000,000 operations |
| Contact Life (Electrical) | Approx. 100,000 operations (resistive load) |
| Mounting | Baseplate mounted |
| Terminal Connection | Pressure clamp terminal |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 5 to 95% RH (non-condensing) |
| Dimensions | 130 × 32.8 × 107.5 mm |
| Weight | 0.3 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What type of output does the ADR541-P10 module provide?
A1: It provides relay contact output (Form A), suitable for both AC and DC loads.
Q2: How many output channels does the module support?
A2: The ADR541-P10 supports 16 isolated relay output channels.
Q3: What is the maximum switching capacity per channel?
A3: Each relay can switch up to 60 W (DC) or 120 VA (AC) with a maximum current of 2 A at 30 V DC.
Q4: Does the module require an external power supply?
A4: No, the ADR541-P10 does not require an external power supply for relay operation.
Q5: Is there electrical isolation between channels?
A5: Yes, the module provides channel-to-channel and channel-to-ground isolation.
Q6: What is the mechanical life expectancy of the relay contacts?
A6: The mechanical life is approximately 10 million operations.
Q7: Can the ADR541-P10 be used in high humidity environments?
A7: Yes, it can operate in environments with 5 to 95% relative humidity (non-condensing).
Q8: What type of terminal connection does it use?
A8: It uses pressure clamp terminals for field wiring.
