Technical Specifications
| Parameter | Specification |
|---|---|

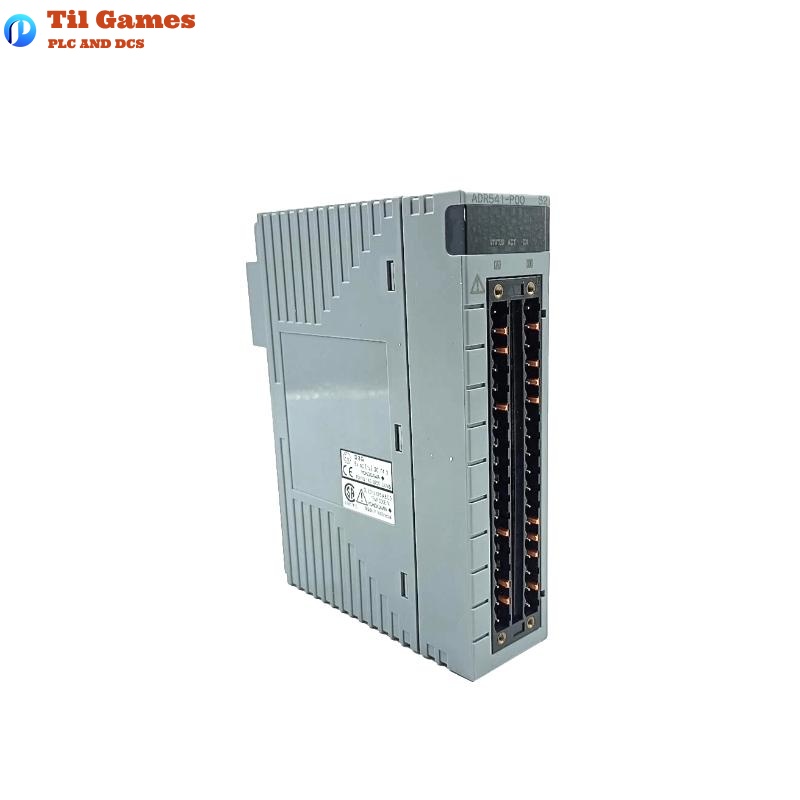

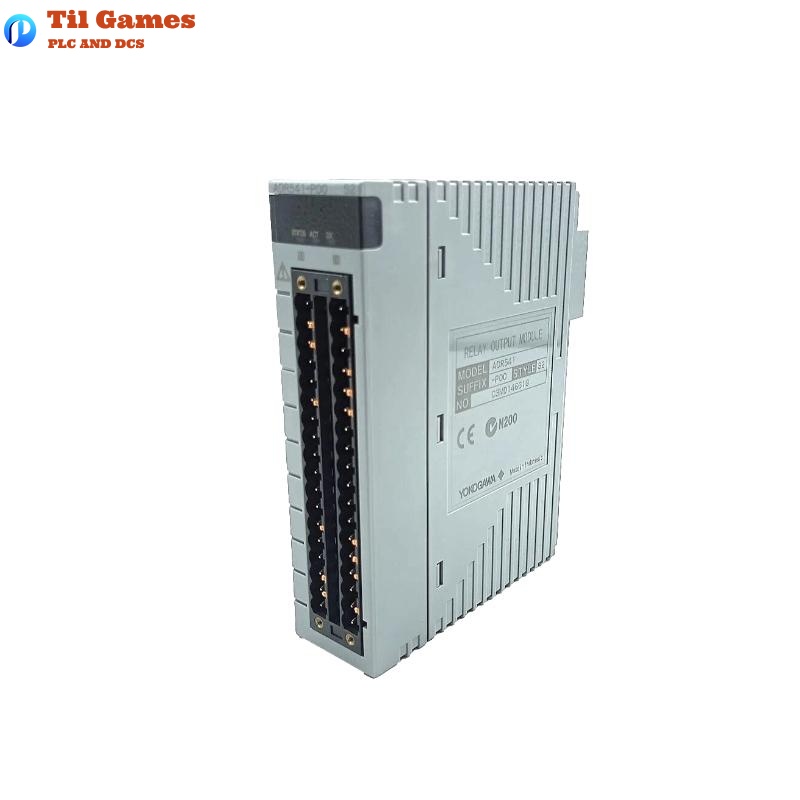

| Model | ADR541-S00 |
| Type | Relay Output Module |
| Number of Output Channels | 16 channels |
| Output Type | Relay contact output |
| Rated Voltage | 24 to 110 V DC / 100 to 240 V AC |
| Isolation | Each channel isolated |
| Output Contact | Form A (SPST-NO) |
| Contact Capacity | 2 A @ 250 V AC / 30 V DC (resistive load) |
| ON Delay / OFF Delay | Typically 10 ms / 10 ms |
| Mounting | Mounted on base with terminal block |
| Connector Type | Pressure clamp terminal or MIL connector |
| Usage Environment | 0–55°C, 5–95% RH (non-condensing) |
| Dimensions (W x H x D) | 130 x 32.8 x 107.5 mm |
| Weight | 0.3 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the function of the ADR541-S00 module?
A1: It serves as a relay output module providing 16 channels of isolated contact outputs for controlling external devices.
Q2: Is the ADR541-S00 module compatible with dual-redundancy systems?
A2: Yes, it is designed to be used in dual-redundant FCS configurations.
Q3: What types of loads can the relay outputs handle?
A3: Each relay contact can handle up to 2 A at 250 V AC or 30 V DC resistive load.
Q4: What is the typical switching time for the relay contacts?
A4: Both ON and OFF delays are typically 10 milliseconds.
Q5: Are the output channels of the module electrically isolated?
A5: Yes, all 16 channels are individually isolated to prevent interference.
Q6: Can this module be used in high humidity or temperature environments?
A6: It can operate in 0–55°C and 5–95% RH, provided there is no condensation.
Q7: What terminal connection options are supported?
A7: The module supports pressure clamp terminals and MIL connectors for flexible wiring.
Q8: How is the ADR541-S00 module mounted?
A8: It is installed on a base within a node unit and connects via a backplane interface.
