Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV142-P10 |
| Number of Input Channels | 16 channels |
| Rated Input Voltage | 200 to 240 V AC, 50/60 Hz |
| Input ON Voltage (peak) | 160 V AC (226 V) to 264 V AC (373 V) |
| Input OFF Voltage (peak) | 40 V AC (56 V) or less |
| Input Current (Typical) | 6.2 mA/channel (@240 V/60 Hz) |
| Input Current (Max) | 9.3 mA/channel |
| Withstanding Voltage | 2 kV AC between input signal and system (1 min) 1.35 kV AC between commons every 8 channels |
| Status Input Function | Detects ON/OFF status per channel |
| Pushbutton Input Function | Edge counting for pushbutton input |
| Input Response Time | ≤160 ms (status input) |
| Minimum ON Detection Time | 200 ms (pushbutton input) |
| Max ON/OFF Cycle | 2.5 Hz (pushbutton input) |
| Max Current Consumption | 500 mA (5 V DC) |

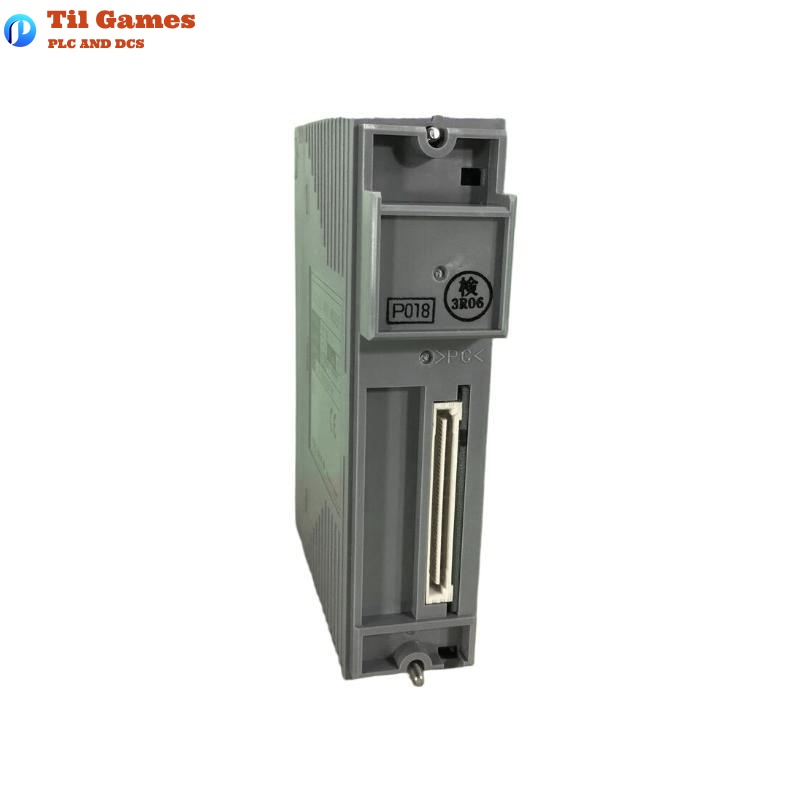

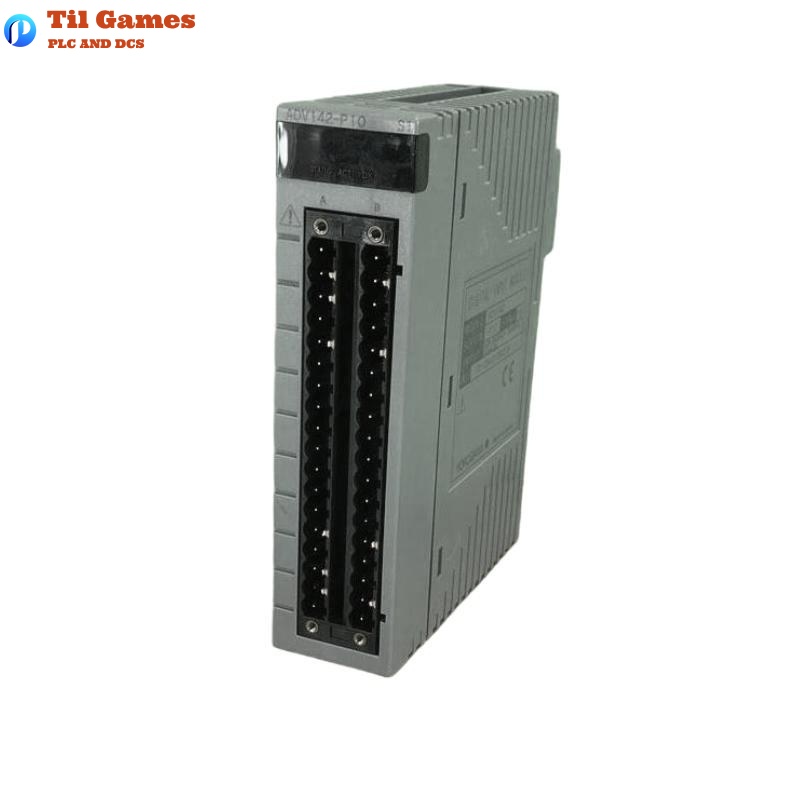

| External Connections | Pressure clamp terminal, dedicated cable (AKB333) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADV142-P10 support?
A1: It supports 16 isolated AC input channels.
Q2: What is the operating voltage range?
A2: The module operates between 200 and 240 V AC, at 50/60 Hz.
Q3: What voltage range is considered ON status?
A3: A peak voltage from 160 V AC to 264 V AC is considered ON.
Q4: Does the module support status detection?
A4: Yes, it supports ON/OFF status detection per channel.
Q5: Is pushbutton input supported?
A5: Yes, the module supports edge detection for pushbutton inputs.
Q6: What is the input response time?
A6: It is 160 milliseconds or less for status input.
Q7: What is the external connection method?
A7: It uses pressure clamp terminals and a dedicated cable (AKB333).
Q8: What are the module’s dimensions and weight?
A8: The dimensions are 107.5 × 130 × 32.8 mm, and the weight is 0.3 kg.
