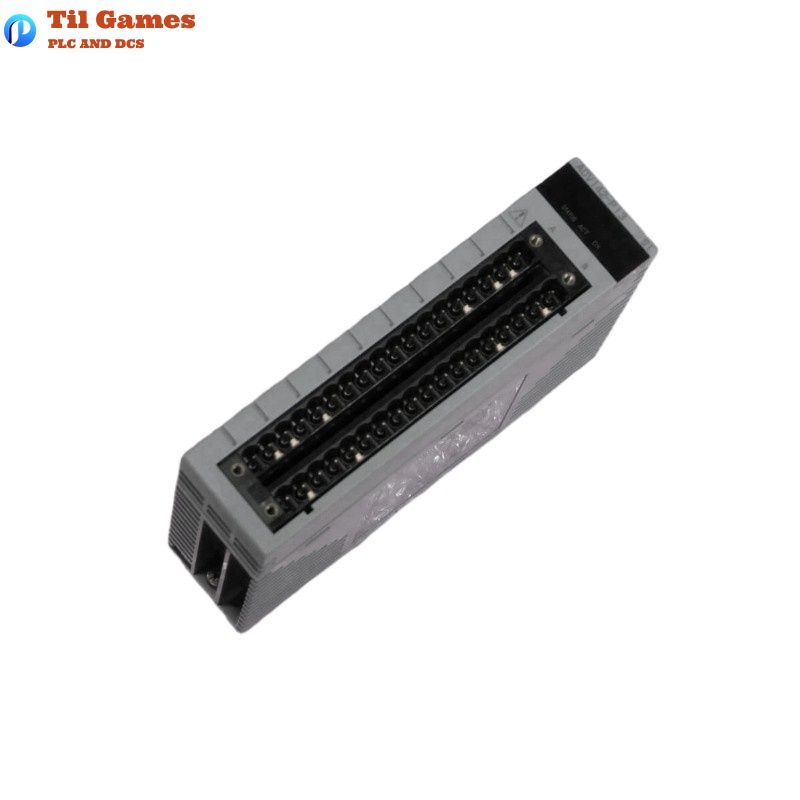

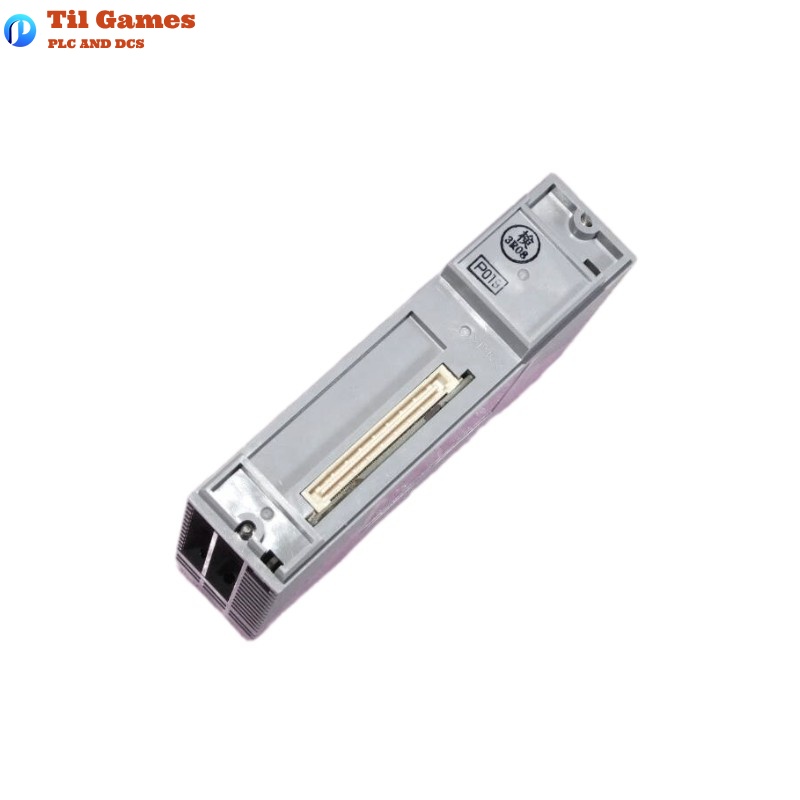

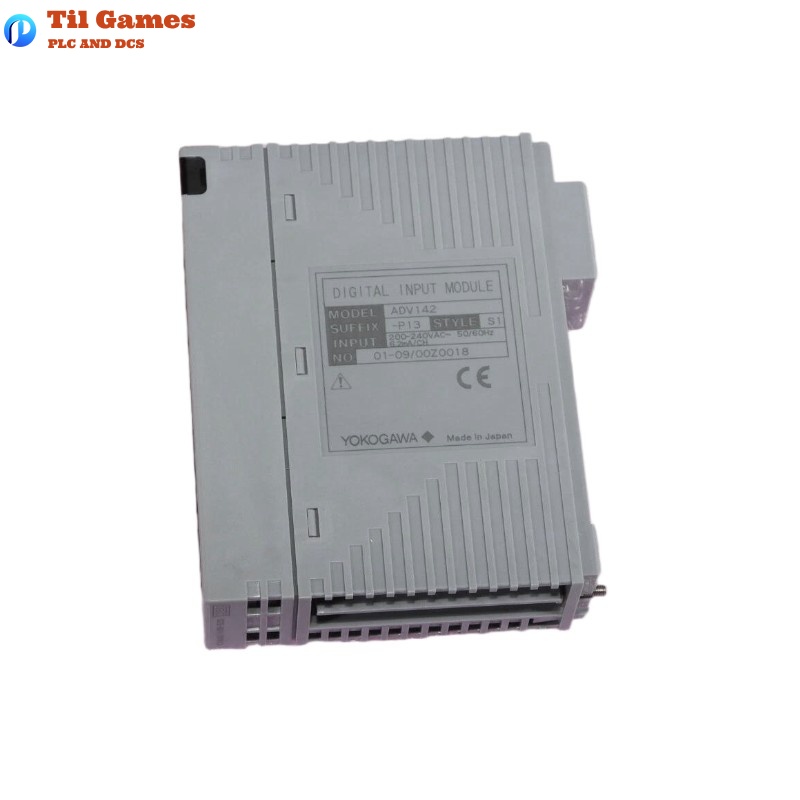

Technical Specifications
| Item | Specification |
|---|---|
| Model | ADV142-P13 |
| Number of Input Channels | 16 channels |
| Rated Input Voltage | 200 to 240 V AC, 50/60 Hz |
| Input ON Voltage (Peak) | 160 V AC (226 V) to 264 V AC (373 V) |
| Input OFF Voltage (Peak) | 40 V AC (56 V) or less |
| Input Current (Typical) | 6.2 mA (@240 V/60 Hz) per channel |
| Input Current (Max) | 9.3 mA per channel |
| Withstanding Voltage | 2 kV AC for 1 minute (input-signal to system) |
| 1.35 kV AC for 1 minute (common minus side per 8 channels) | |
| Functions | ON/OFF status detection, pushbutton edge counting |
| Input Response Time | ≤160 ms (for status input) |
| Minimum ON Detection Time | ≥200 ms (for pushbutton input) |
| Max ON/OFF Frequency | 2.5 Hz (for pushbutton input) |
| Max Power Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB333) |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can ADV142-P13 accept DC signals?
A1: No. This module is designed for AC input only, within 200–240 V AC range. Sine wave input is required.
Q2: Does the module support status detection?
A2: Yes. It detects ON/OFF status and also supports pushbutton edge input counting.
Q3: How many input channels does ADV142-P13 support?
A3: It supports 16 isolated input channels.
Q4: Are input channels grouped with common ground?
A4: Yes. Every 8 channels share a common minus side. All AC signals must be in the same phase.
Q5: Is it suitable for redundant configurations?
A5: Yes. It supports dual redundancy setups for critical applications.
Q6: What is the maximum frequency for pushbutton input?
A6: The maximum ON/OFF cycle rate is 2.5 Hz.
Q7: What are the wiring options?
A7: It supports pressure clamp terminals and dedicated cable AKB333.
Q8: What is the module size and weight?
A8: The dimensions are 107.5 mm (W) × 130 mm (H) × 32.8 mm (D), and it weighs 0.3 kg.
