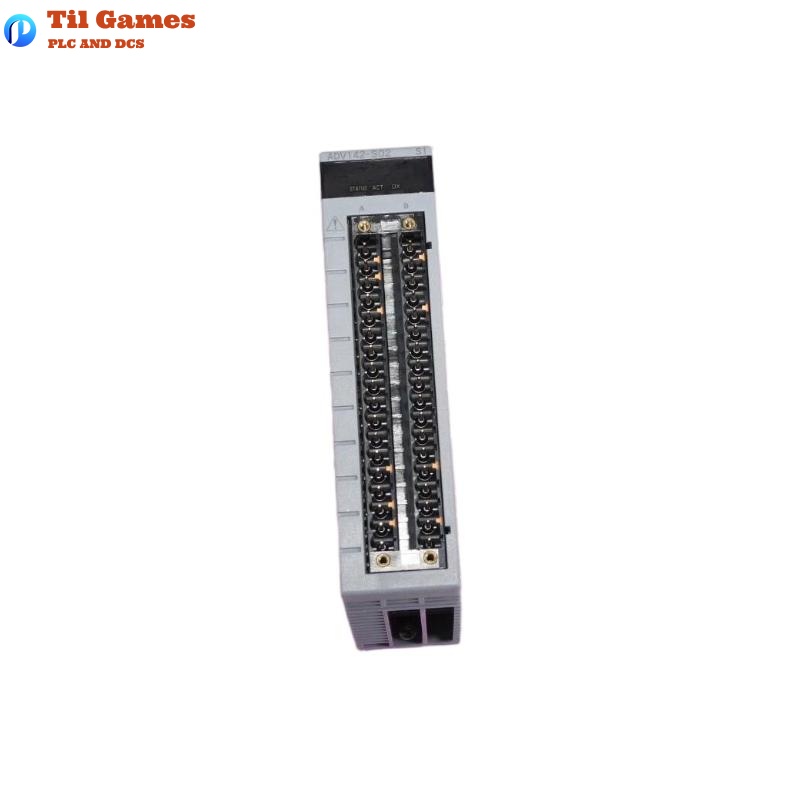

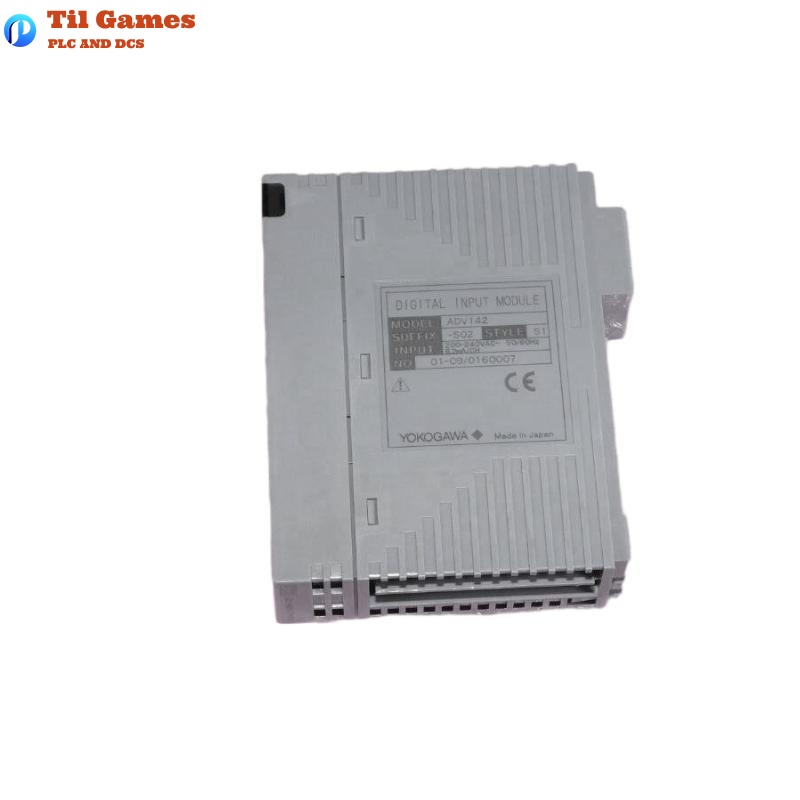

Technical Specifications

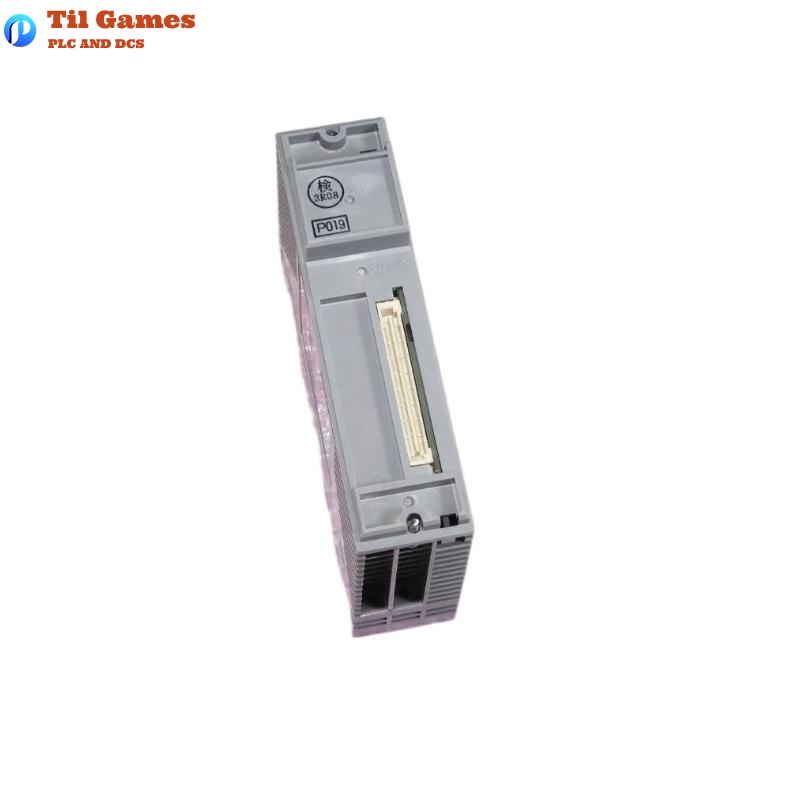

| Item | Specification |
|---|---|
| Model | ADV142-S02 |
| Number of Input Channels | 16 channels |
| Rated Input Voltage | 200 to 240 V AC, 50/60 Hz |
| Input ON Voltage (peak) | 160 V AC (226 V) to 264 V AC (373 V) |
| Input OFF Voltage (peak) | 40 V AC (56 V) or less |
| Typical Input Current | 6.2 mA/channel (@240 V, 60 Hz) |
| Maximum Input Current | 9.3 mA/channel |
| Withstanding Voltage (Signal-System) | 2 kV AC for 1 minute |
| Withstanding Voltage (Commons) | 1.35 kV AC for 1 minute (per 8-channel common) |
| Status Input Function | ON/OFF status detection supported |
| Pushbutton Input Function | Edge counting for pushbuttons supported |
| Input Response Time | 160 ms or less (status input) |
| Minimum ON Detection Time | 200 ms (pushbutton input) |
| Max ON/OFF Cycle | 2.5 Hz (pushbutton input) |
| Max Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, Dedicated cable (AKB333) |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the ADV142-S02 support pushbutton input function?
A1: Yes, pushbutton edge counting is supported.
Q2: What is the input voltage range for the ADV142-S02?
A2: The rated input voltage is 200 to 240 V AC at 50/60 Hz.
Q3: What is the maximum input current per channel?
A3: The maximum input current per channel is 9.3 mA.
Q4: How is the input common terminal structured?
A4: Every 8 channels share one common (minus) terminal.
Q5: What is the input response time?
A5: It is 160 ms or less for status input.
Q6: What is the maximum ON/OFF cycle frequency supported?
A6: It is 2.5 Hz, applicable to pushbutton input function.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 107.5 × 130 × 32.8 mm, and it weighs 0.3 kg.
Q8: Is this module suitable for redundant configurations?
A8: Yes, it can be used in dual-redundant configurations with compatible systems like ESB and ER bus units.
