Technical Specifications
| Item | Specification |
|---|---|
| Model | ADV142-S03 |
| Number of Input Channels | 16 channels |
| Rated Input Voltage | 200 to 240 V AC, 50/60 Hz |
| Input ON Voltage (Peak) | 160 V AC (226 V) to 264 V AC (373 V) |
| Input OFF Voltage (Peak) | Less than 40 V AC (56 V) |
| Input Current (Typical) | 6.2 mA (@240 V/60 Hz) per channel |
| Input Current (Max) | 9.3 mA / channel |
| Input Response Time | ≤160 ms (for status input) |
| Minimum ON Detection Time | 200 ms (for pushbutton input) |
| Max ON/OFF Cycle | 2.5 Hz (for pushbutton input) |
| Functions | Status input detection, pushbutton edge count |
| Withstanding Voltage | 2 kV AC between input signal and system (1 min) |
| 1.35 kV AC between commons (per 8-channel group) | |
| Max Current Consumption | 500 mA (5 V DC) |

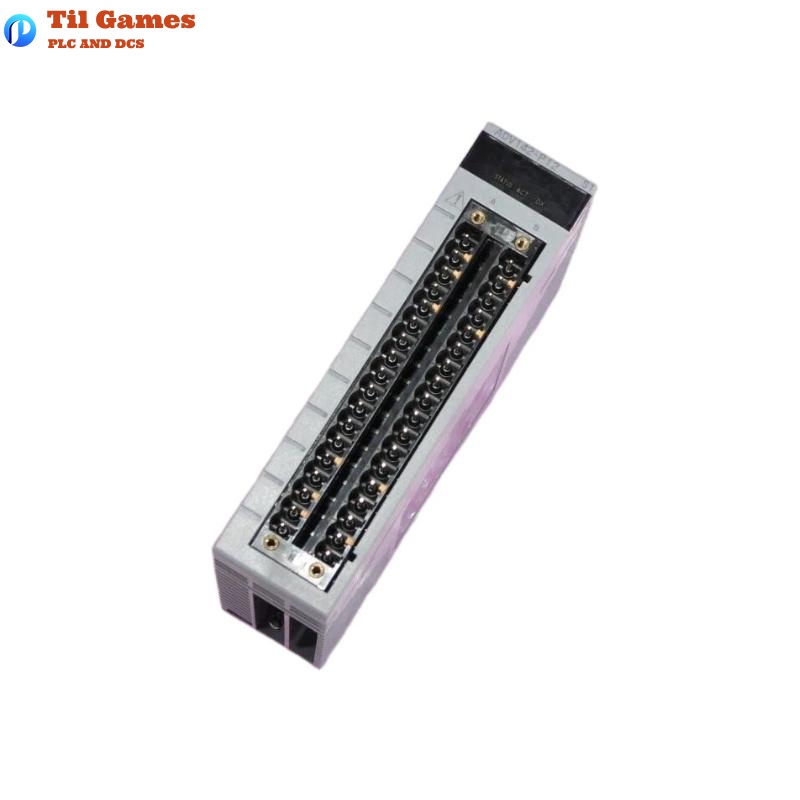

| External Connection | Pressure clamp terminal, dedicated cable (AKB333) |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the ADV142-S03 support?
A1: It supports 16 AC digital input channels.
Q2: What is the applicable voltage range for the input?
A2: The rated input voltage is 200 to 240 V AC, 50/60 Hz.
Q3: What is the response time for input signals?
A3: The response time for status input is 160 milliseconds or less.
Q4: Does it support pushbutton input?
A4: Yes, it includes pushbutton edge counting functionality.
Q5: What is the maximum input current?
A5: The maximum input current is 9.3 mA per channel.
Q6: What are the dimensions and weight of the module?
A6: Dimensions are 107.5 × 130 × 32.8 mm, and it weighs 0.3 kg.
Q7: What is the isolation voltage between commons?
A7: It is 1.35 kV AC for one minute, grouped every 8 channels.
Q8: Are there any usage precautions for the ADV142-S03?
A8: Yes, all AC input signals sharing a common terminal must be of the same phase.
