Technical Specifications
| Parameter | Description |
|---|---|

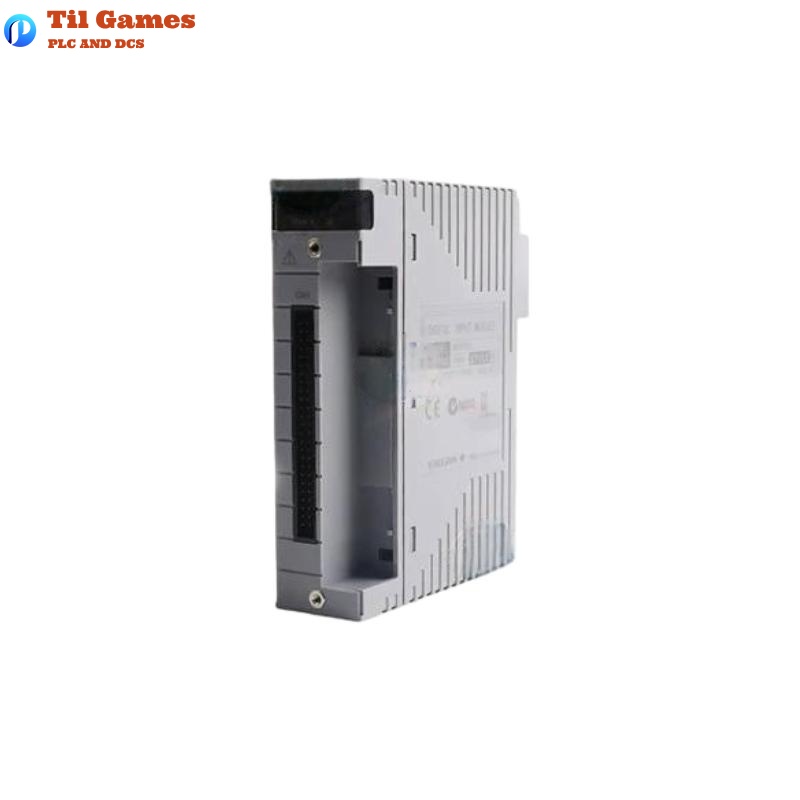

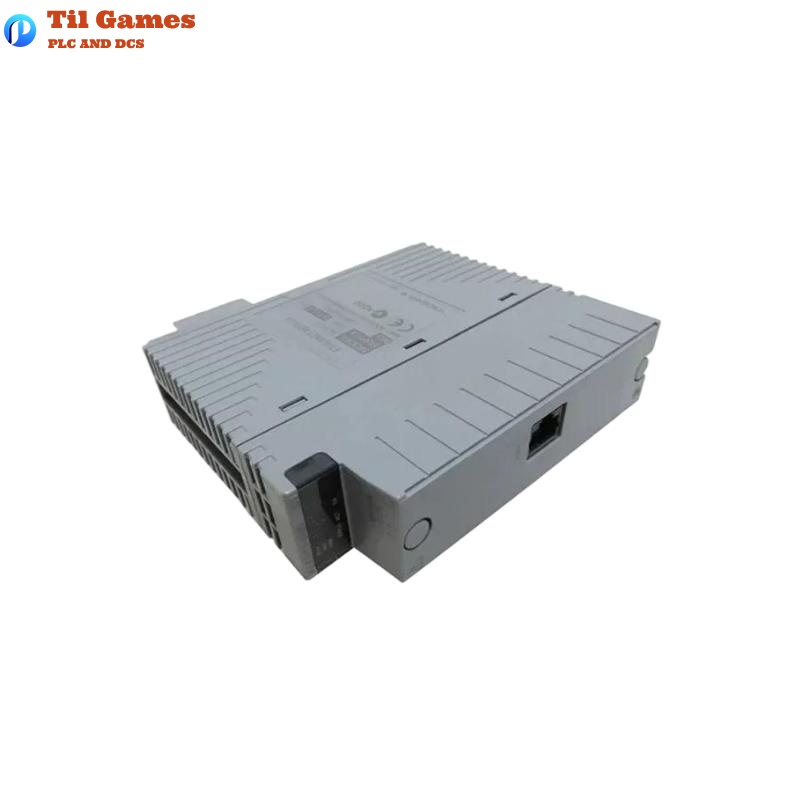

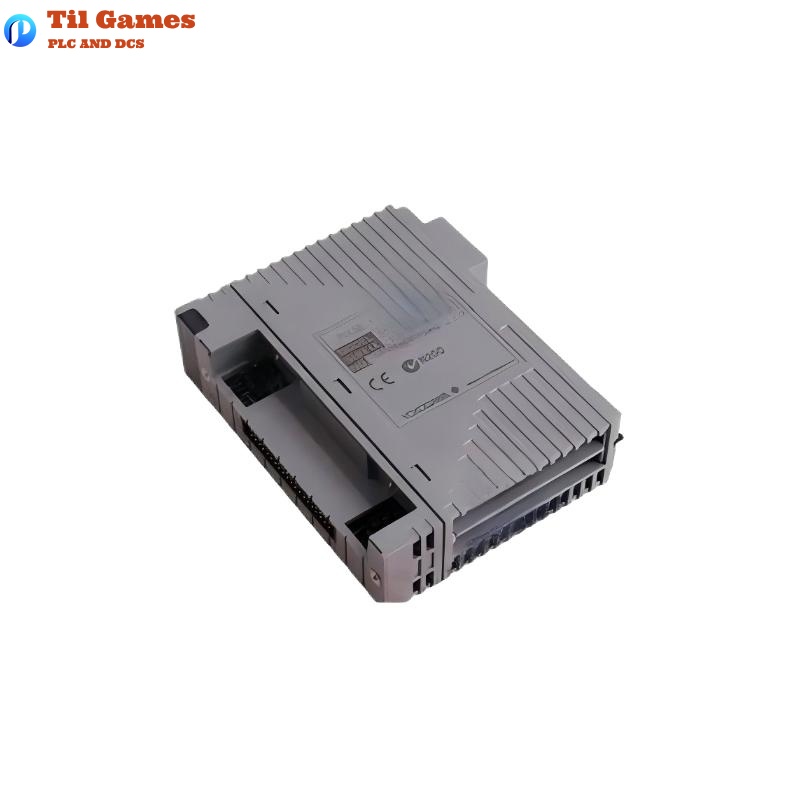

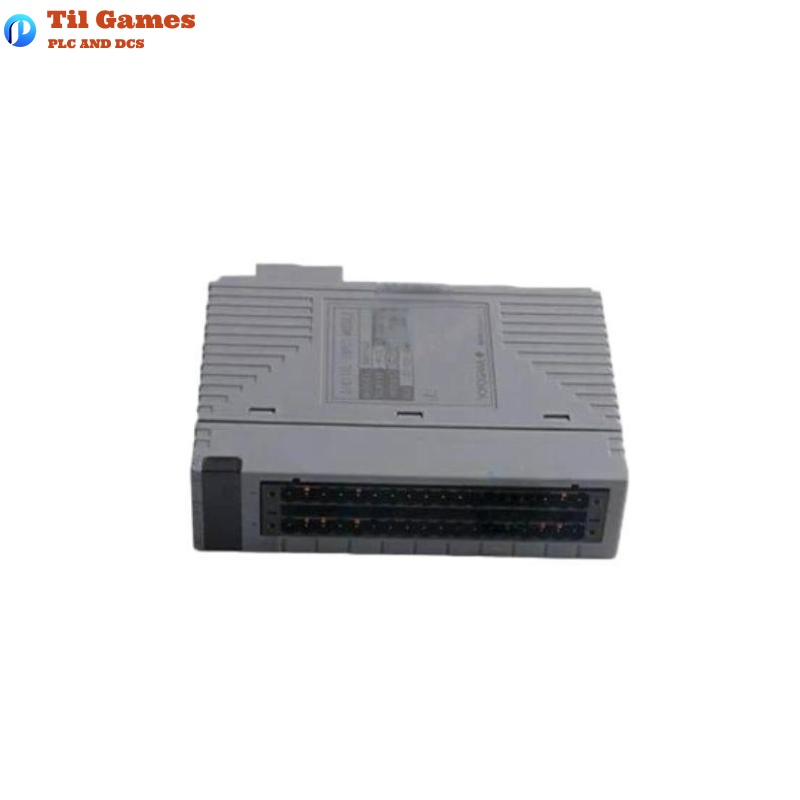

| Module Name | ADV144-S13 Digital Input Module |
| Manufacturer | Yokogawa |
| Module Type | Digital Input Module |
| Number of Input Points | 16 points |
| Input Type | Dry Contact or Voltage Input |
| Input Voltage Range | 24 VDC (standard) |
| Input Voltage Tolerance | 0–30 VDC |
| Rated Input Current | Approx. 5 mA (@ 24 VDC) |
| Isolation | Opto-isolated per channel |
| Response Time | Typically < 1 ms |
| Interface | Standard backplane connection |
| Mounting Method | DIN rail mounting |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | 10–57 Hz, 0.075 mm; 57–150 Hz, 9.8 m/s² |
| Shock Resistance | 147 m/s², duration 11 ms |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal does the ADV144-S13 module support?
A1: It supports dry contact or voltage input, typically used in 24VDC systems.
Q2: Is each input channel isolated?
A2: Yes, each channel is opto-isolated to enhance noise immunity.
Q3: What is the module’s response time?
A3: Typically less than 1 millisecond, suitable for high-speed control applications.
Q4: Can this module operate in high humidity environments?
A4: Yes, as long as humidity is within 5% to 95% non-condensing.
Q5: Is the module suitable for industrial vibration environments?
A5: Yes, it meets vibration and shock resistance standards for industrial use.
Q6: What is the installation method for this module?
A6: The module is mounted via a DIN rail, which allows easy installation and replacement.
Q7: Does the module support hot swapping?
A7: No, power must be turned off before replacing the module.
Q8: How many input points are available on the module?
A8: The ADV144-S13 provides 16 digital input points, ideal for mid-range applications.
