Technical Specifications
| Parameter | Description |
|---|---|

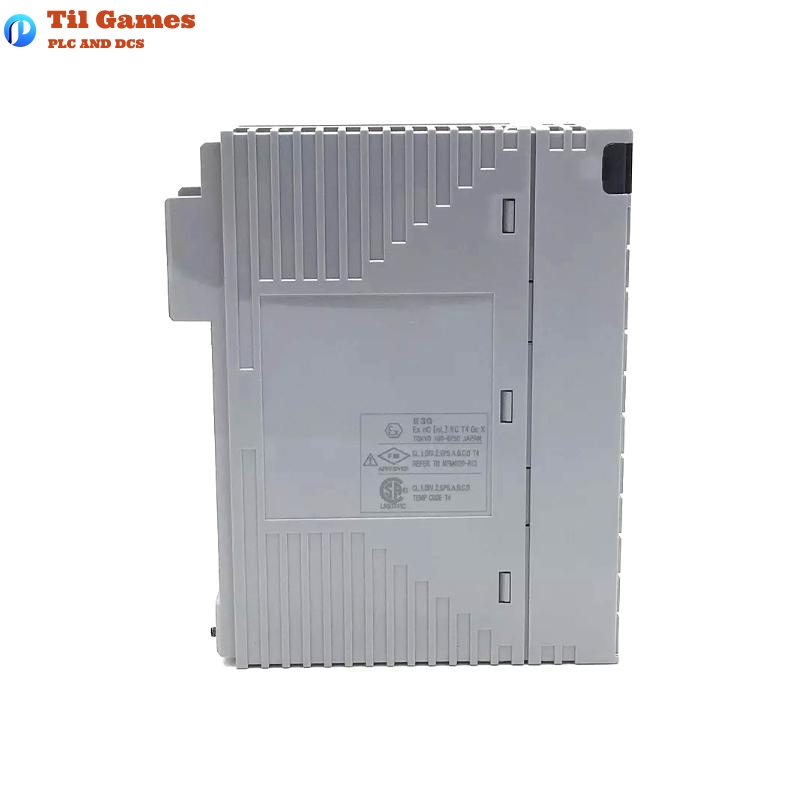

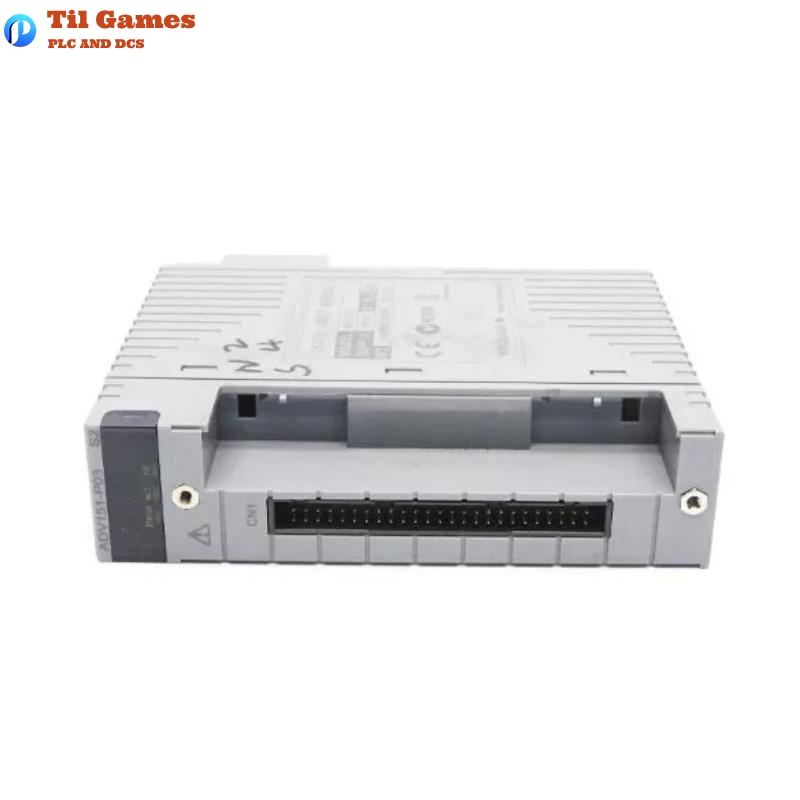

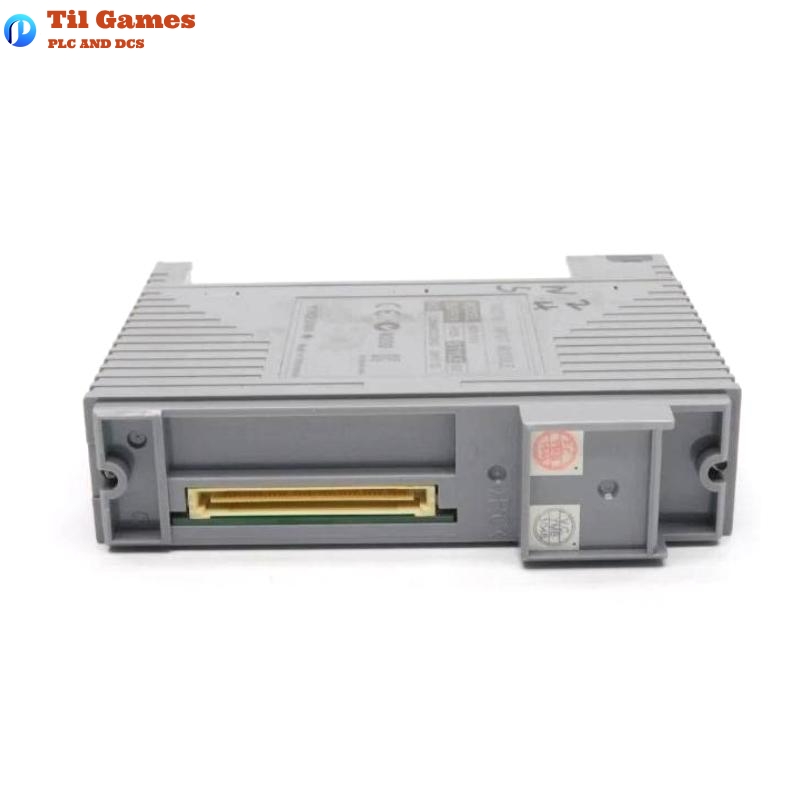

| Module Model | ADV151-P03/D5A00 |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source type supported) |
| Input ON Voltage Range | 18 to 26.4 V DC |
| Input OFF Voltage Max | ≤5.0 V DC |
| Input Current | 4.1 mA ±20% per channel at rated voltage |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Input to system: 2 kV AC, 1 min; commons (per 16 ch): 500 V AC |
| Input Response Time | ≤8 ms (status input) |
| Minimum ON Detection Time | 20 ms (for pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (for pushbutton input) |
| Supported Functions | Status input, Pushbutton edge detection, SOE timestamping |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, AKB331 cable, MIL connector cable |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital inputs does the ADV151-P03/D5A00 support?
A1: It supports 32 digital input channels.
Q2: What is the voltage range for recognizing an ON input?
A2: The ON state is recognized at voltages between 18 and 26.4 V DC.
Q3: What is the minimum ON time the module can detect?
A3: The minimum detectable ON time is 20 milliseconds for pushbutton input.
Q4: Does this model support SOE (Sequence of Events)?
A4: Yes, the ADV151-P03/D5A00 supports SOE data capture.
Q5: What types of wiring connections are available for this module?
A5: It supports pressure clamp terminals, MIL connector cables, and AKB331 dedicated cables.
Q6: What is the withstand voltage between input and system?
A6: The withstand voltage is 2 kV AC for 1 minute between the input signal and the system.
Q7: Is this module suitable for redundant configurations?
A7: Yes, the ADV151 series supports dual redundant configuration.
Q8: What are typical application scenarios for this module?
A8: It is commonly used in process control systems for digital input acquisition from devices like valve position sensors and limit switches.
