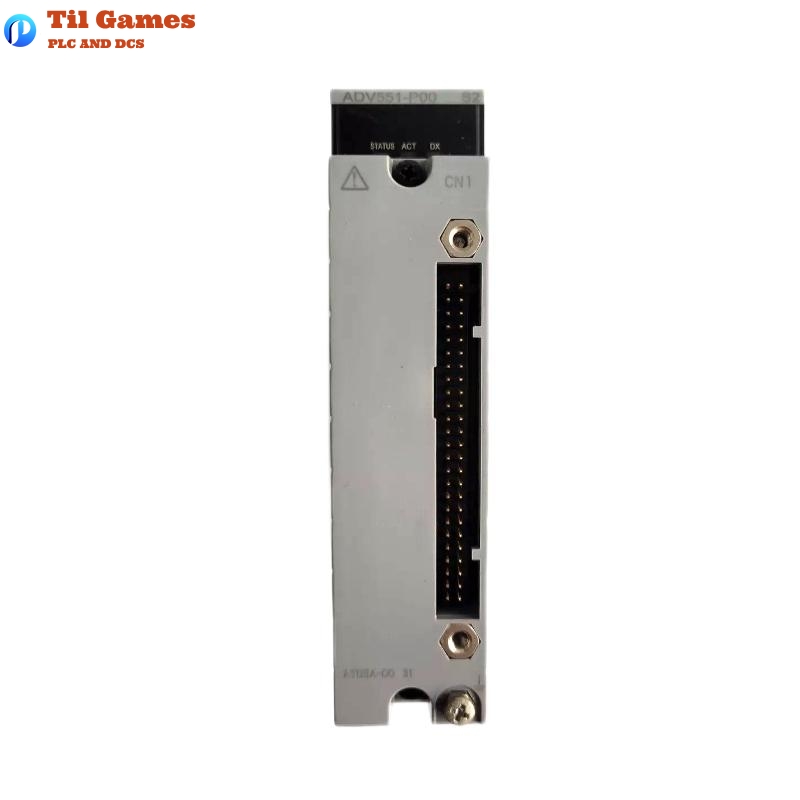

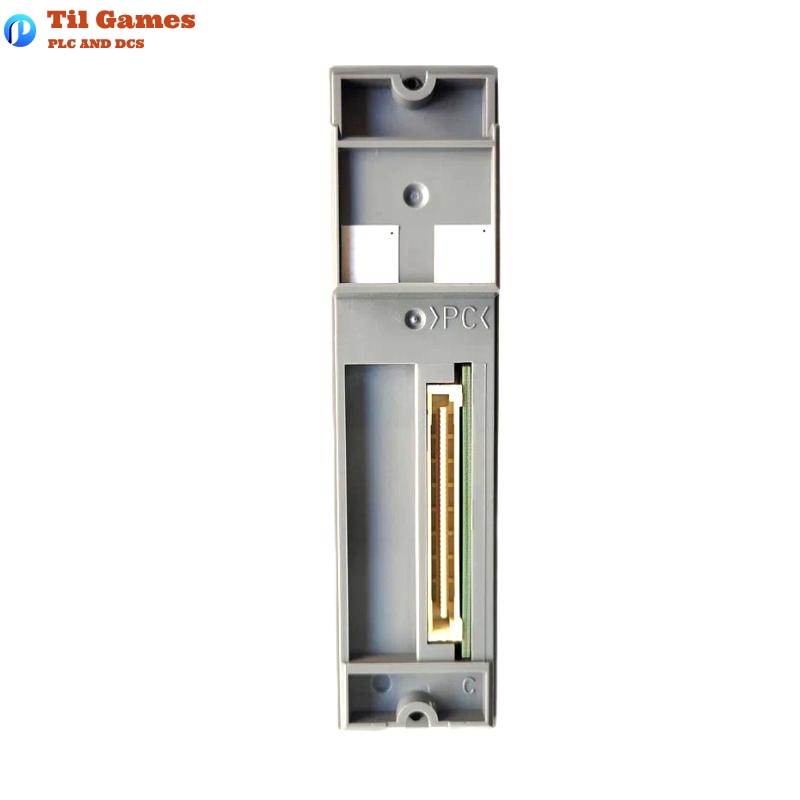

Yokogawa ADV551-P00 Digital Output Module

Manufacturer：Yokogawa

Product Number：ADV551-P00

Product Type：Digital Output Module

Origin：Japan

Dimensions：107.5 × 130 × 32.8 mm

Weight：0.2 kg

FAQ

Q1: What is the maximum load current for the ADV551-P00 module?
A1: The maximum load current for the ADV551-P00 is 100 mA per channel, with a maximum of 26.4 V DC.

Q2: What are the input characteristics of the ADV551-P00?
A2: The module outputs 32-channel current sink signals with a maximum output ON voltage of 2 V DC and a leak current when the output is OFF of 0.1 mA.

Q3: How long does the output response time take?
A3: The output response time for status output is 3 ms or less. For mixed status and pulse outputs, the response time is 10 ms or less.

Q4: What are the supported external connections for this module?
A4: The ADV551-P00 module supports pressure clamp terminals, MIL connector cables, and dedicated cables such as the AKB331.

Q5: Can the ADV551-P00 module be used in a dual redundant configuration?
A5: Yes, the ADV551-P00 module can be used in a dual redundant configuration for enhanced reliability.

Q6: What is the weight of the ADV551-P00 module?
A6: The weight of the ADV551-P00 module is approximately 0.2 kg.

Q7: What is the maximum power consumption of the module?
A7: The maximum current consumption is 700 mA at 5 V DC and 60 mA from the external power supply.

Q8: What is the pulse width range for the ADV551-P00 module?
A8: The pulse width range for the ADV551-P00 is from 8 ms to 7200 seconds, with a resolution of 8 ms and an ON/OFF delay of a maximum of 1 ms.

ADV551-P00 Digital Output Module Yokogawa
