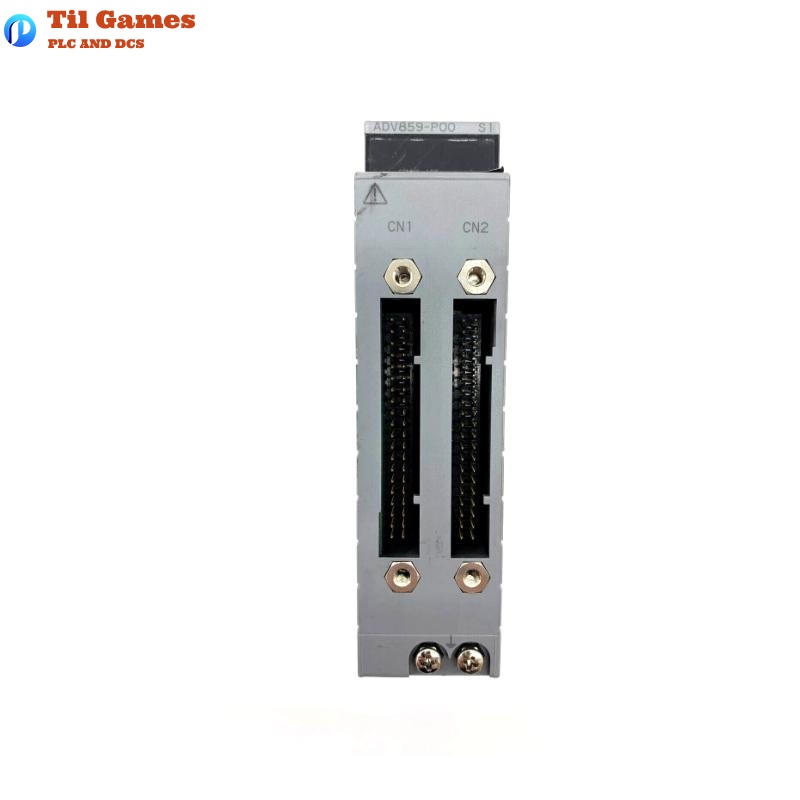

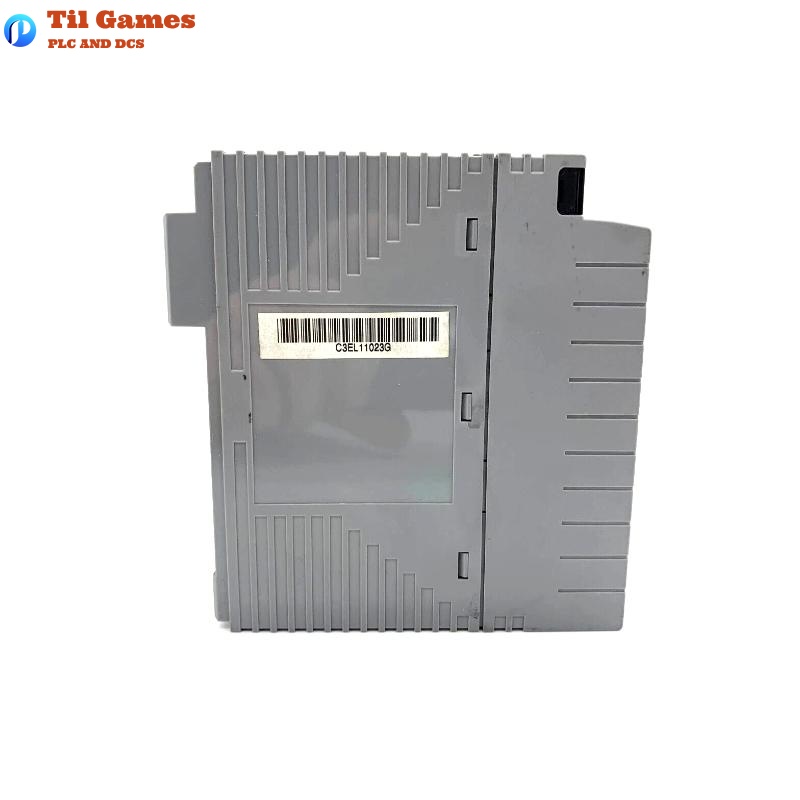

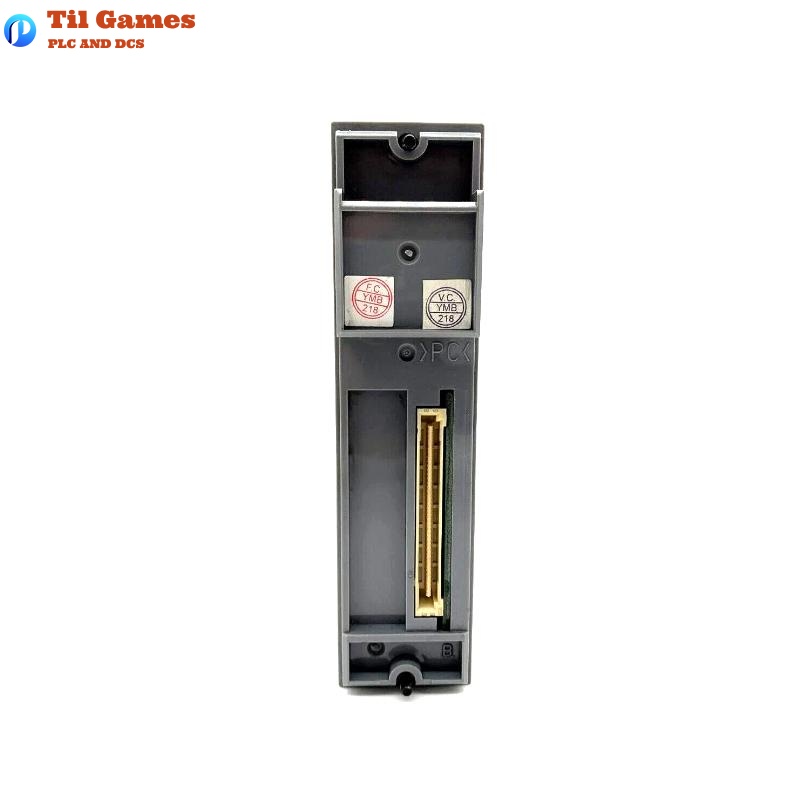

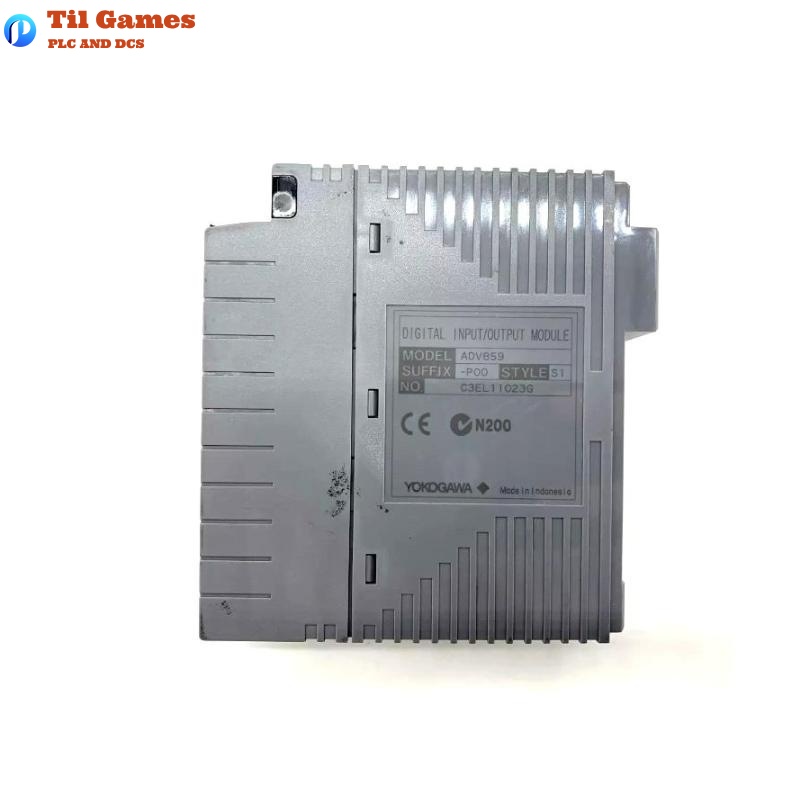

Yokogawa ADV859-P00 Digital I/O Module

Manufacturer：Yokogawa

Product Number：ADV859-P00

Product Type：Digital I/O Module

Origin：Japan

Dimensions：130 x 127.2 x 32.8 mm

Weight：0.3 kg

FAQ

Q1: What types of signals can the ADV859-P00 accept as input?
A1: It accepts both contact input and voltage input. Contact input requires ON ≤200 Ω and OFF ≥100 kΩ, while voltage input detects ON at ±1 V DC and OFF from 4.5 to 25 V DC.

Q2: Is the ADV859-P00 channel-isolated?
A2: Yes, all 16 input and 16 output channels are individually isolated.

Q3: What is the response time of the ADV859 module for input and output?
A3: The input response time is ≤8 ms, and the output response time is ≤16 ms.

Q4: Can ADV859 output a pulse width signal?
A4: Yes, it supports pulse width output from 8 ms to 7200 seconds with 8 ms resolution.

Q5: What kind of loads can the output handle?
A5: It supports both inductive and resistive loads rated at 30 V DC, 100 mA.

Q6: What is the power consumption of the ADV859-P00?
A6: The maximum current consumption is 450 mA at 5 V DC.

Q7: What is the recommended external connection cable for the ADV859?
A7: The module is designed to connect with dedicated cable model KS2.

Q8: What is the physical size and weight of the ADV859 module?
A8: Its dimensions are 130 x 127.2 x 32.8 mm, and it weighs approximately 0.3 kg.

ADV859 ADV859-P00 Digital I/O Module Yokogawa
