Technical Specifications
| Item | Specification |
|---|---|

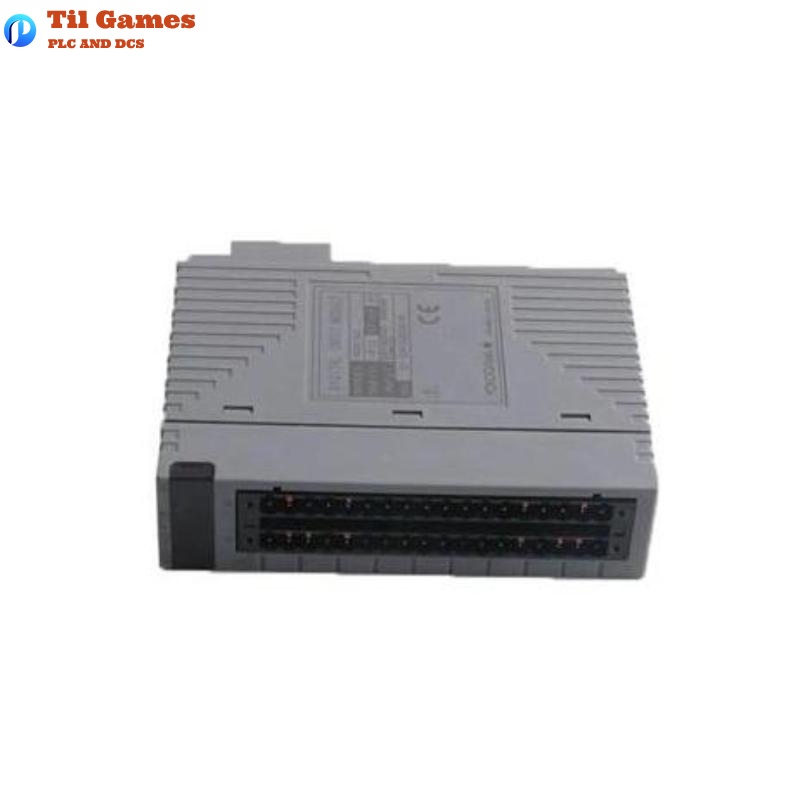

| Model | ADV869 |
| I/O Channels | 32-channel input / 32-channel output |
| Input Signal Type | Contact or voltage input (OFF: 4.5–25 V DC; ON: ±1 V DC, ≤200Ω) |
| Output Signal Type | Transistor contact output |
| Input Contact Rating | 5 V DC, 20 mA or higher |
| Output Contact Rating | Inductive/resistive load: 30 V DC, 100 mA |
| Signal Isolation | Common minus every 16 channels |
| Input Response Time | 8 ms (status input) |
| Output Response Time | ≤ 16 ms |
| Pulse Width Output | 8 ms to 7200 s (resolution: 8 ms, max ON/OFF delay: 1 ms) |
| Max Current Consumption | 800 mA (5 V DC) |
| External Connection | Dedicated cable (KS9) |
| Compatible Card | ST5 compatible |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does ADV869 support dual redundancy?
A1: No, ADV869 does not support dual redundancy; it is designed for single configuration use.
Q2: What types of input signals are supported by ADV869?
A2: ADV869 supports contact and voltage inputs. OFF range: 4.5–25 V DC; ON: ±1 V DC, ≤200Ω.
Q3: Are the channels isolated?
A3: Channels are grouped with common minus side every 16 channels for isolation.
Q4: Is pulse width output supported?
A4: Yes, pulse output from 8 ms to 7200 s is supported with 8 ms resolution.
Q5: Are there restrictions for configuring pulse width output?
A5: Yes, it must use two contiguous channels starting with an odd-numbered terminal.
Q6: Is a diode required when using DC relays?
A6: Yes, a diode should be connected to protect against back EMF when driving DC relays.
Q7: Does ADV869 support pressure clamp terminals?
A7: Yes, the module supports connection via pressure clamp terminals and KS9 dedicated cables.
Q8: What is the input/output response time?
A8: Input response time is 8 ms, and output response time is up to 16 ms.
