Technical Specifications
| Item | Specification |
|---|---|

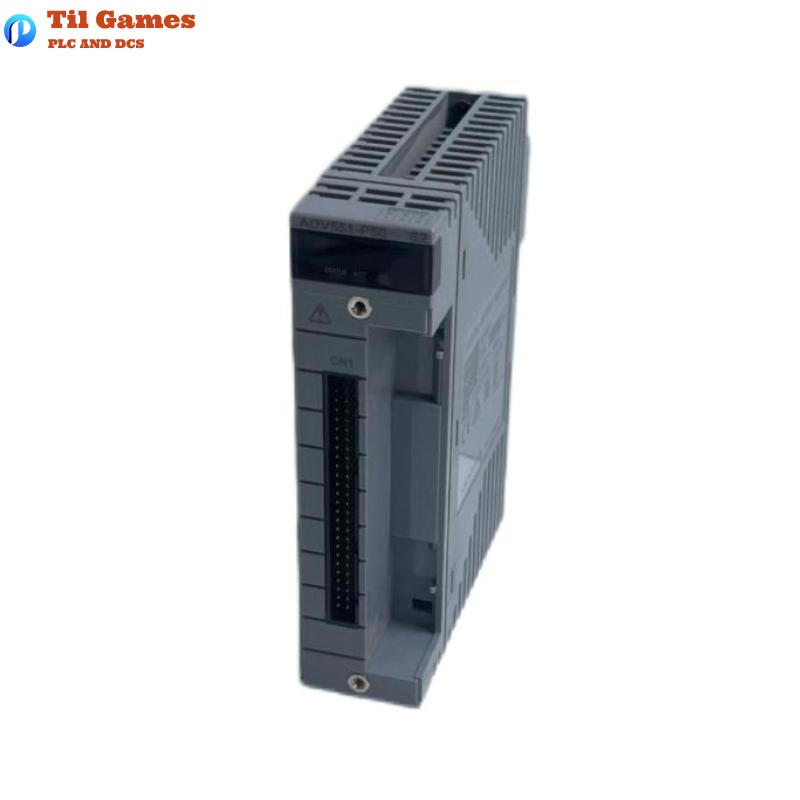

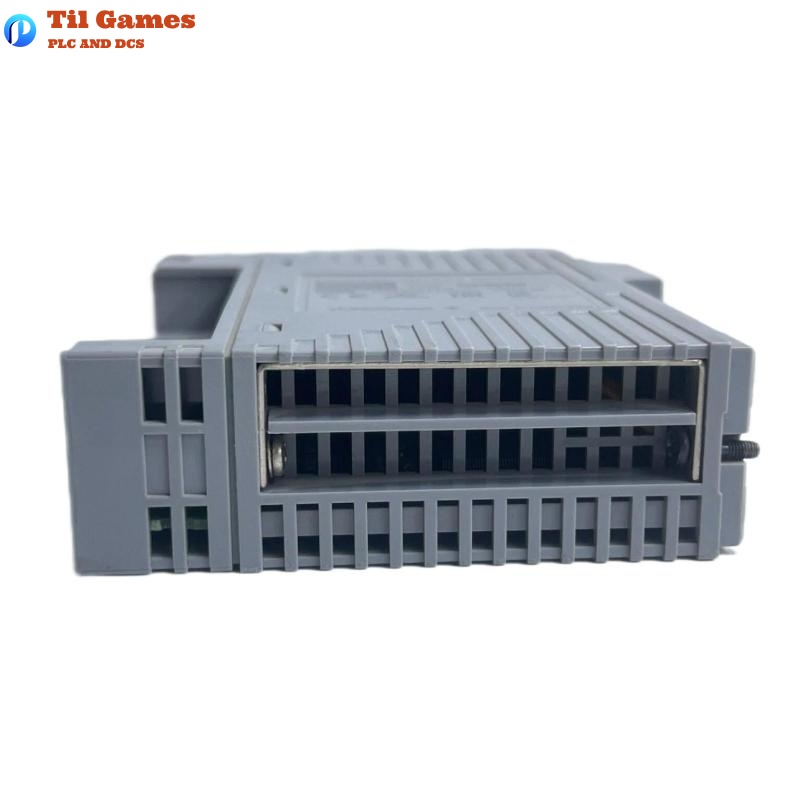

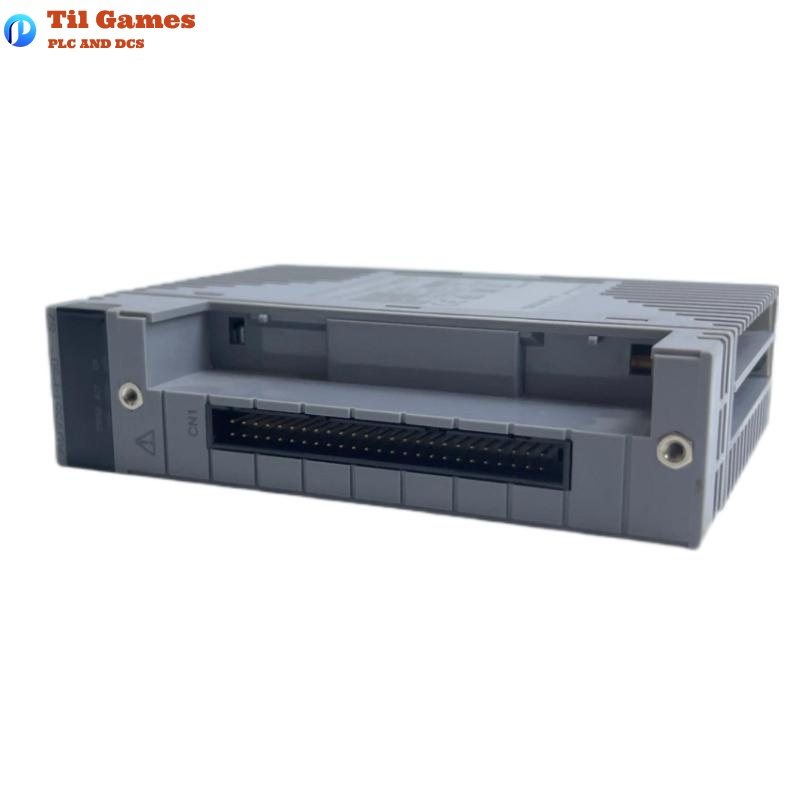

| Model | ADV869-P01 |
| Number of I/O Channels | 32 inputs / 32 outputs |
| Signal Isolation | Common every 16 channels |
| Input Signal (Contact) | OFF: ≥ 100 kΩ ON: ≤ 200 Ω Min. short-circuit current: 1.25 mA |
| Input Signal (Voltage) | OFF: 4.5–25 V DC ON: ±1 V DC, ≤ 200 Ω |
| Input Contact Rating | 5 V DC, 20 mA or more |
| Input Response Time | ≤ 8 ms (status input) |
| Output Signal | Transistor contact |
| Output Contact Rating | 30 V DC, 100 mA (inductive/resistive, use diode for DC relay) |
| Output Response Time | ≤ 16 ms |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, plus up to 1 ms ON/OFF delay |
| Max. Current Consumption | 800 mA (5 V DC) |
| External Connection | Dedicated KS9 cable |
| Compatible Card | ST5 |
| Dimensions (W x H x D) | 130 × 127.2 × 32.8 mm |
| Weight | Approx. 0.30 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the ADV869-P01 an input or output module?
A1: It is a digital I/O module with 32 input and 32 output channels.
Q2: Does it support both contact and voltage input?
A2: Yes, it supports both contact and voltage type inputs.
Q3: What type of output does the module use—sink or source?
A3: It uses current sink (NPN transistor) outputs, supporting up to 100 mA per channel.
Q4: Does it support SOE or pushbutton functions?
A4: No, ADV869-P01 does not support SOE or pushbutton input features.
Q5: Are all channels isolated individually?
A5: No, isolation is shared per 16-channel group.
Q6: Can this module be used in redundant configurations?
A6: No, ADV869-P01 is for single-use applications and does not support redundancy.
Q7: What is the maximum pulse width setting supported?
A7: The pulse width can be set from 8 ms up to 7200 seconds.
Q8: What cable should be used to connect this module?
A8: Use Yokogawa’s dedicated KS9 series cable for proper connection.
