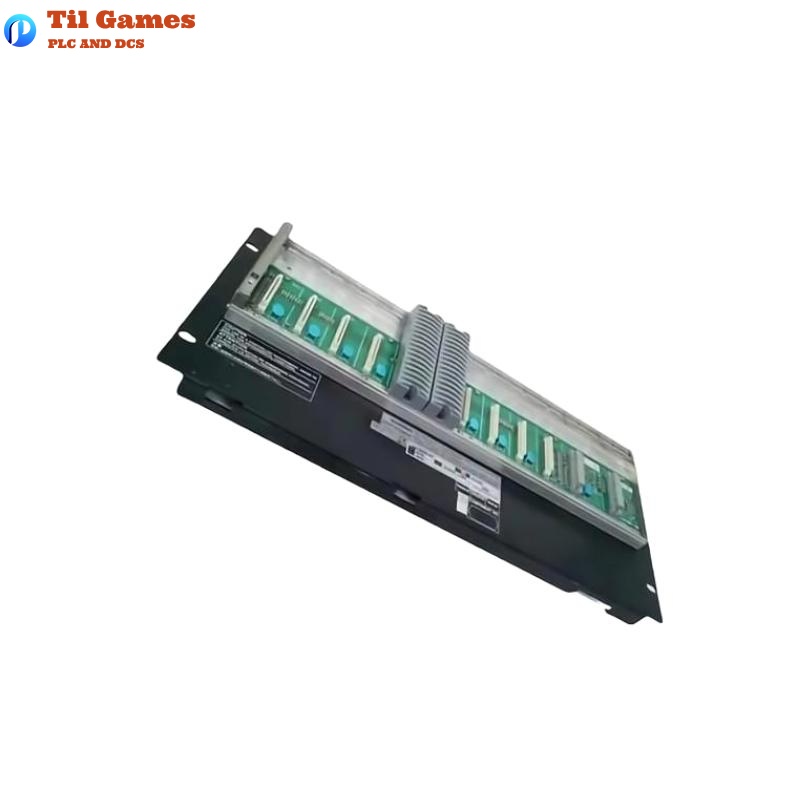

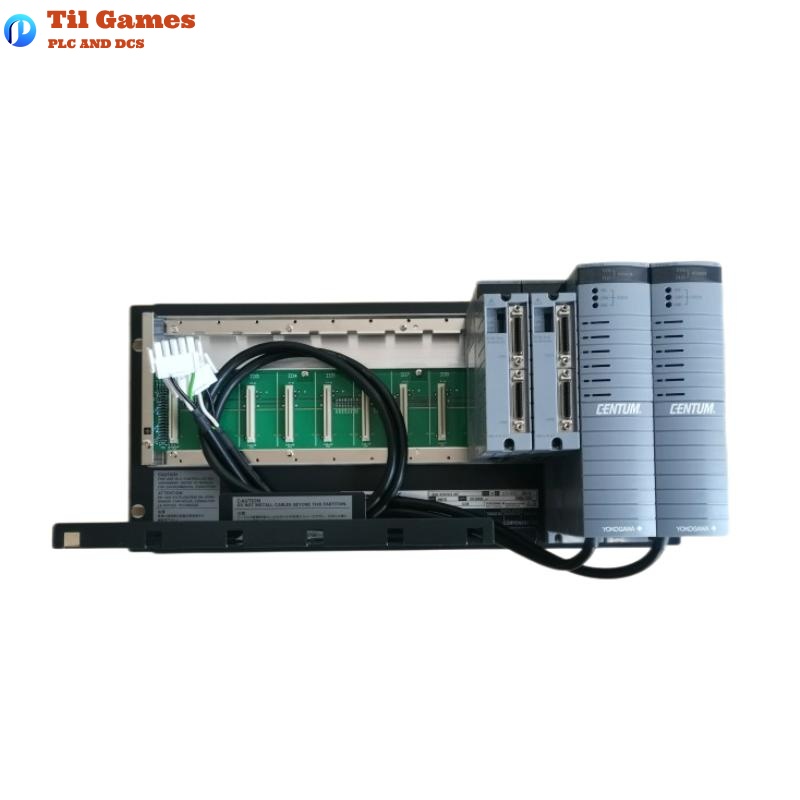

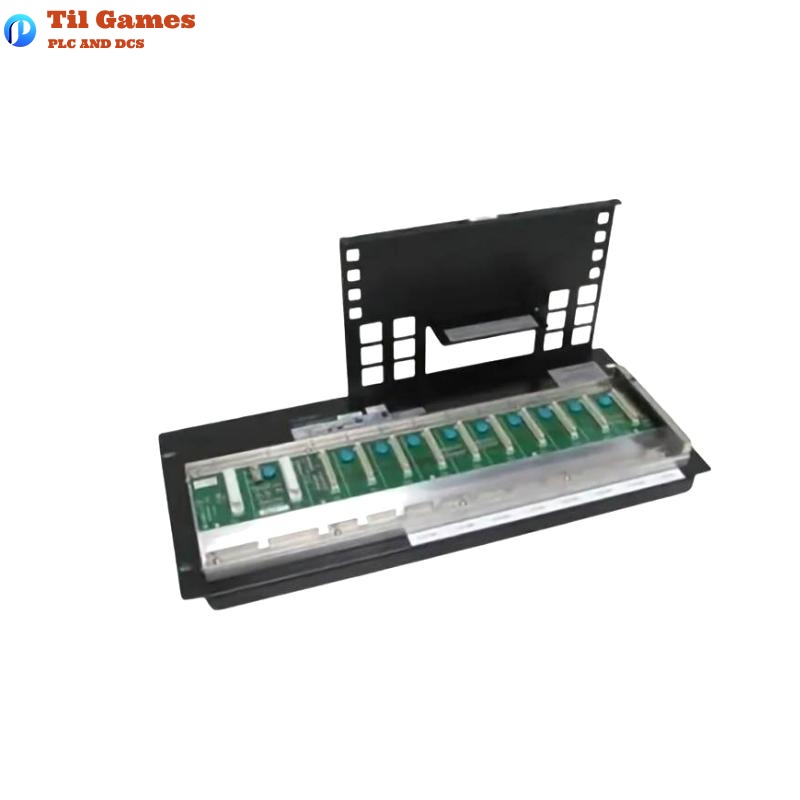

Technical Specifications (AFS20S Safety Field Control Unit)
| Item | Description |
|---|---|
| Model | AFS20S |
| Mounting | Installed in cabinet (requires A2CUKT3 upgrade kit) |
| Communication Interface | Dual-redundant Vnet/IP |
| Module Configuration | – Power Supply: 2 modules (PW481, PW482, or PW484) – CPU: 2 modules (CP471) |
| I/O Module Support | Max. 8 modules; 2 for redundant configuration |
| READY Contact Output | 2 terminals (NC and C), opens during FCU failure, rated 30V DC / 0.3A |
| Battery Backup | Up to 72 hours for main memory; recharge time ≥ 48 hours |
| Power Supply | 100–120V AC, 220–240V AC, or 24V DC (specified by suffix code) |
| Power Consumption | 100–120V AC: 200 VA 220–240V AC: 230 VA 24V DC: 5.5A |
| Connection Type | M4 screw terminals (power, ground, READY contact); CAT5e UTP for Vnet/IP |
| Dimensions (W×H×D) | 207 × 265.9 × 482.6 mm |
| Weight | Approx. 8 kg |
| Software Requirement | CENTUM VP R6.03 or later |
| Node Capacity | – Max. 8 N-IO Nodes – Max. 40 N-IO I/O Units – Max. 8 ANB10D/11D Units |
| Installation Environment | 0–50°C, 5–95% RH (non-condensing) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does AFS20S support hot redundancy?
A1: Yes. Both the CPU and power modules can be configured in dual-redundant mode for high availability.
Q2: How many N-IO nodes can AFS20S connect to?
A2: It supports up to 8 N-IO nodes per unit.
Q3: Can the power modules be replaced individually?
A3: Yes, each power module (PW481, PW482, or PW484) is hot-swappable.
Q4: Is there a backup battery and what does it support?
A4: Yes. The backup battery maintains main memory data retention for up to 72 hours during power outages.
Q5: What are the dimensions of AFS20S?
A5: The unit measures 207 × 265.9 × 482.6 mm.
Q6: Is software licensing required for AFS20S?
A6: Yes, CENTUM VP R6.03 or later is required along with applicable control and I/O licenses.
Q7: Can AFS20S be used for legacy system upgrades?
A7: Yes. It is compatible with cabinet upgrades via the A2CUKT3 kit, replacing older models like AFS10S/20S.
Q8: How is communication redundancy achieved?
A8: Through dual Vnet/IP interfaces, using two network paths and redundant switches.
