Technical Specifications (AFV10S)
| Parameter | Description |
|---|---|

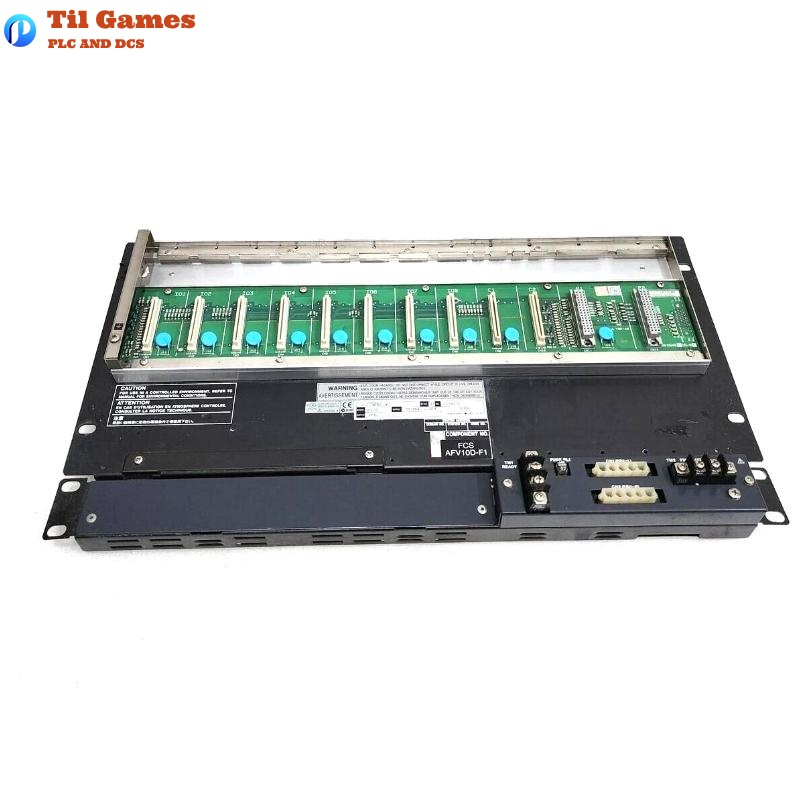

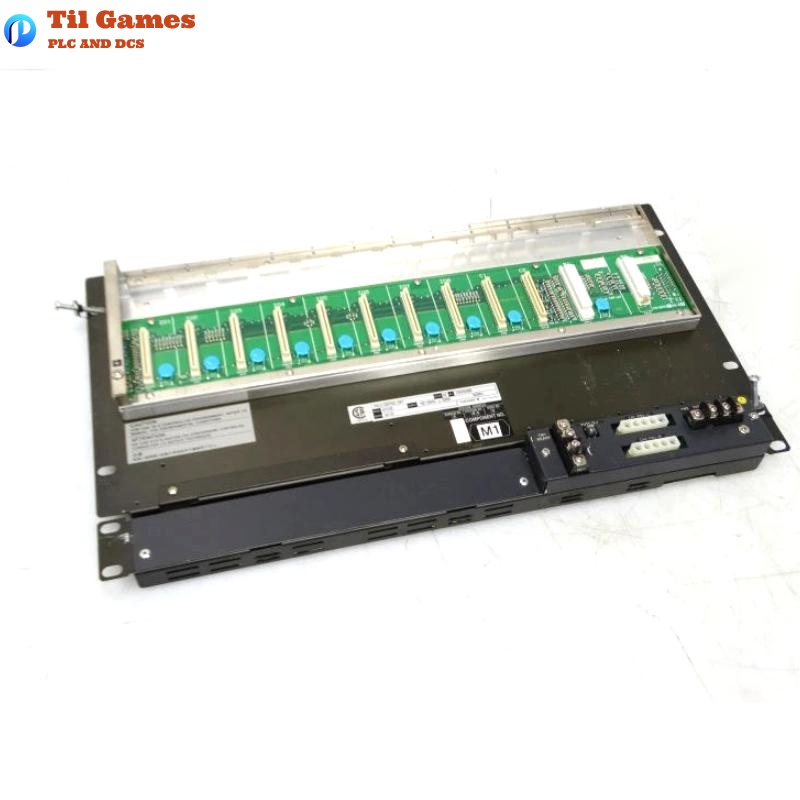

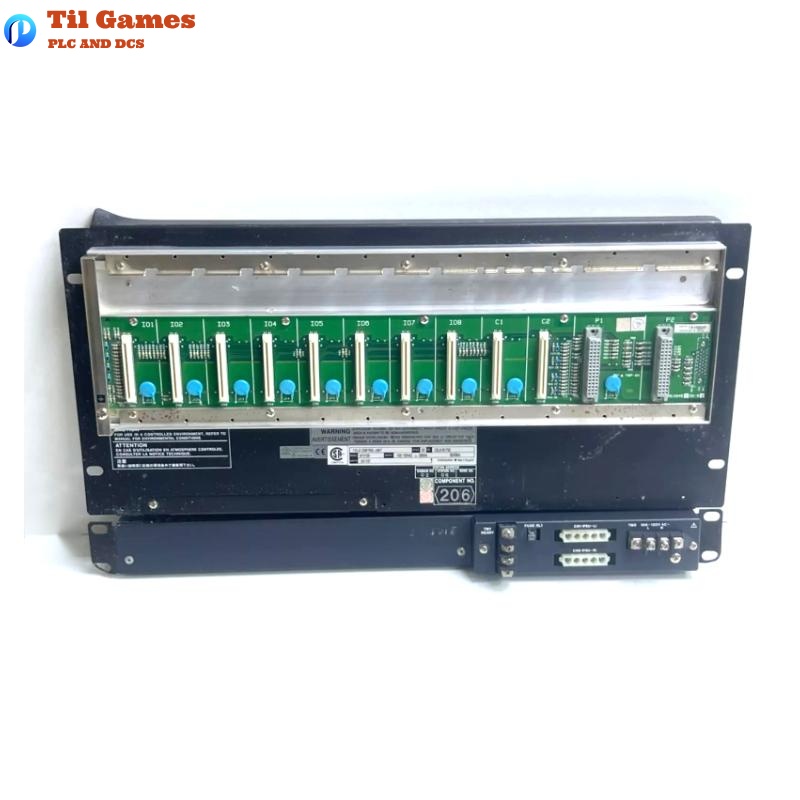

| Product Name | AFV10S Field Control Unit |
| Mounting Type | 19-inch rack-mountable |
| Network Communication | Vnet/IP (Gigabit Ethernet, dual-redundant) |
| Control Function | Control Function Software LFS1500; optional Node Expansion Package LFS1550 |
| Bus Types | ESB Bus, ER Bus |
| Max. ESB Nodes | 9 (with expansion package) |
| Max. ER Nodes | 14 (with expansion package) |
| Bus Topology | Bus topology, supports dual/single transmission |
| Bus Transmission Speed | ESB: 128 Mbps; ER: 10 Mbps |
| Communication Distance | ESB: up to 10 m; ER: up to 185 m (with extension) |
| Power Supply | 24 V DC ±10% / 100–120 V AC or 220–240 V AC ±10%, 50/60 Hz ±3 Hz |
| Operating Temperature | 0 – 50 °C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Noise Immunity | Electric Field: up to 3 V/m; Magnetic Field: up to 400 A/m (DC) |
| Electrostatic Resistance | Direct discharge: up to 4 kV; Air discharge: up to 8 kV |
| Dimensions (W × H × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocol does the AFV10S support?
A1: It supports Vnet/IP with Gigabit Ethernet and dual-redundant configuration for high reliability.
Q2: How many ESB and ER bus nodes can be connected to AFV10S?
A2: Up to 9 ESB nodes and 14 ER nodes can be connected with the Node Expansion Package LFS1550.
Q3: Does the AFV10S support redundant configurations?
A3: Yes, both single and dual-redundant configurations are supported.
Q4: What is the operating temperature range of AFV10S?
A4: It operates within 0 to 50°C, suitable for industrial environments.
Q5: What is the installation method of AFV10S?
A5: It uses standard 19-inch rack mounting, making it easy to integrate into control cabinets.
Q6: Is the AFV10S compliant with EMC and safety standards?
A6: Yes, it complies with EN 61000 series, CE Marking, CSA, and other relevant certifications.
Q7: What is the maximum communication distance for the buses?
A7: ESB bus supports up to 10 m; ER bus (with coaxial cable) can reach up to 185 m with extension.
Q8: Does the AFV10S support remote operation and monitoring?
A8: Yes, limited remote operation and monitoring are supported via HIS-TSE software.
