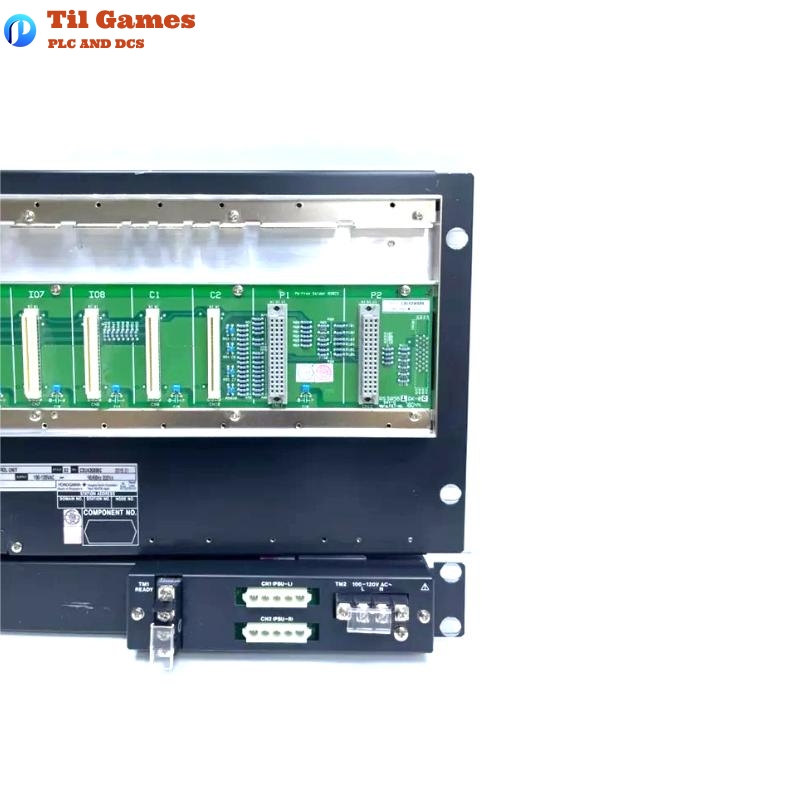

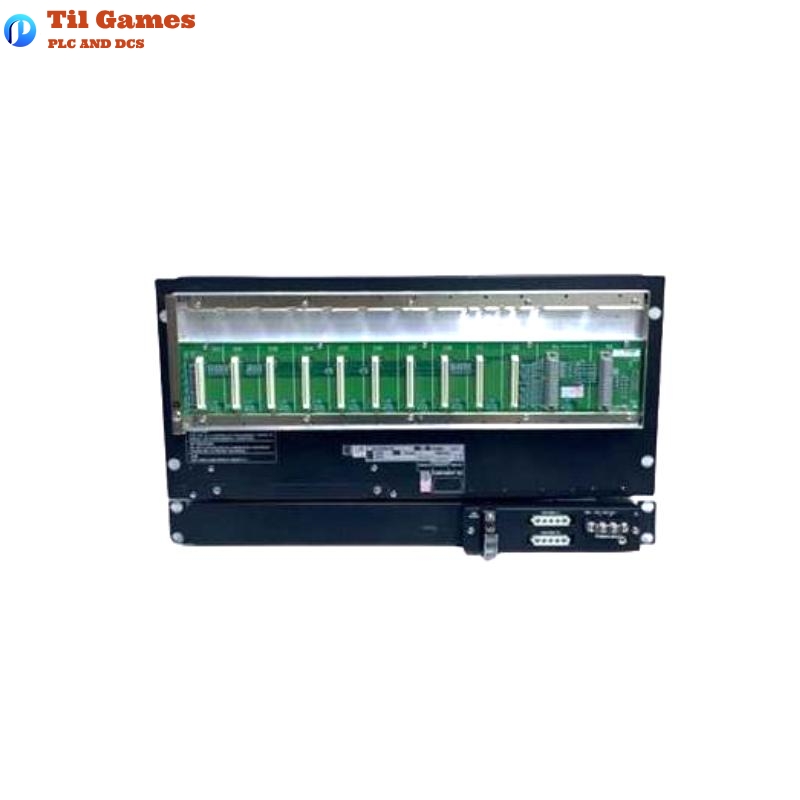

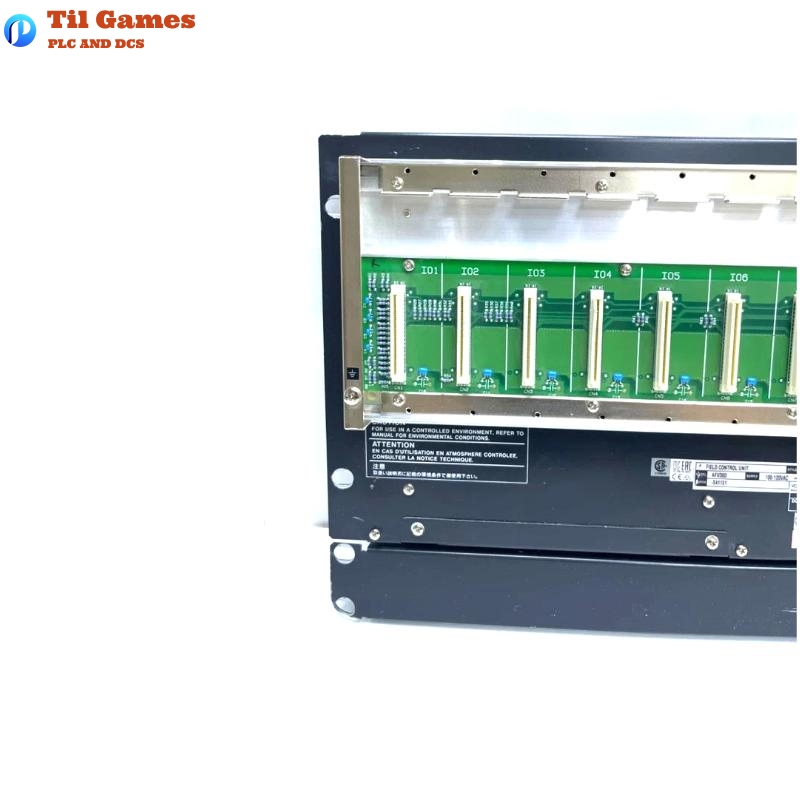

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AFV30D-S41251 |
| System Type | Duplexed Field Control Unit for Vnet/IP and FIO |
| Mounting Type | 19-inch Rack Mountable |
| Power Supply Options | 100-120 V AC / 220-240 V AC / 24 V DC |
| Power Consumption | 200 VA (100-120 V AC) / 230 VA (220-240 V AC) / 5.5 A (24 V DC) |
| Processor Module | Dual-redundant (CP471 or CP461, same model required for redundancy) |
| I/O Module Capacity | Maximum 8 (non-standard components) |
| Node Unit Capacity | Maximum 13 per FCU (includes ESB and Optical ESB bus node units) |
| Communication Interface | Dual-redundant Vnet/IP |
| READY Contact Output | 2 terminals (NC, C), 30 V DC, max. 0.3 A |
| Memory Backup | Battery-backed, 72 hours max; Recharge time: ≥48 hours |
| External Dimensions (mm) | 207 × 265.9 × 482.6 |
| Weight | Approx. 8.0 kg |
| Grounding / Power Connection | M4 screw terminal |
| Mounting Hardware | M5 × 8 screws, insulating bush (included) |
| Required Software License | VP6F1700 Control Function, VP6F3100 Project I/O License |
| Optional Interfaces | /HKU (Housekeeping Unit Interface), /MRN (Marine), /ATDOC (Explosion Manual) |
FAQ
FAQ
Q1: What is the main function of the AFV30D-S41251 unit?
A1: It functions as the core controller in a CENTUM VP system, handling control logic and I/O communication with dual redundancy.
Q2: How many I/O modules can be connected to this unit?
A2: Up to 8 I/O modules can be connected, depending on system configuration.
Q3: What processors are compatible with this unit?
A3: It supports dual-redundant configurations using either CP471 or CP461 modules, but both must be of the same model.
Q4: What is the purpose of the /HKU option?
A4: The /HKU option enables environmental monitoring and fault reporting from the Housekeeping Unit.
Q5: Can this unit operate with optical ESB bus nodes?
A5: Yes, it can connect with optical ESB bus nodes through appropriate repeater modules.
Q6: What is the weight and size of this unit?
A6: It measures 207 × 265.9 × 482.6 mm and weighs approximately 8.0 kg.
Q7: Does the unit include battery backup for memory?
A7: Yes, memory is backed up by a battery for up to 72 hours in the event of a power failure.
Q8: Is a software license required to operate this unit?
A8: Yes, licenses for the control function and I/O management software must be acquired separately.
