Technical Specifications
| Parameter | Description |
|---|---|

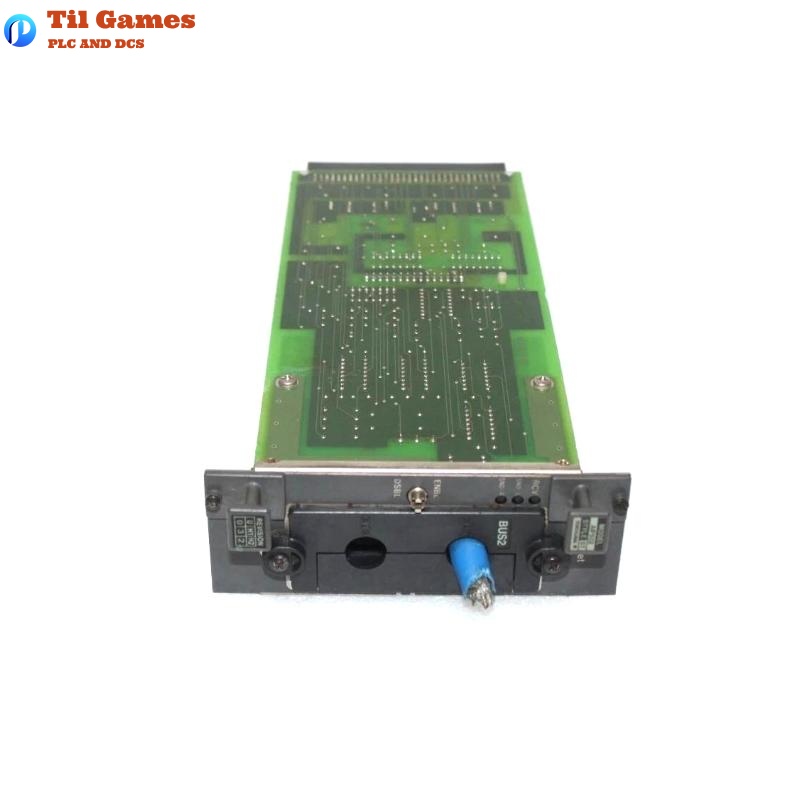

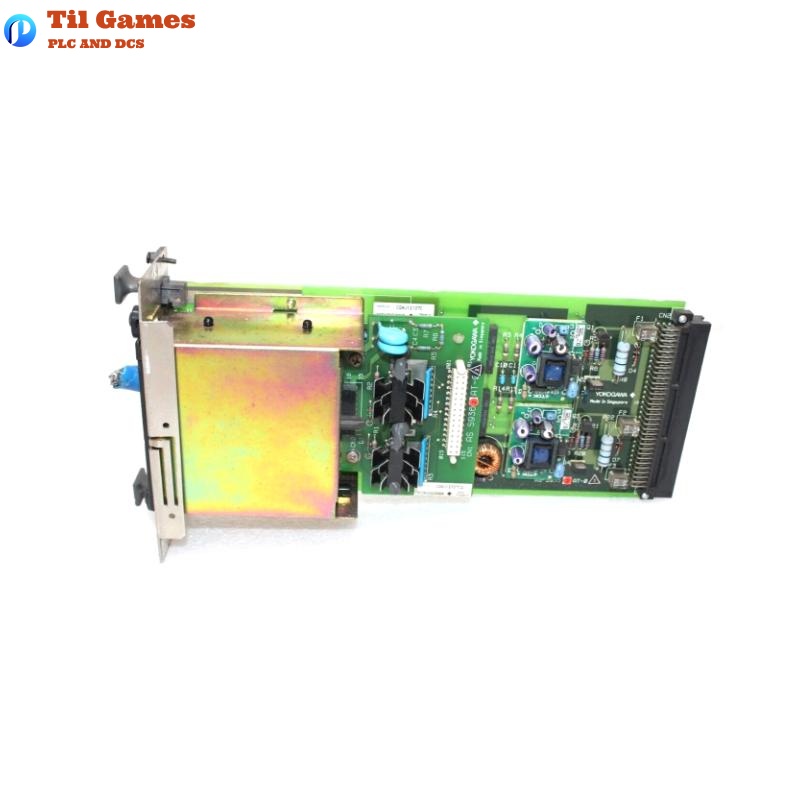

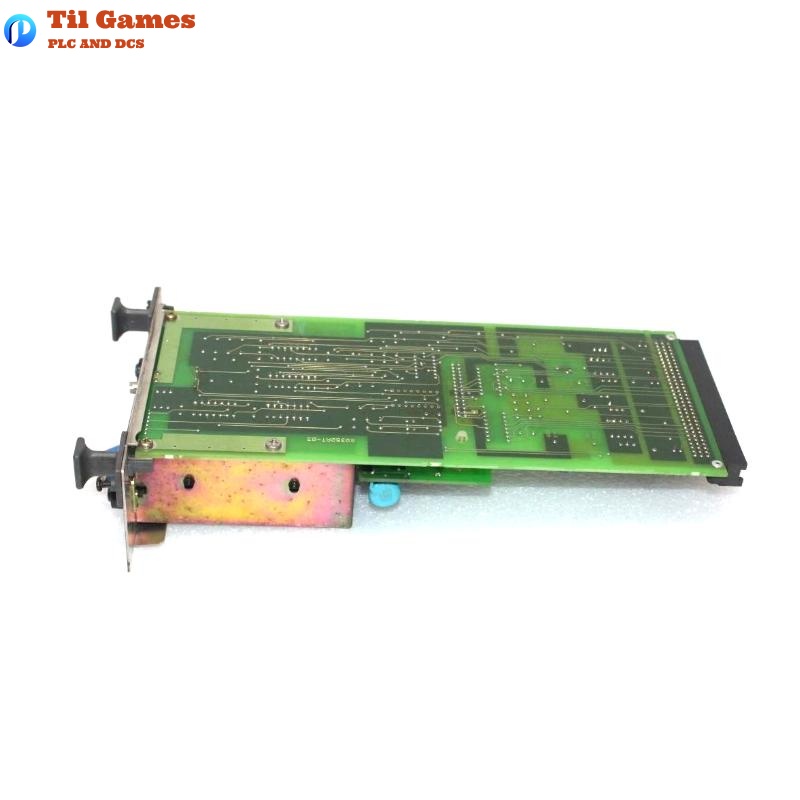

| Model | AIP502-S1 |
| Product Type | V-Net Coupler Module |
| Communication Port | V-Net (with redundancy support) |
| Communication Rate | 10 Mbps (10Base5/2 for V-Net) |
| Function | Bridges communication between FCS and V-Net |
| Redundancy | Supports dual-redundant configuration |

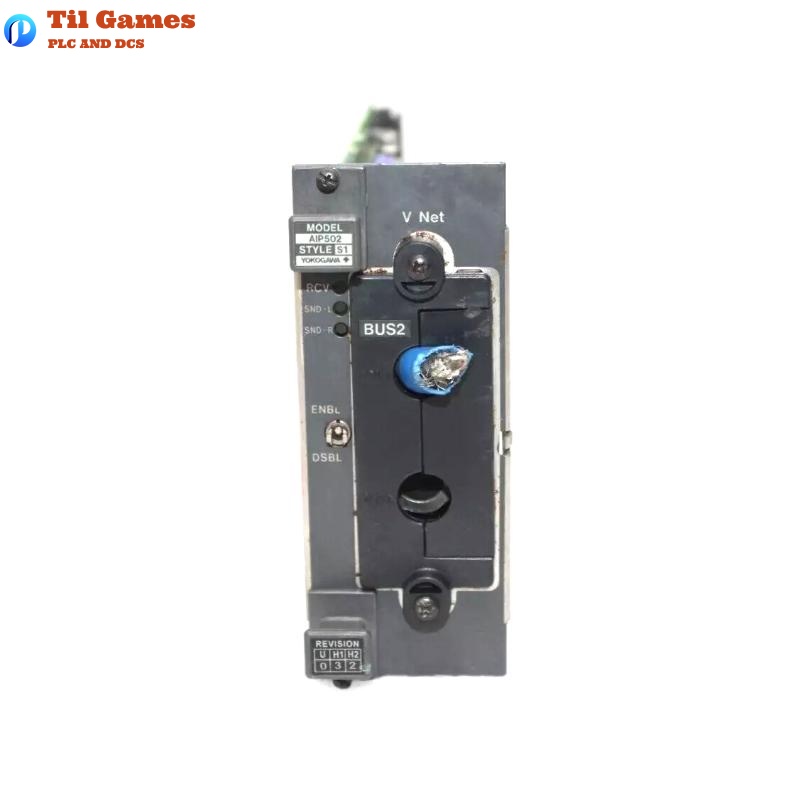

| Status LEDs | RCV, SND-L, SND-R |
| Power Supply | Supplied from FCS rack |
| Installation | Rack-mounted (standard 19” or dedicated system) |
| Dimensions (WxHxD) | 22 × 124 × 126 mm |
| Weight | 1.5 kg |
| Operating Temp. | 0 to 50°C |
| Storage Temp. | -20 to 70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of AIP502-S1?
A1: AIP502-S1 connects the Field Control Station (FCS) to the Yokogawa V-Net, enabling reliable real-time communication and redundancy.
Q2: Does the module support redundancy?
A2: Yes, AIP502-S1 supports redundant installation with two modules, ensuring automatic switching in case of failure.
Q3: How to verify the module is operating properly?
A3: Check the status LEDs (RCV, SND-L, SND-R). A green light indicates normal operation.
Q4: Does the module require an external power supply?
A4: No, it is powered by the control system rack and does not require separate power.
Q5: Can the AIP502-S1 be replaced independently?
A5: Yes, it supports hot-swapping. However, it’s recommended to switch to the standby unit before replacement.
Q6: What is the maximum communication distance supported?
A6: Up to 20 km with fiber optics; up to 500 meters using standard coaxial cables (10Base5/2).
Q7: Is the AIP502-S1 compatible with third-party systems?
A7: No, it is designed exclusively for Yokogawa’s CENTUM CS3000/VP systems.
Q8: Are there any restrictions on the installation position of the AIP502-S1 module?
A8: Yes, the AIP502-S1 must be installed in designated slots within the Field Control Station (FCS) rack, alongside the processor and control bus interface cards to ensure proper communication.
