Technical Specifications
| Item | Specification |
|---|---|
| Model | AIP504-10 |

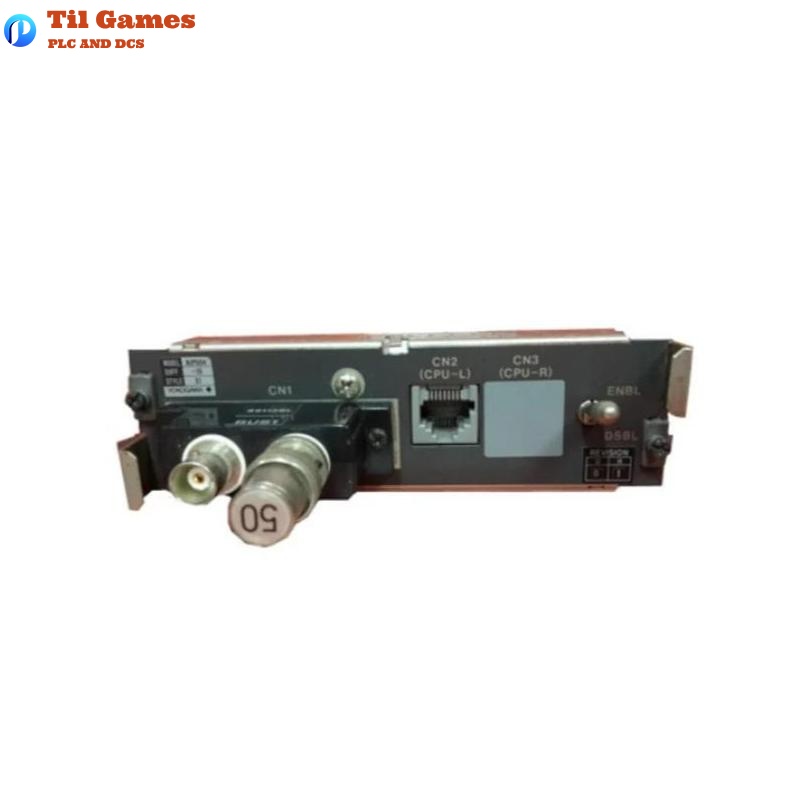

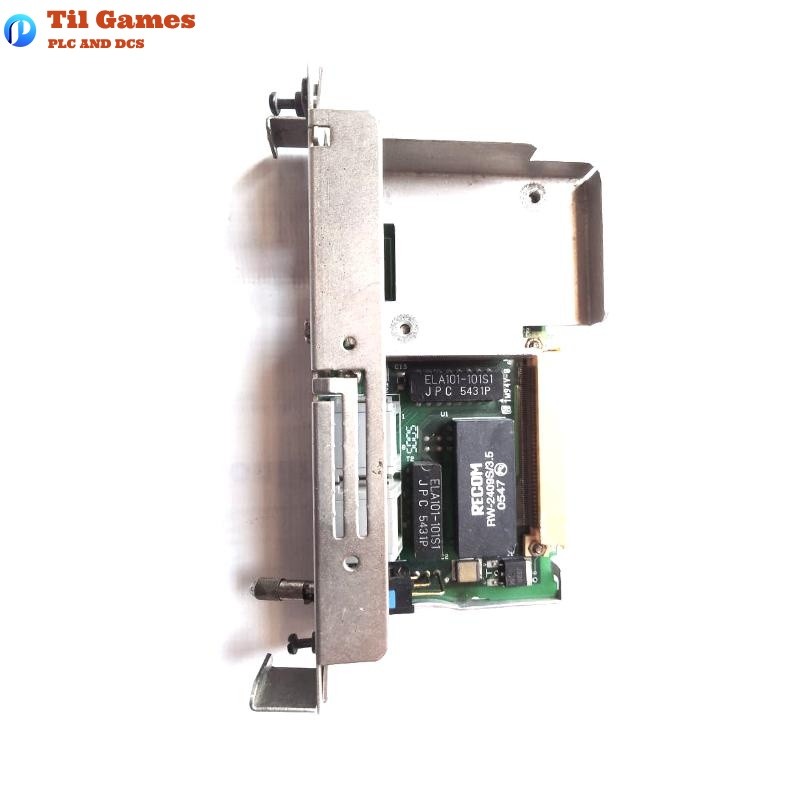

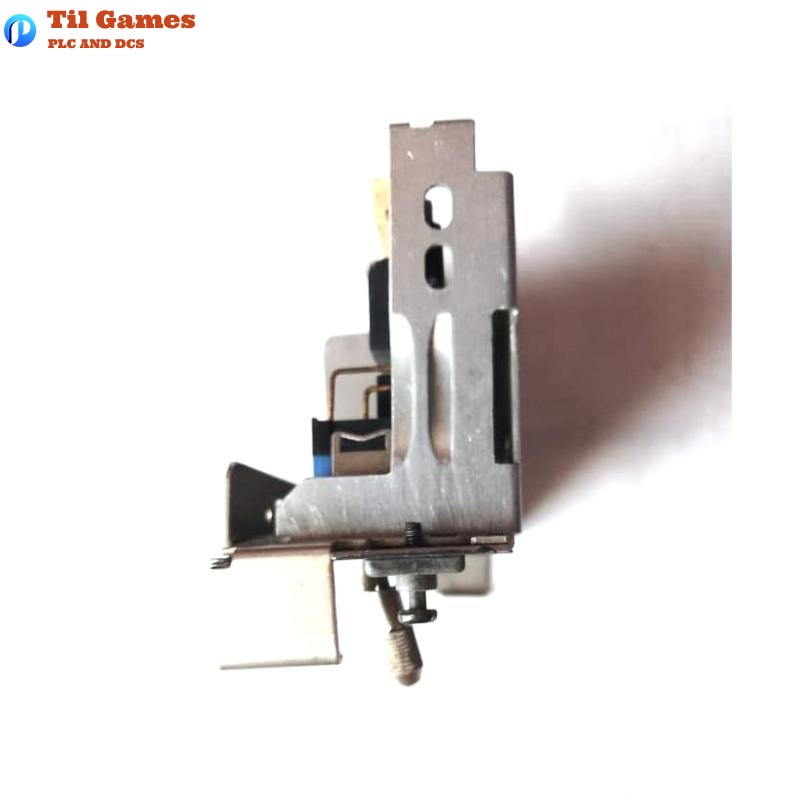

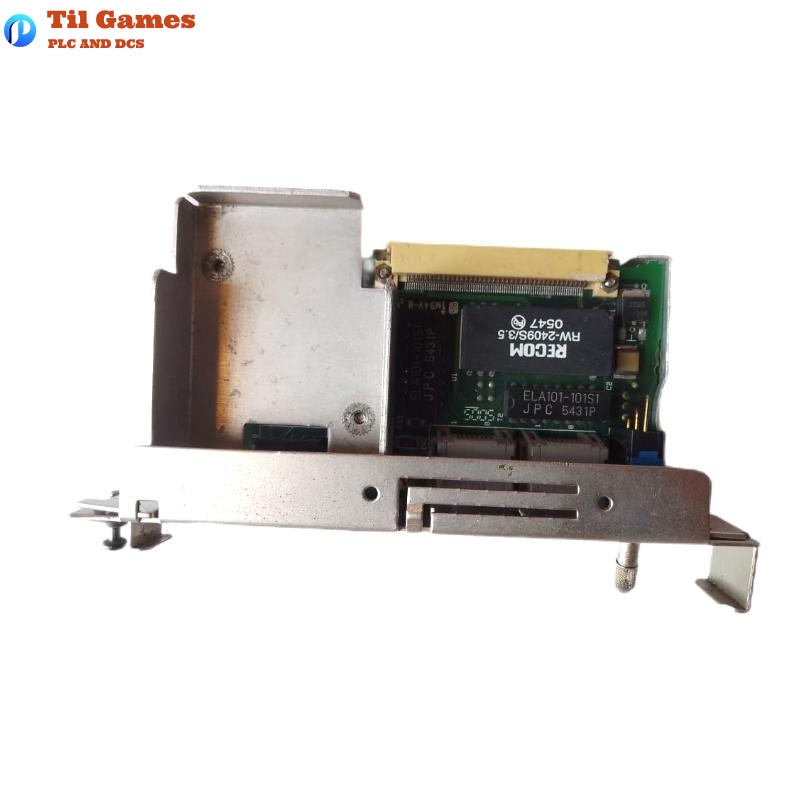

| Product Name | V-Net Coupler Unit |
| Connection Type | Coaxial cable (10BASE-2) |
| Interface Count | 2 BNC ports (for redundant V-Net) |
| Function | Coupling redundant V-Net links |
| Mounting | DIN rail mounting |
| Power Supply | 24 V DC (via system power) |
| Explosion Proof | Certified for FM, ATEX, IECEx Zone 2 |
| Operating Temp. | 0 to 55°C |
| Storage Temp. | -20 to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Class | IP30 (when installed in cabinet) |
| Dimensions | 100 × 100 × 43 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the AIP504-10?
A1: It serves as a redundant V-Net communication coupler in the ProSafe-RS system.
Q2: What types of network connections does the AIP504-10 support?
A2: It supports dual 10BASE-2 coaxial connections via BNC connectors.
Q3: Does the AIP504-10 support redundancy?
A3: Yes, it supports redundant communication channels for high availability.
Q4: What environments is the AIP504-10 suitable for?
A4: It is suitable for Zone 2 hazardous areas when installed in an IP54 or higher-rated cabinet.
Q5: Is the AIP504-10 explosion-proof certified?
A5: Yes, it complies with FM, ATEX, and IECEx Zone 2 standards.
Q6: What is the power requirement for the AIP504-10?
A6: It is powered by a 24 V DC supply from the system.
Q7: How is the AIP504-10 installed?
A7: It is mounted on a DIN rail inside a control cabinet.
Q8: What are the typical dimensions and weight of the AIP504-10?
A8: It measures 100 × 100 × 43 mm and weighs 0.5 kg.
