Technical Specifications
| Item | Description |
|---|---|

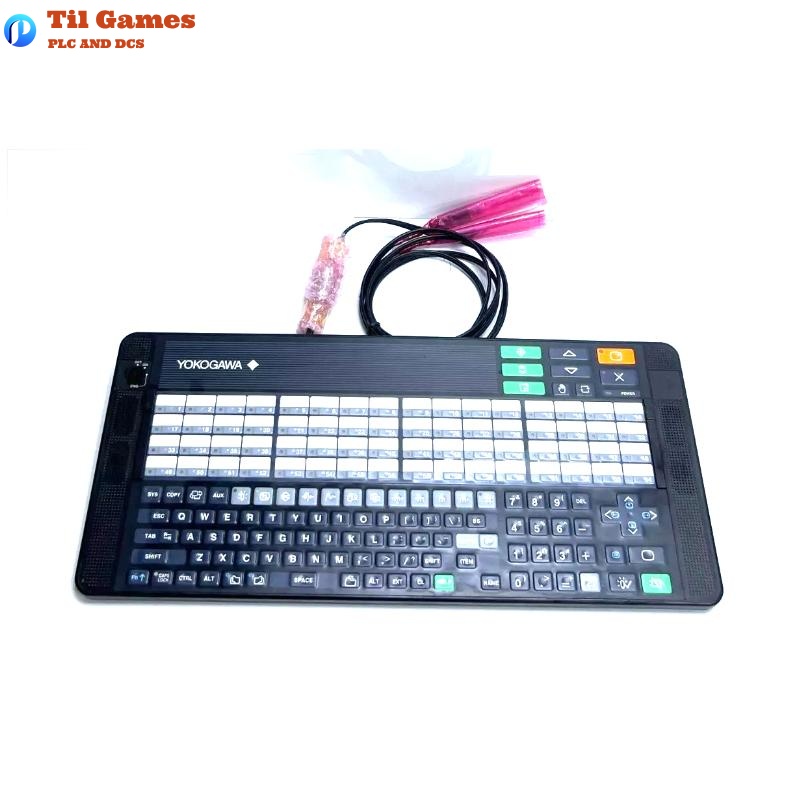

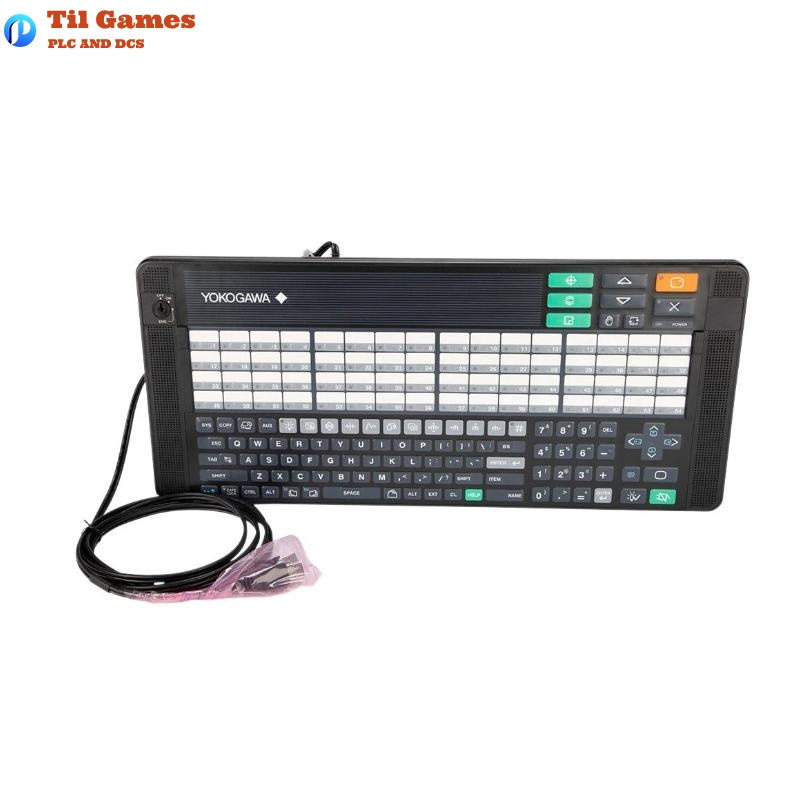

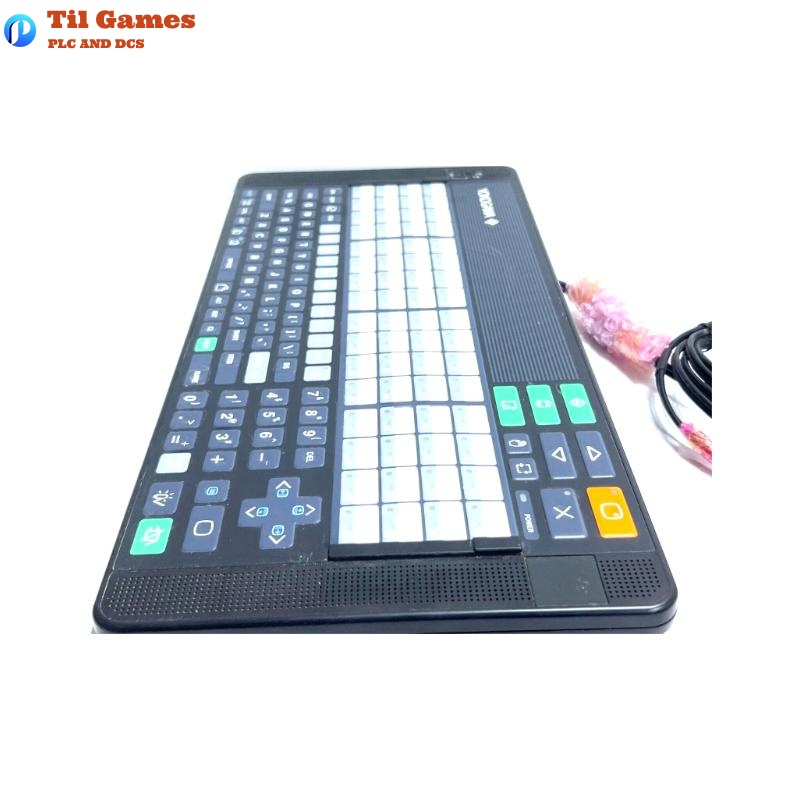

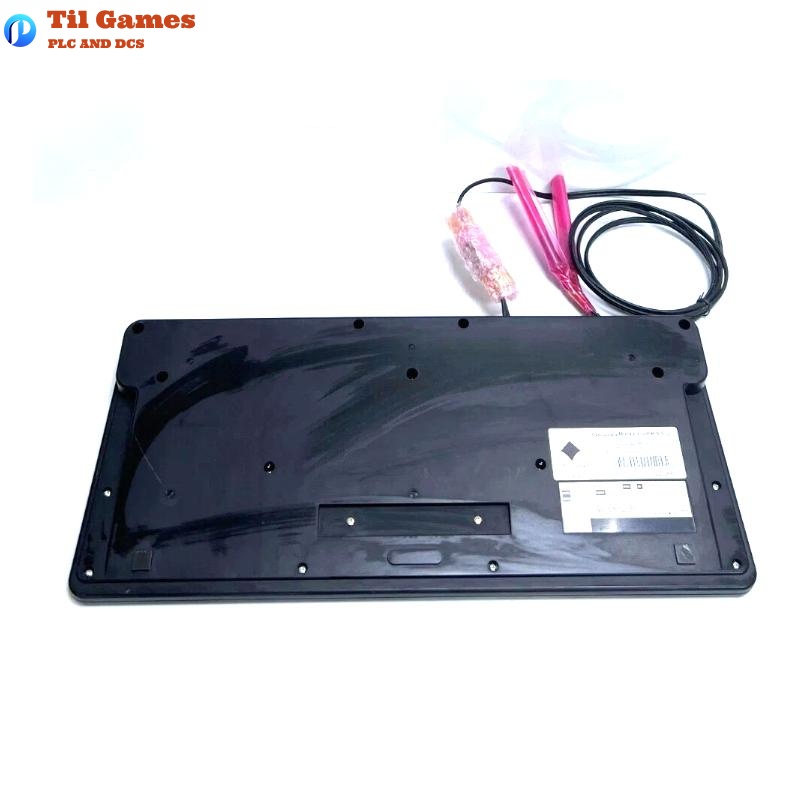

| Model | AIP830-101 |
| Keyboard Type | Flat keyboard (Sound Function: USB Speaker) |
| Interface | USB Type A x2 (must both be connected), USB 2.0 (keyboard), USB 1.1 (sound) |
| Input Voltage | 5 V ±5% (powered from PC USB port) |
| Max Current Consumption | 1 A |
| Operation Confirmation | Type A or Type B (selectable via suffix code) |
| Mode Selection Switch | Available or Not (depending on suffix code) |
| Operating Temperature | 5 to 40 °C (operation); -20 to 60 °C (storage/transportation) |
| Operating Humidity | 20 to 80 %RH (non-condensing) |
| Chassis Color | Black (Equivalent to Munsell No. N1.5) |
| Installation Category | IEC 61010-1 Class I (not directly connected to main power supply) |
| Dimensions (W x D x H) | 500 x 225 x 50 mm |
| Weight | 2.5 kg (with VESA bracket) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the AIP830-101 be used independently?
A1: No. It must be connected to a Desktop Type HIS, and only one AIP830 is supported per HIS.
Q2: Do both USB ports need to be connected?
A2: Yes, both USB Type A connectors must be plugged into the host PC simultaneously.
Q3: Is hot-swapping supported?
A3: Yes, but it is recommended to connect/disconnect only when the system permits to avoid functional issues.
Q4: Can the built-in speaker play arbitrary audio?
A4: No, the speaker is limited to system sounds and buzzer alarms.
Q5: Can keycaps be replaced or remapped?
A5: Keycap replacement is not supported, but 64 user-definable function keys are available for customization.
Q6: Can it be used with non-Yokogawa systems?
A6: Not recommended. It is designed for Yokogawa HIS and compatibility is not guaranteed with other systems.
Q7: Is VESA mounting supported?
A7: Yes, with optional VESA bracket, and the mount must support at least 10 kg.
Q8: Does it meet international safety and EMC standards?
A8: Yes, it complies with CSA, CE, EAC, RCM, KC, and other standards, provided the connected PC also has corresponding marks.
