Technical Specifications
| Item | Details |
|---|---|

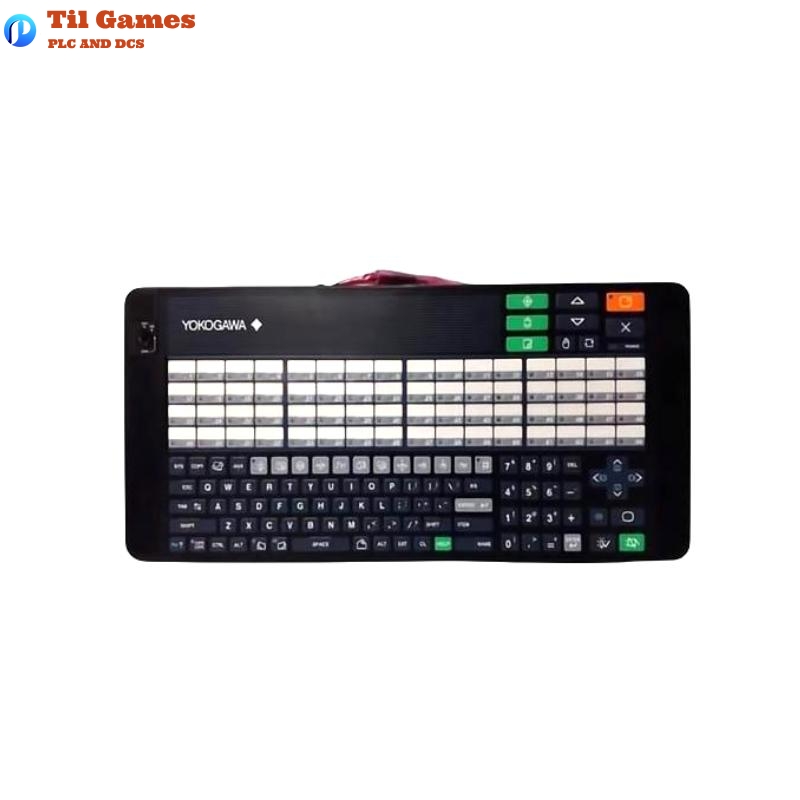

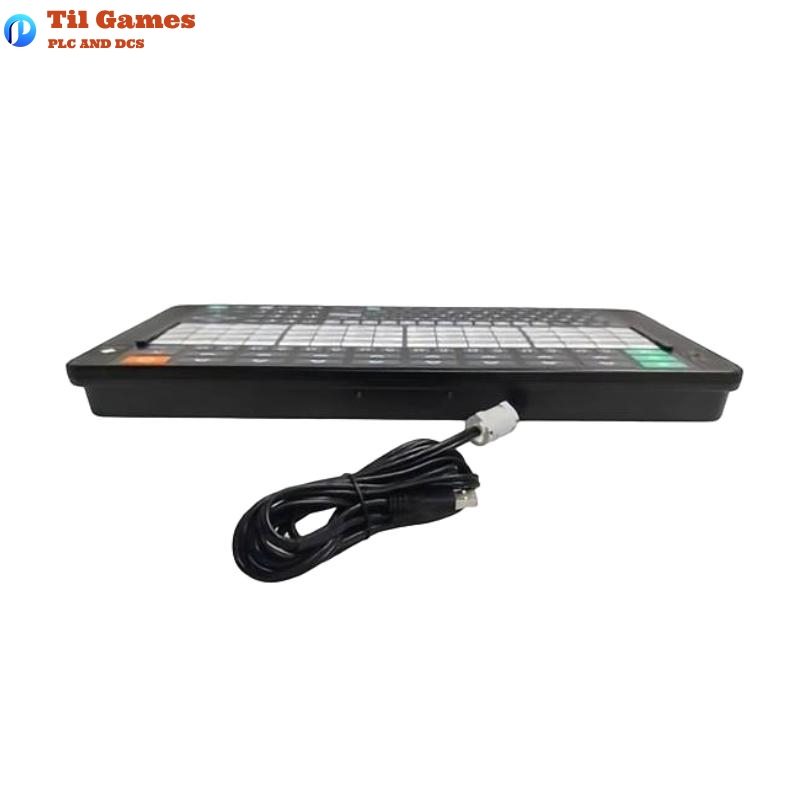

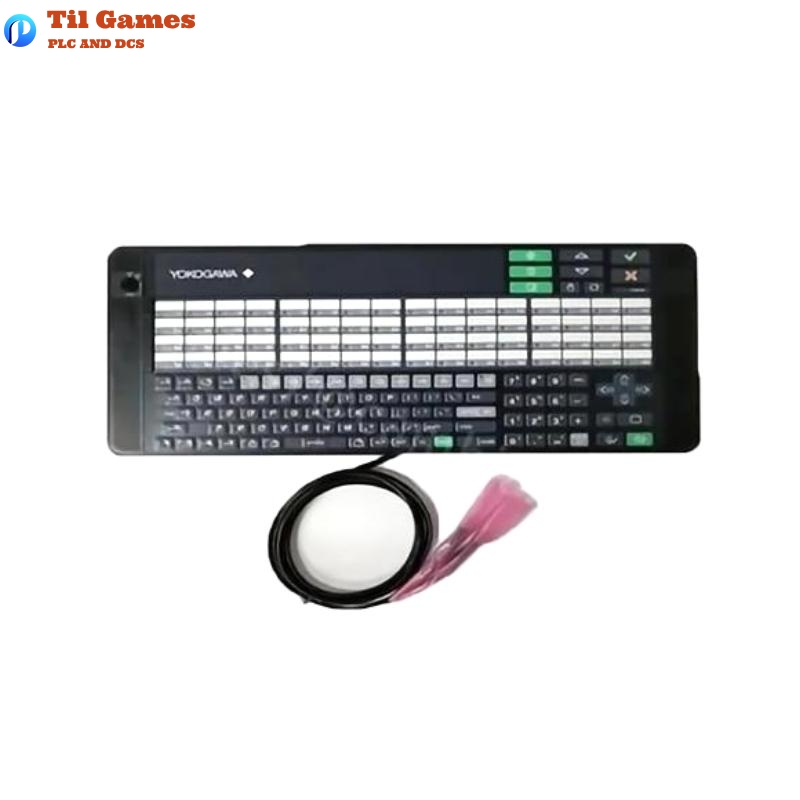

| Model | AIP831-101 |
| Type | Flat Operation Keyboard (with USB Speaker) |
| Interface Type | USB Type-A × 2 |
| Keyboard Interface | USB 2.0 (Full-speed, Bus-powered) |
| Audio Interface | USB 1.1 (Full-speed, Bus-powered) |
| Input Voltage | 5V ± 5% (Supplied from PC USB Port) |
| Max Current Consumption | 1A |
| Chassis Color | Black (Munsell No. N1.5) |
| Dimensions (W×D×H) | 500 × 225 × 44 mm |
| Weight | 2.5 kg (with VESA bracket) |
| Installation Category | IEC 61010-1 Class I (not directly connected to mains) |
| Operating Temperature | 5 to 40°C |
| Storage Temperature | -20 to 60°C |
| Humidity Range | 20 to 80% RH (Non-condensing) |
| Touch Sensor | Only detects bare-hand touch |
| Compliance | CSA, CE, C-Tick, KC (only valid when marked on PC) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is the AIP831-101 compatible with?
A: It is compatible only with CENTUM VP desktop HIS (R5.03 or later).
Q2: Is special software required to use the AIP831?
A: Yes, the LHS1140 Eight-loop Simultaneous Operation Package is required.
Q3: Does the keyboard support audio output?
A: Yes, it includes a USB speaker and electronic buzzer.
Q4: How many USB ports must be connected?
A: Both USB connectors must be connected to the host PC.
Q5: Does the touch sensor work with gloves?
A: No, the touch sensor only responds to bare-hand touches.
Q6: Is it connected directly to the main power supply?
A: No, it is powered via USB and does not connect to mains directly.
Q7: Can it be mounted with a VESA bracket?
A: Yes, it supports optional VESA mounting and requires support for at least 10 kg.
Q8: Can the keyboard be shared by multiple users?
A: No, one AIP831 is to be used with one desktop-type HIS only.
