Technical Specifications
| Item | Specification |
|---|---|

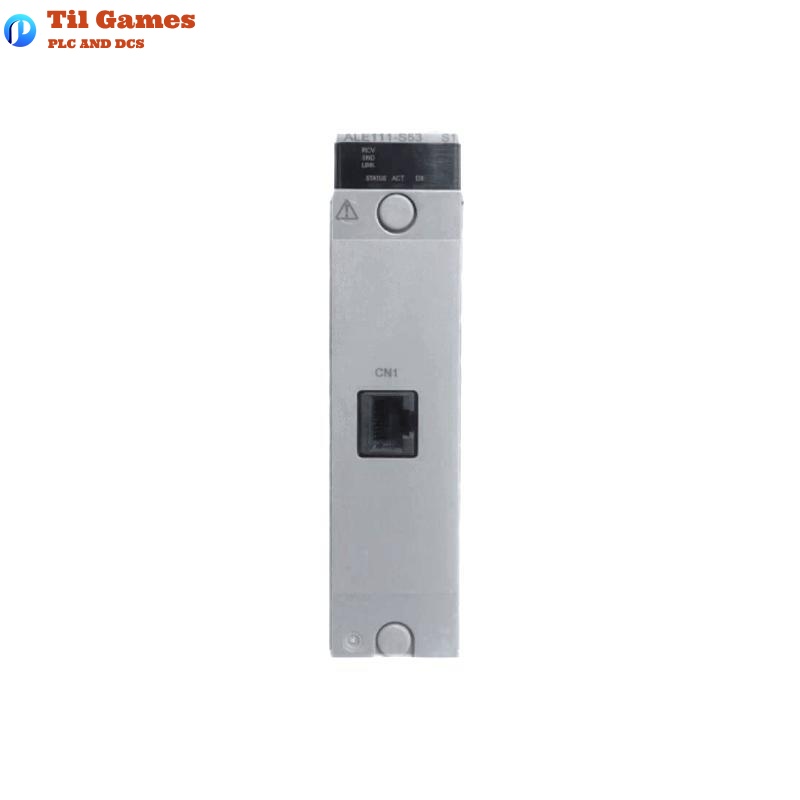

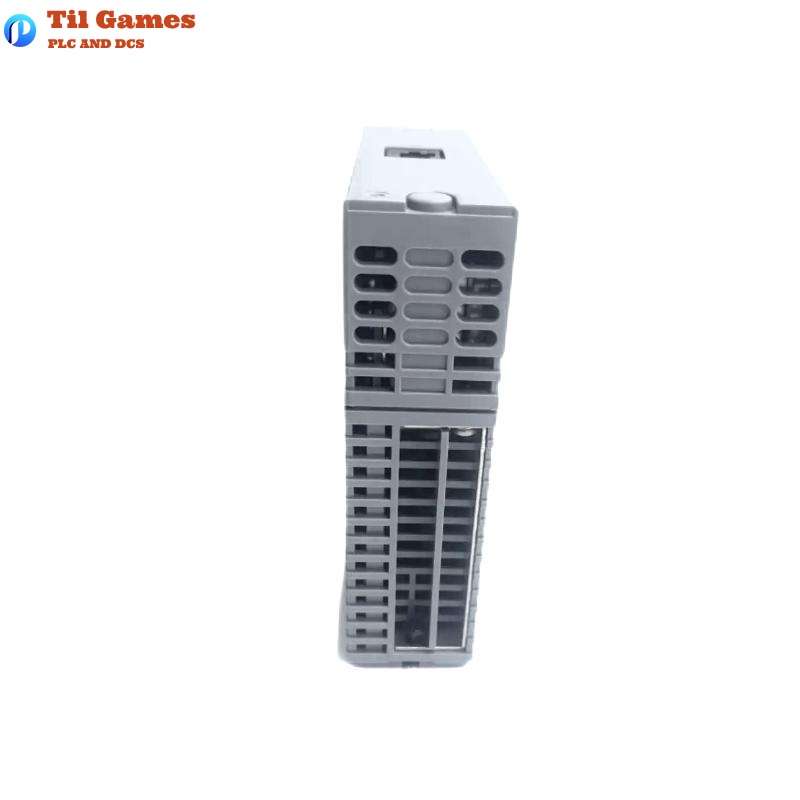

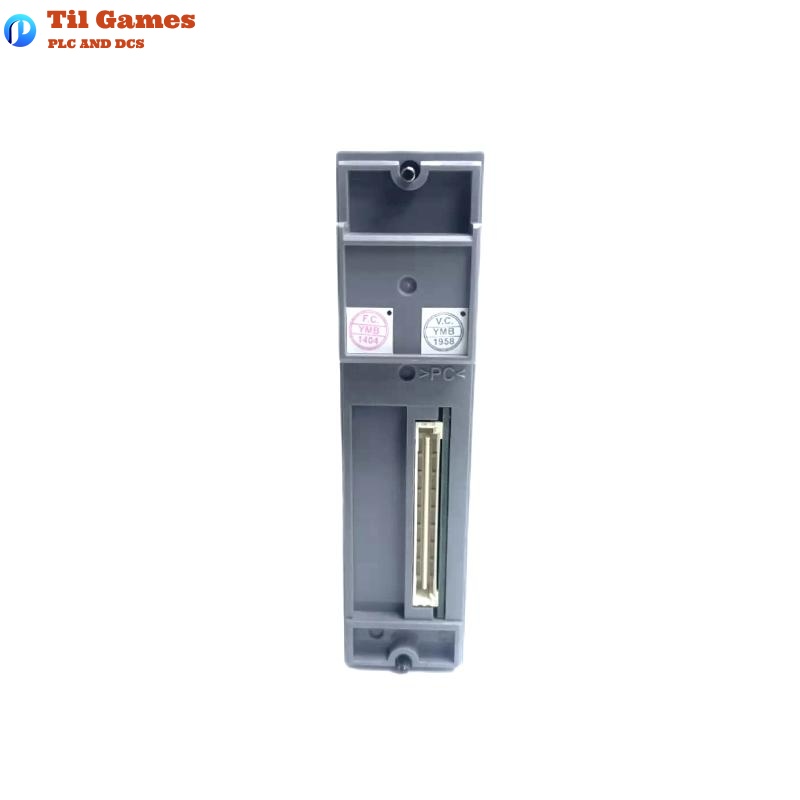

| Model | ALE111-S53 |
| Communication Protocol | TCP/IP |
| Physical Interface | IEEE802.3 10BASE-T |
| Connection Type | Point-to-point |
| Connector Type | RJ-45 |
| Transmission Mode | Half-duplex |
| Transmission Speed | 10 Mbps |
| Cable Type | 100Ω twisted-pair (unshielded) |
| Max Cable Length | 100 meters per segment |
| Mounting Compatibility | ANB10, ANB11, ANR10, AFF50, AFV10/30/40 |
| Number of Ports | 1 port |
| Media Access Control | CSMA/CD |
| Supported Protocols | FA-M3, Modbus, MELSEC, YFGW, DARWIN, PLC-5/SLC500 |
| Current Consumption | 0.5 A |
| Max Definitions | 128 definitions per ALE111 module |
| Data Capacity/Module | 1000 words |
| Max System Capacity | 8000 words/FCS (all communication modules) |
| Communication Functions | 1 function per ALE111 module (not simultaneous protocols) |
| Dimensions (W x H x D) | 130 x 125.5 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols are supported by the ALE111-S53?
A1: It supports FA-M3, Modbus/TCP, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500.
Q2: Does the module support dual-redundancy configuration?

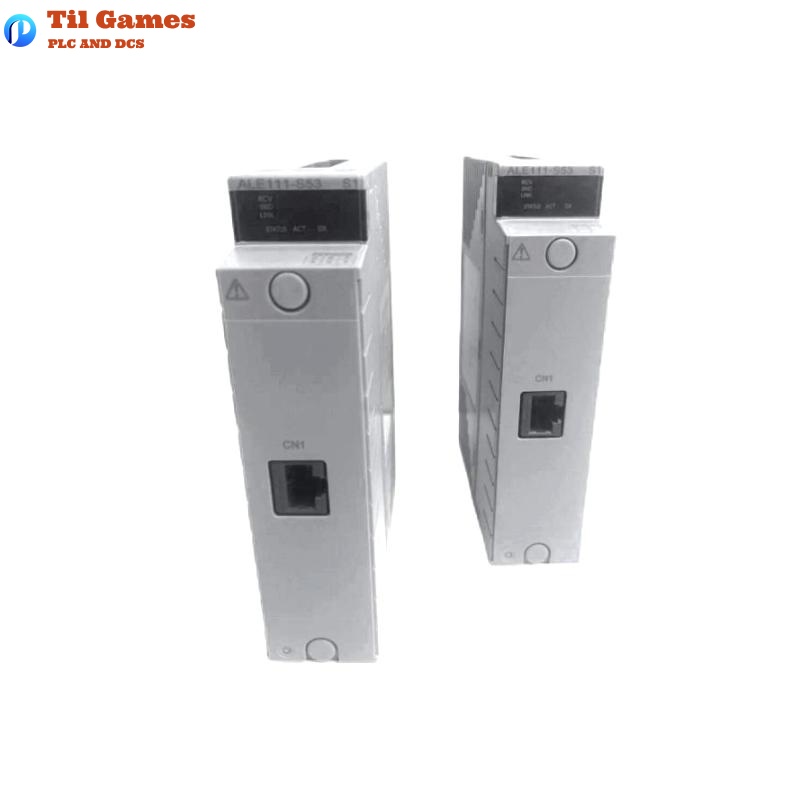

A2: Yes. Two ALE111 modules can be installed in adjacent slots for redundancy.
Q3: How many subsystem stations can be connected to one ALE111 module?
A3: Up to 30 subsystem stations per module.
Q4: What is the maximum data capacity supported by the module?
A4: 1000 words per module; up to 8000 words per FCS.
Q5: Can multiple communication protocols run on one ALE111 module?
A5: No. Each module supports only one communication function at a time.
Q6: How many communication definitions does the ALE111 support?
A6: Up to 128 definitions per module.
Q7: What type of cable does the module require?
A7: 100Ω unshielded twisted-pair cable.
Q8: Is the ALE111 compatible with PLC-5 and SLC500 systems?
A8: Yes. It supports communication with PLC-5/20E, 40E, 80E and SLC5/05 CPU modules.
