Technical Specifications
| Item | Specification |
|---|---|

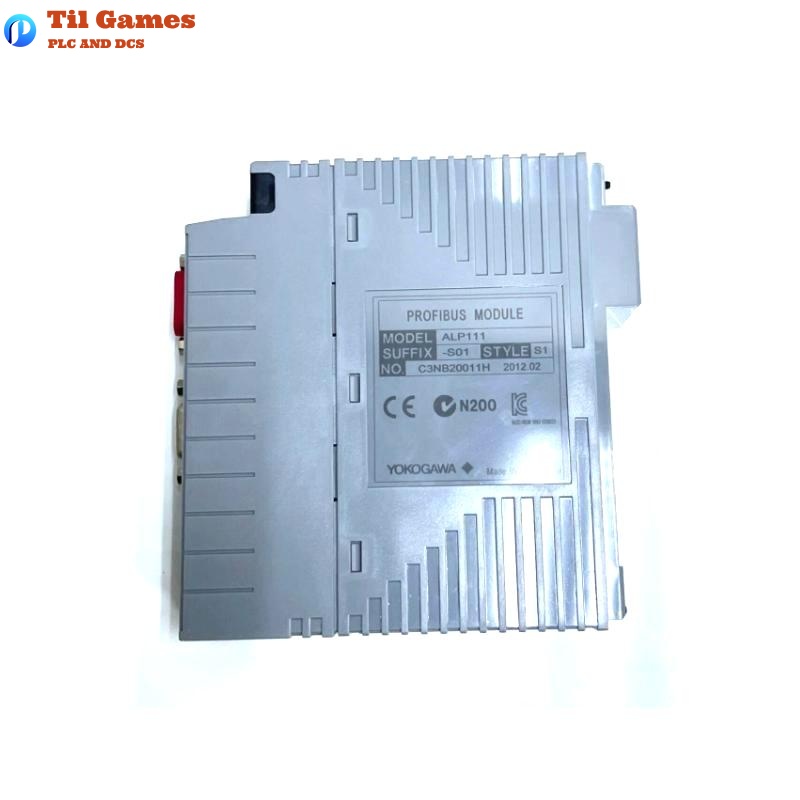

| Model | ALP111-S01 |
| Interface Type | PROFIBUS-DP |
| Connection Method | EIA-RS-485 compliant |
| Signal Isolation | Isolated |
| Transmission Speed | 9600 bps to 12 Mbps |
| Transmission Route | Shielded cable |
| Max Transmission Distance | 1.2 km per segment (at 9600 bps) |
| Number of Comm Ports | 1 port (plus maintenance port) |

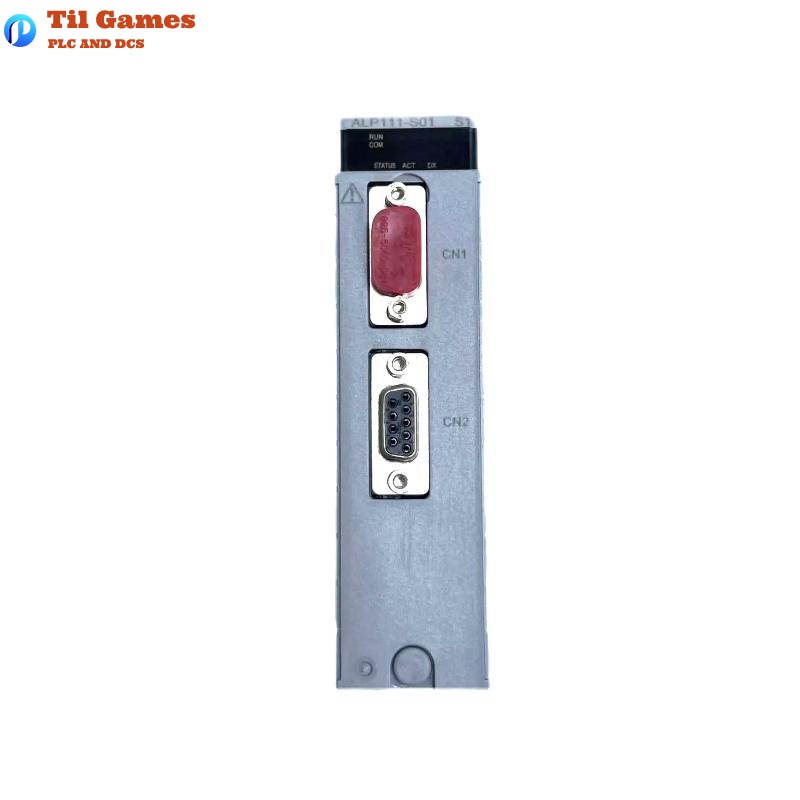

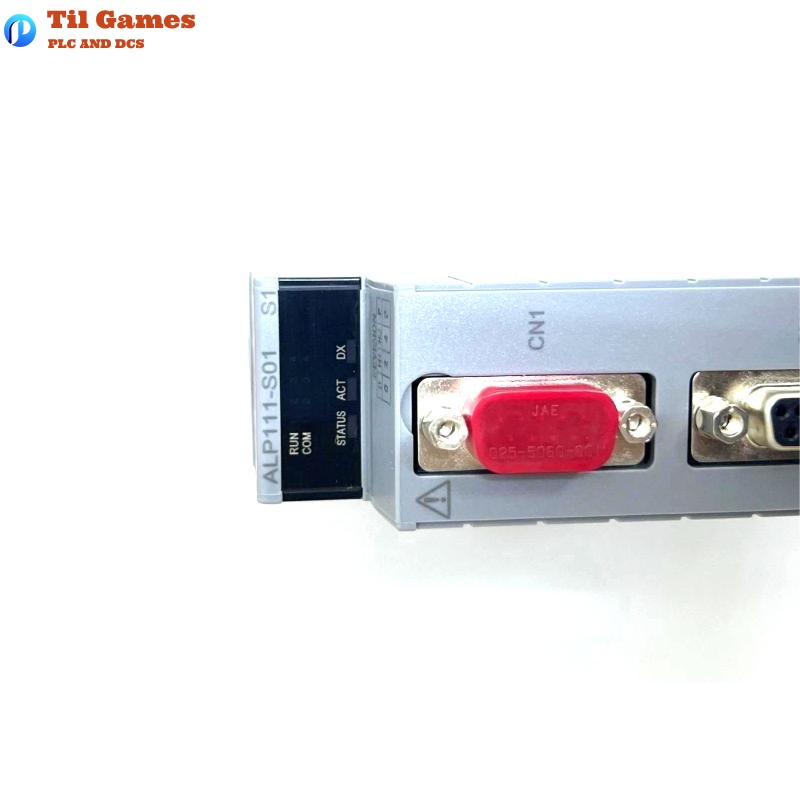

| Communication Port | D-sub 9-pin (female) |
| Maintenance Port | D-sub 9-pin (male), RS-232C interface |
| Max Current Consumption | 0.7 A |
| Communication I/O Capacity | 1000 words/module |
| Max Comm Definitions | 200 definitions/module |
| Max Slave Devices | 31 without repeaters, up to 125 with repeaters |
| Max Comm Functions | 8 types/FCS |
| Dimensions | 130 × 129.5 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which Yokogawa control stations support ALP111-S01?
A1: It is compatible with AFV30, AFV40, AFV10, and AFF50 stations, as well as ESB/ER bus node units.
Q2: Does ALP111-S01 support dual-redundancy?
A2: Yes, dual-redundant configuration is supported by installing two units in adjacent slots.
Q3: Which software is compatible with ALP111-S01?
A3: Supported control software includes LFS1700, LFS1500, LFS1330, and LFS1350. Configuration uses SyCon-PB/YOKO.
Q4: What is the purpose of the maintenance port?
A4: It is used for local maintenance and diagnostics via a standard RS-232C interface.
Q5: What is the maximum number of slave devices for ALP111-S01?
A5: Up to 31 slaves without repeaters, and up to 125 with repeaters (max 3 repeaters).
Q6: Can ALP111-S01 and ALP121 be used in the same FCS?
A6: No, they cannot be mounted in the same FCS but can coexist in the same project.
Q7: What type of connector is used for the communication port?
A7: A D-sub 9-pin female connector compliant with PROFIBUS standards is used.
Q8: What tools are required for engineering with ALP111-S01?
A8: Engineering is performed using SyCon-PB/YOKO for PROFIBUS definition and CENTUM VP for downloading settings.
