Technical Specifications
| Item | Specification |
|---|---|

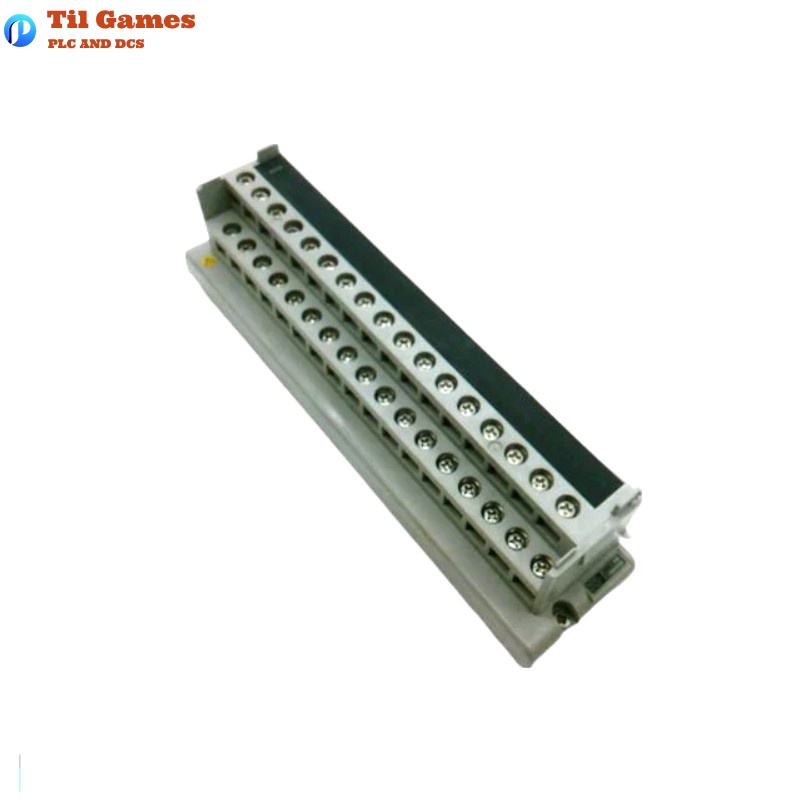

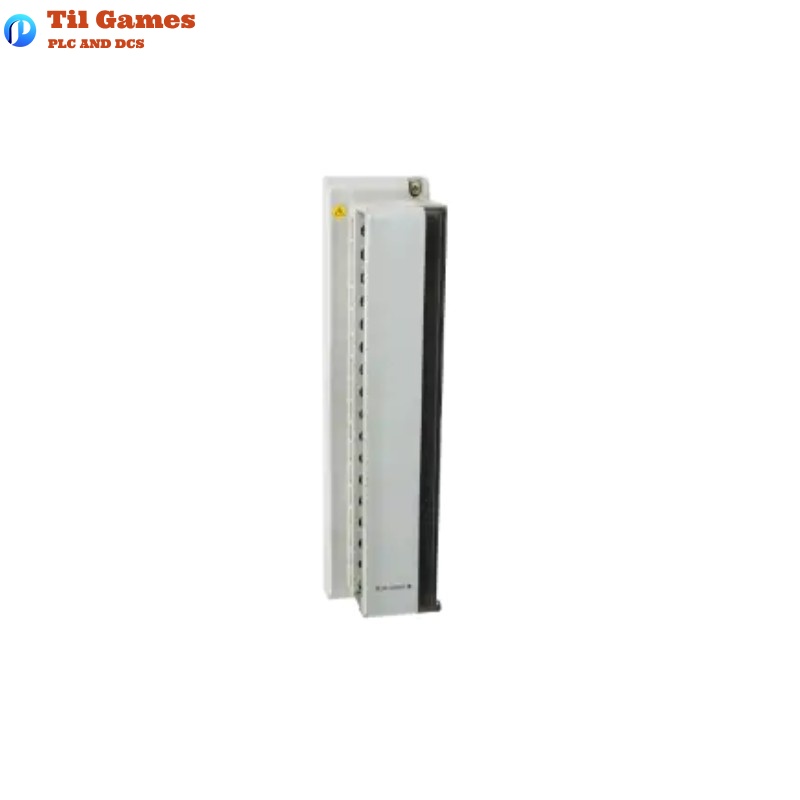

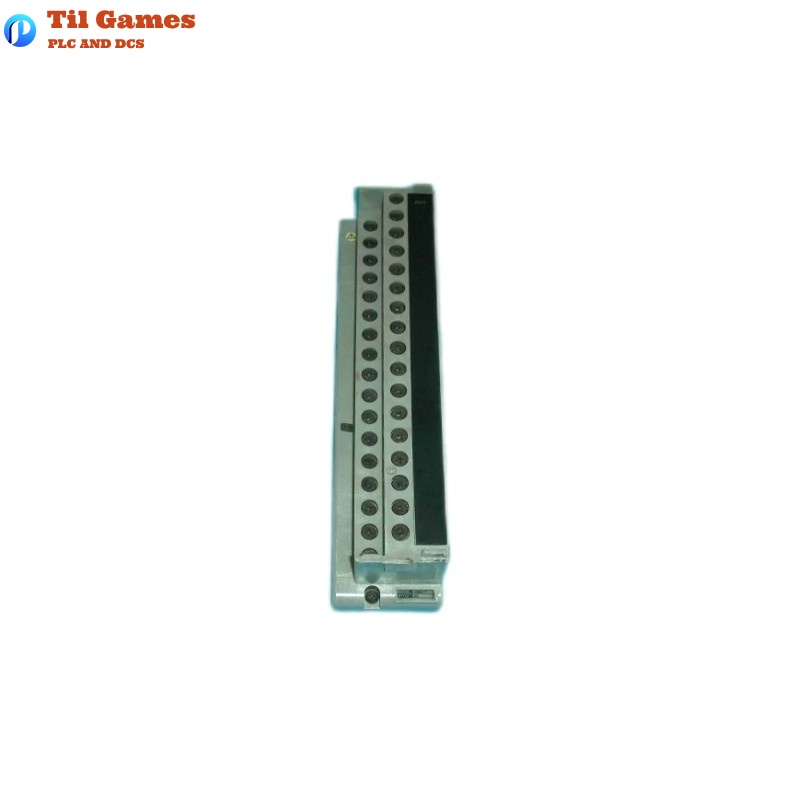

| Model Number | AMM21T |
| Module Type | Thermocouple Input Multiplexer Module |
| Number of Input Channels | 16 channels |
| Input Signal Type | Thermocouple (TC) |
| Supported Standards | Compliant with IEC584-1995 |
| Cold Junction Compensation | Built-in |
| Mounting Method | Pluggable into multiplexer nest (e.g., AMN34) |
| Communication Method | Via Node Interface Unit (e.g., AND20, AND50) |
| Power Supply | Provided via Node Interface Unit |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Dimensions (W×H×D) | 120 × 90 × 35 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What thermocouple types are supported by the AMM21T module?
A1: The AMM21T supports standard thermocouple types as defined in IEC584-1995, including types K, J, T, E, B, R, and S.
Q2: How many channels are available on the AMM21T?
A2: The module offers 16 individual thermocouple input channels.
Q3: Does the AMM21T have cold junction compensation built in?
A3: Yes, it includes integrated cold junction compensation to ensure accurate thermocouple readings.
Q4: How is the AMM21T module connected within the system?
A4: It is installed in a multiplexer I/O nest (e.g., AMN34) and communicates with the control system via a Node Interface Unit.
Q5: Is this module compatible with legacy RIO systems?
A5: Yes, the AMM21T is designed to work with CENTUM RIO systems and supports backward compatibility with existing field wiring.
Q6: Can this module be used in redundant configurations?
A6: While the module itself is not redundant, system-level redundancy can be achieved through architecture-level design.
Q7: How is the AMM21T physically installed?
A7: It is mounted by plugging into a compatible I/O nest and secured within a cabinet or rack system.
Q8: What are the environmental requirements for the AMM21T?
A8: It must be operated within 0 to 50°C and stored between -20 to 70°C in a dry, non-condensing environment.
