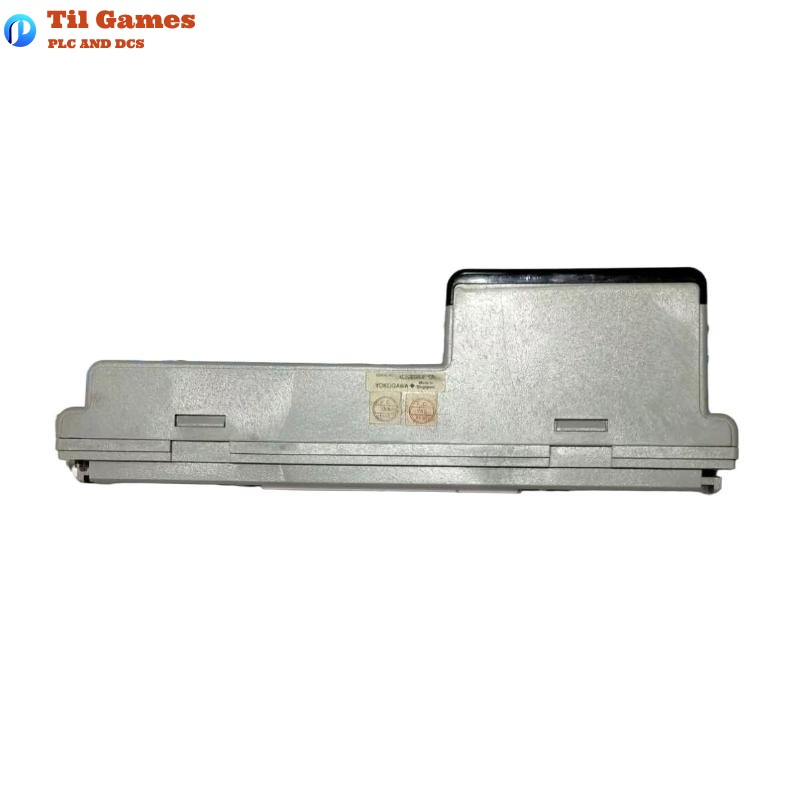

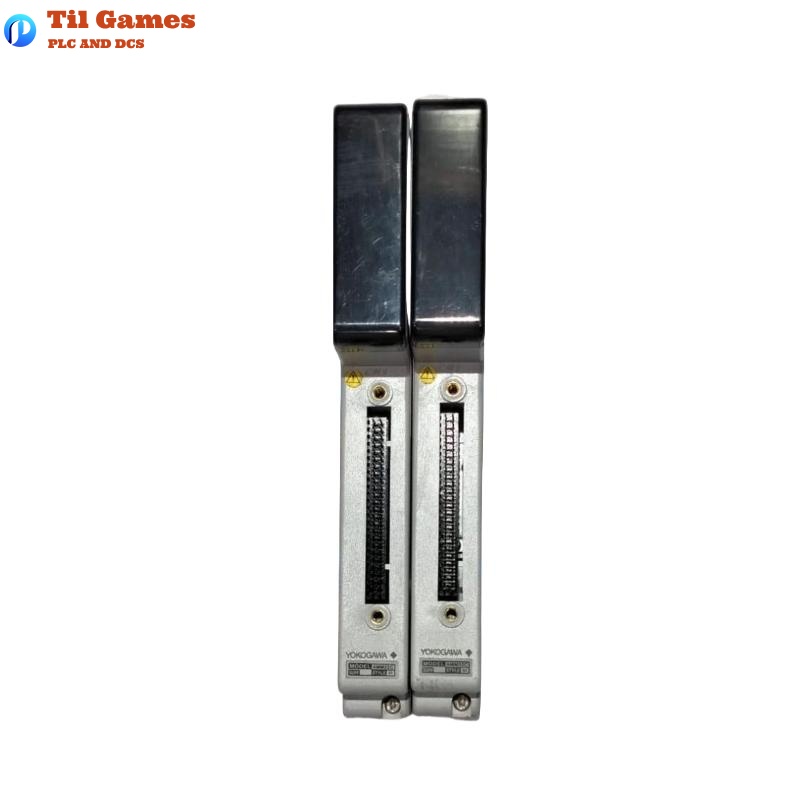

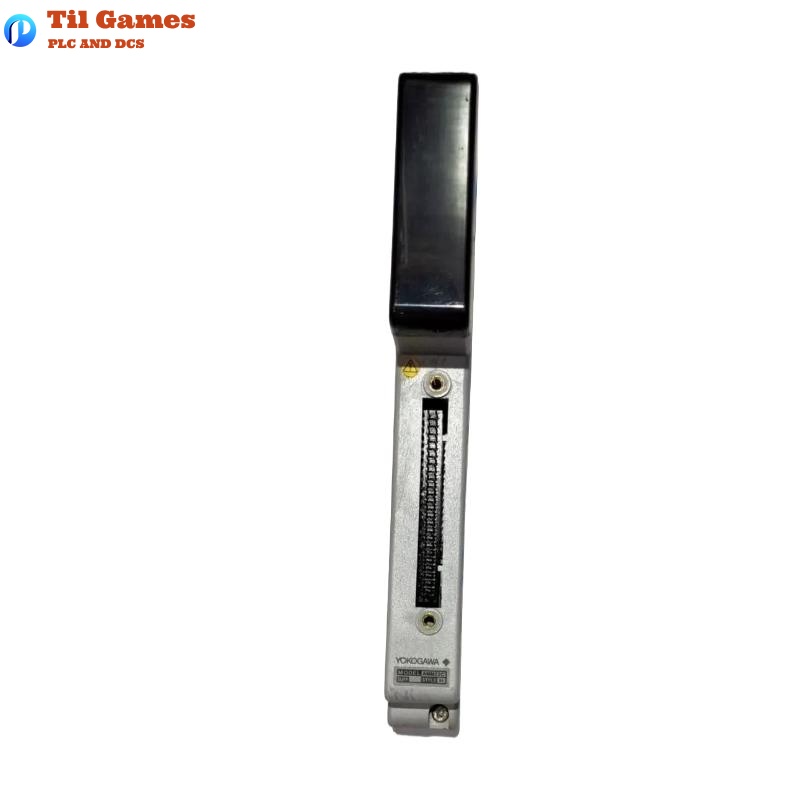

Yokogawa AMM32C Digital Input Module

FAQ

Q1: What types of RTD sensors are supported?
A1: JIS JPt100 and JIS Pt100 (DIN Pt100) 3-wire RTDs are supported.

Q2: What is the input temperature range of the module?
A2: The input range is from -200 to 600 °C.

Q3: Does the module support disconnection detection?
A3: Yes, it includes disconnection detection with a detection current of 0.1 µA.

Q4: In which I/O nest should the module be installed?
A4: It must be installed in the AMN31 I/O module nest (Connector type).

Q5: What is the power consumption of the module?
A5: The maximum power consumption is 500 mA at 5.0 V DC.

Q6: Is input signal isolation provided?
A6: Yes, the input signals are isolated from the system with a withstand voltage of 1500 V AC/min.

Q7: How is the input signal type and range configured?
A7: The input type and range are configured through software.

Q8: How should the wiring be connected?
A8: Use M4 screws to connect the wiring to the terminal block of the I/O module nest.
