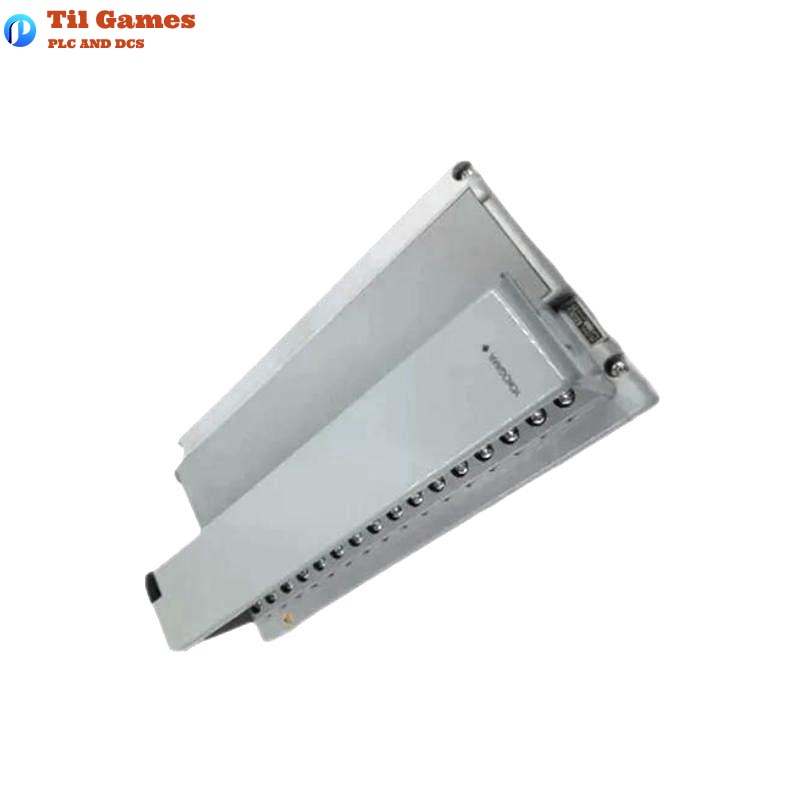

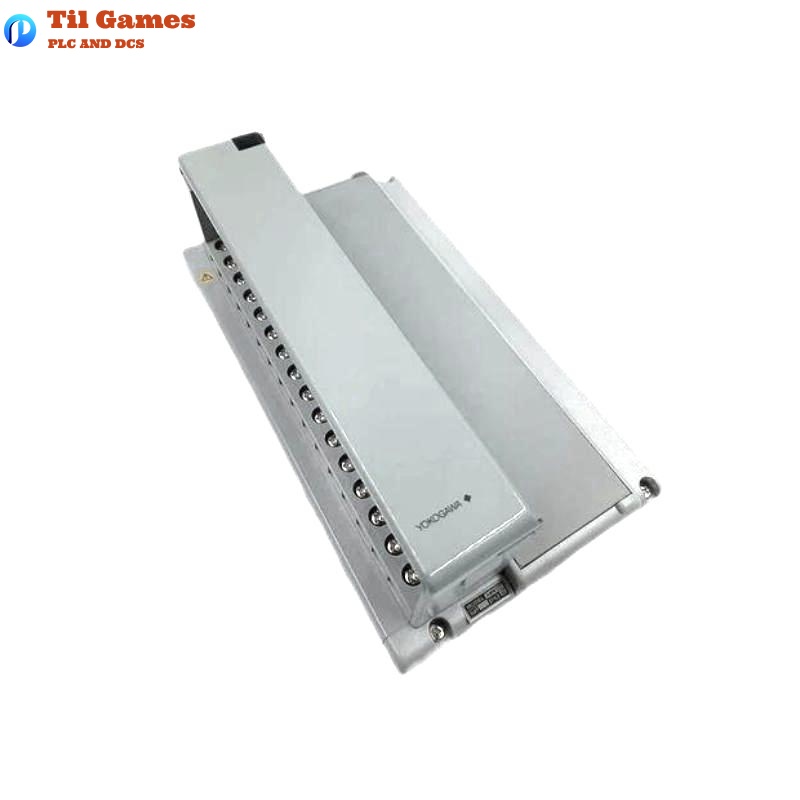

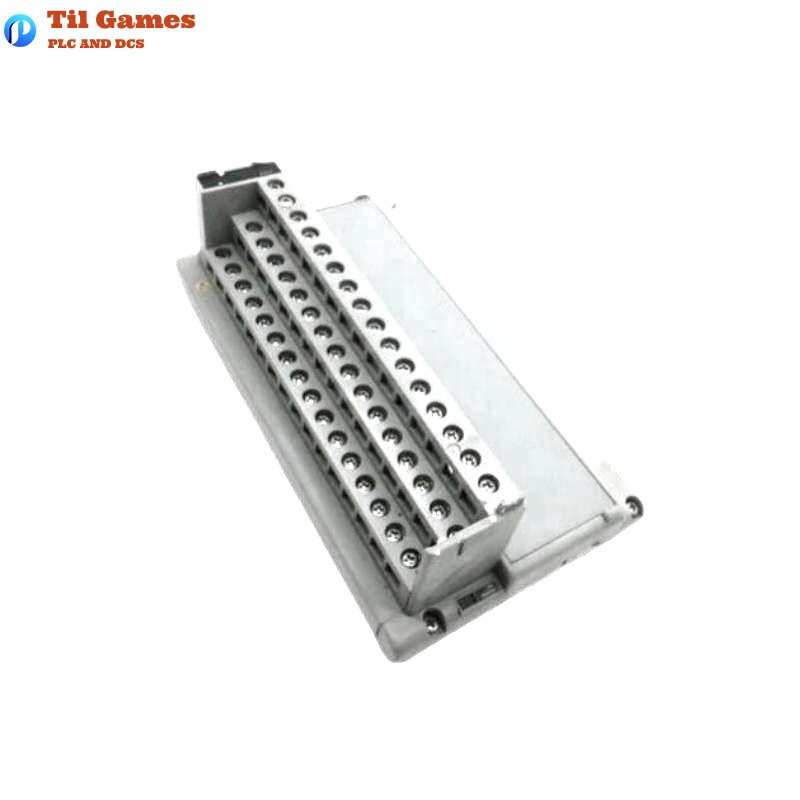

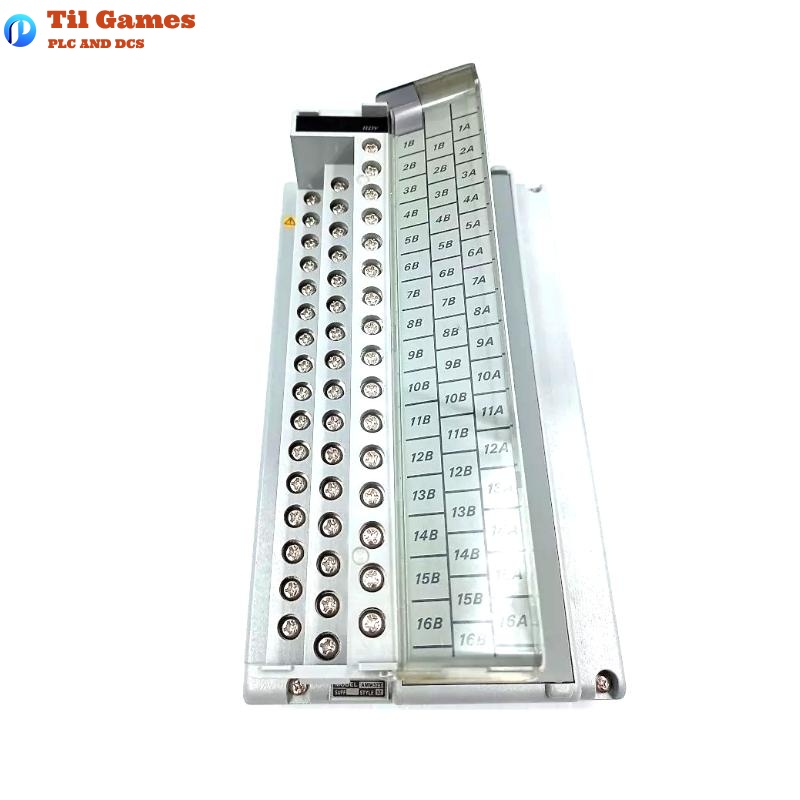

Yokogawa AMM32TJ RTD Input Multiplexer Module

Manufacturer：Yokogawa

Product Number：AMM32TJ

Product Type：RTD Input Multiplexer Module

Origin：Japan

Dimensions：125 x 130 x 248 mm

Weight：2kg

Frequently Asked Questions (FAQ)

Q1: What types of RTD sensors does the AMM32TJ support?
A1: It supports 3-wire RTDs of JIS JPt100 and JIS Pt100 (DIN Pt100) standards.

Q2: Is signal isolation provided in the AMM32TJ module?
A2: Yes, all input signals are isolated from the system with a dielectric strength of 1500 V AC/min.

Q3: How many input points can the AMM32TJ handle?
A3: The module supports up to 16 input points.

Q4: How is the module installed?
A4: The AMM32TJ must be mounted in an I/O module nest and connected using M4 screws.

Q5: Can the input signal type be configured via software?
A5: Yes, both the input type and range are configurable through system software.

Q6: Is parallel input connection allowed?
A6: No, input channels must be used independently.

Q7: What is the data update cycle of this module?
A7: The data update cycle is 1 second.

Q8: Does the module support disconnection detection?
A8: Yes, it supports disconnection detection with a max delay of 20 seconds and 0.1 μA detection current.

AMM32TJ RTD Input Multiplexer Module Yokogawa
