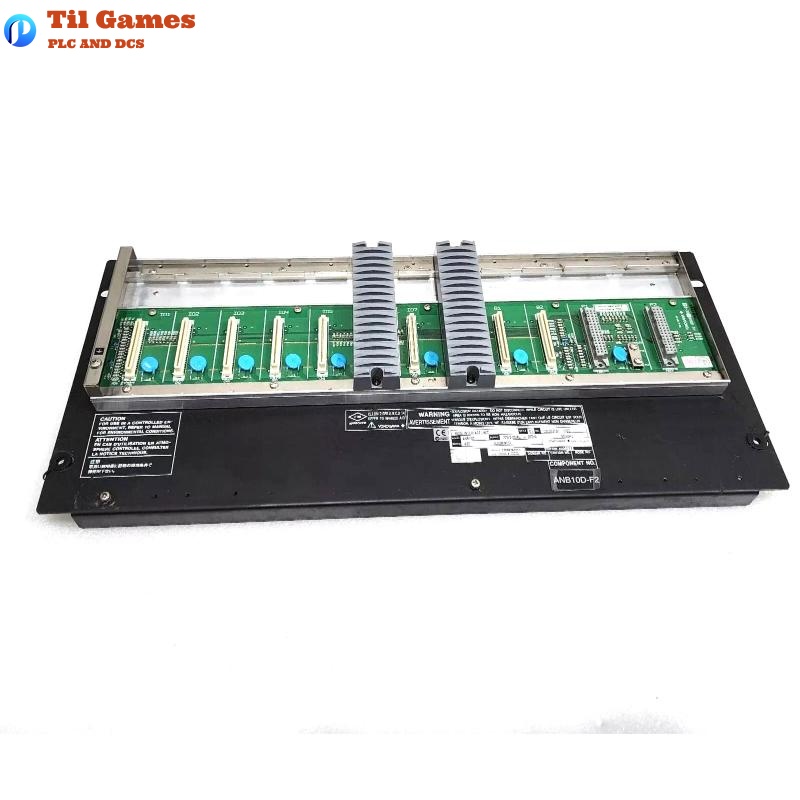

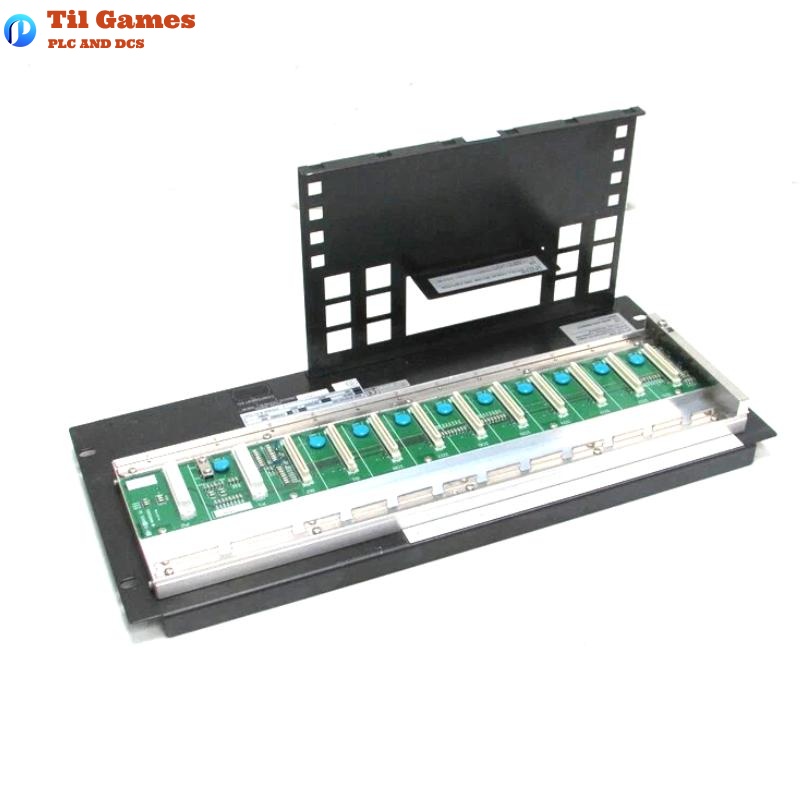

Yokogawa ANB10D-415/CU2N ESB Bus Node Unit

FAQ

Q1: What is the power supply requirement for the ANB10D?
A1: The ANB10D can operate with 100-120 V AC, 220-240 V AC, or 24 V DC power supply, depending on the configuration selected.

Q2: How many I/O modules can be installed on the ANB10D?
A2: The ANB10D supports a maximum of 8 I/O modules.

Q3: What is the weight of the ANB10D?
A3: The ANB10D weighs approximately 10 kg, including 8 I/O modules.

Q4: What is the recommended mounting method for the ANB10D?

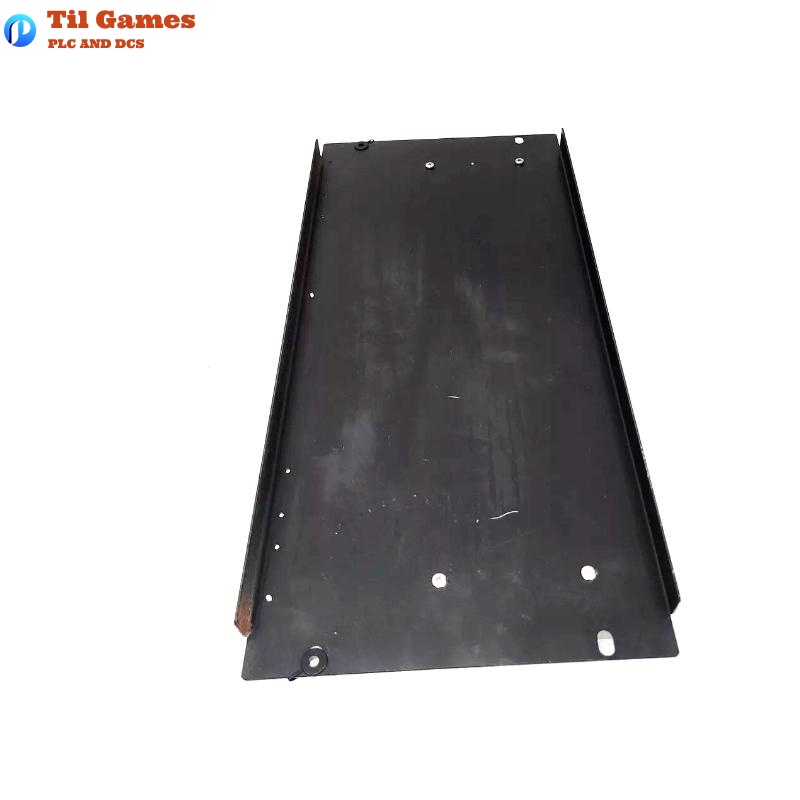

A4: The ANB10D should be mounted on a 19-inch rack using M5 x 4 screws. An insulation base is included as an accessory.

Q5: What are the environmental conditions for the ANB10D?
A5: The ANB10D is designed for use in environments with an operating temperature range from -20°C to 70°C.

Q6: Can the ANB10D be used with a dual-redundant configuration?
A6: Yes, the ANB10D supports dual-redundant power supply and ESB bus interfaces.

Q7: How is the ANB10D connected to the Field Control Unit (FCU)?
A7: The ANB10D is connected to the FCU via an ESB bus using the ESB Bus Coupler Module (EC401 or EC402).

Q8: What is the maximum number of ANB10D units that can be connected to an FCU?
A8: Depending on the FCU model, up to 8 ANB10D units can be connected to an FCU. Specific limits apply based on the FCU’s configuration.
