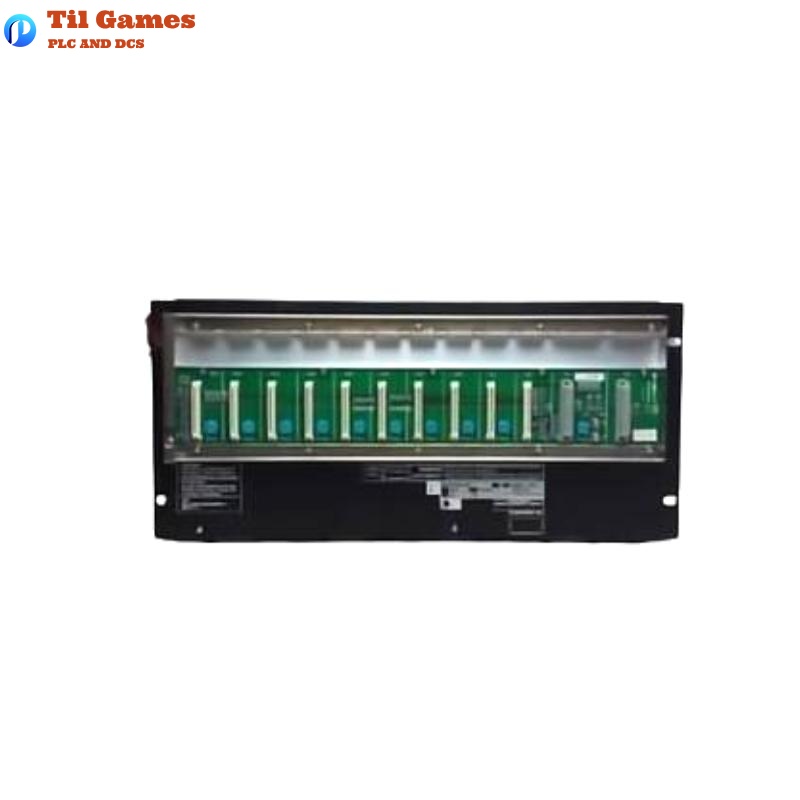

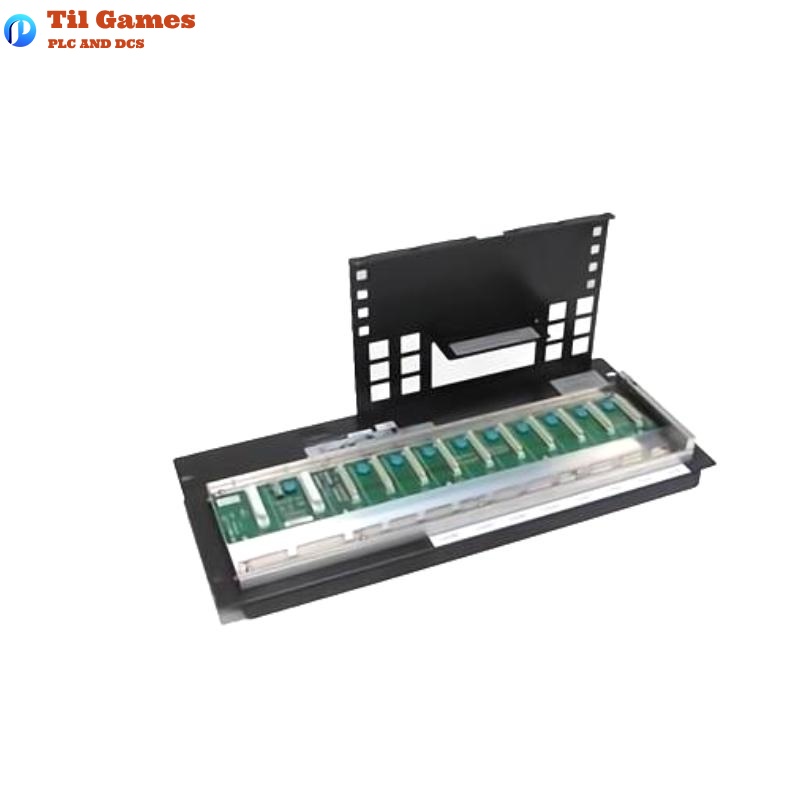

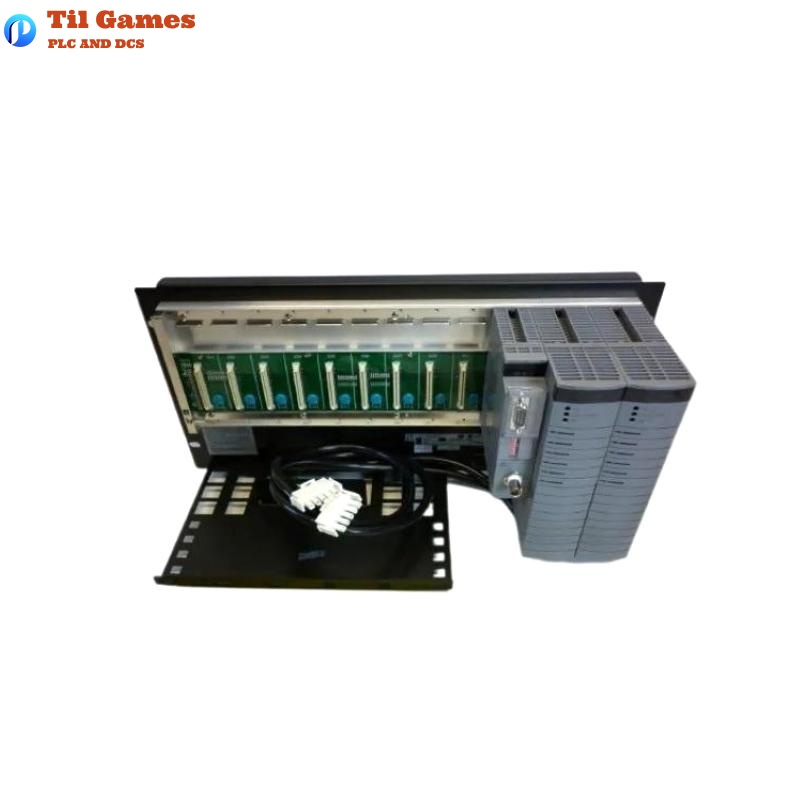

Yokogawa ANR10D-420/ATDOC/NDEL Bus Node Unit

Manufacturer：Yokogawa

Product Number：ANR10D-420/ATDOC/NDEL

Product Type：Bus Node Unit

Origin：Japan

Dimensions：482.6 × 221.5 × 205 mm

Weight：10 kg

FAQs

Q1: What is the primary function of the ANR10D Bus Node Unit?
A1: It acts as a communication interface between the ER Bus and other node units or controllers in the CENTUM VP system.

Q2: How many ANR10D units can be connected to one ER Bus?
A2: Up to 8 ANR10D units can be connected per ER Bus segment.

Q3: What kind of communication cable is used for ANR10D?
A3: It uses coaxial cables YCB141 or YCB311, with adapters as necessary.

Q4: Is the ANR10D capable of dual-redundant communication?
A4: Yes, it supports both single and dual-redundant transmission modes.

Q5: What is the maximum communication distance for ANR10D using YCB141 cable?
A5: The maximum distance is 185 meters.

Q6: What environmental conditions does ANR10D support?
A6: It supports temperatures from 0 to 50°C and humidity from 10–90% RH without condensation.

Q7: Can the ER Bus be extended beyond 185 m?
A7: Extension is possible using YCB311 with adapters, within calculated limitations.

Q8: What are the physical dimensions and weight of the unit?
A8: The unit measures 482.6 × 221.5 × 205 mm and weighs 10 kg.
