Technical Specifications
| Parameter | Description |
|---|---|

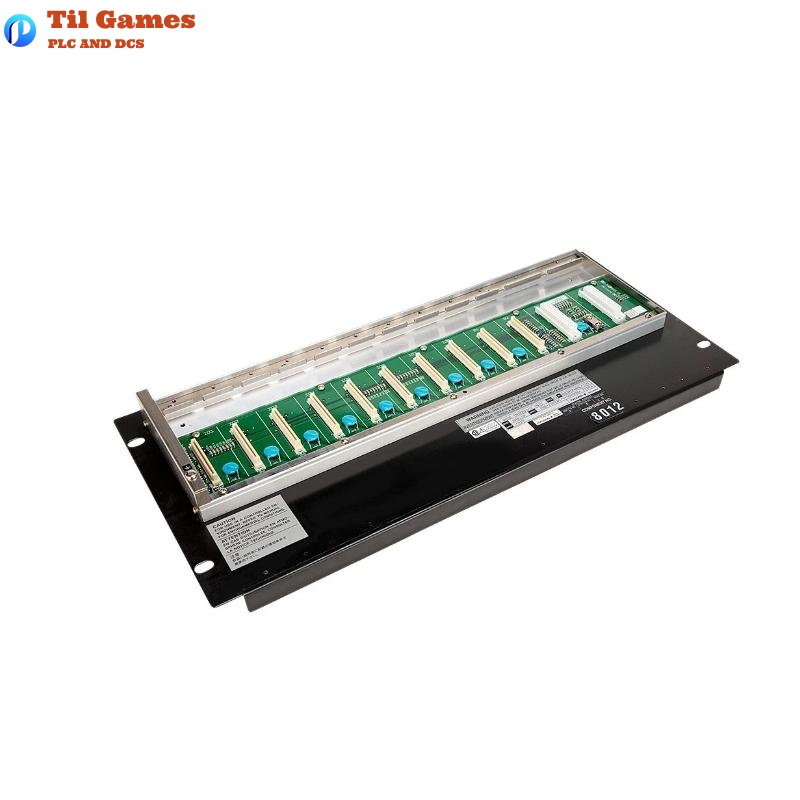

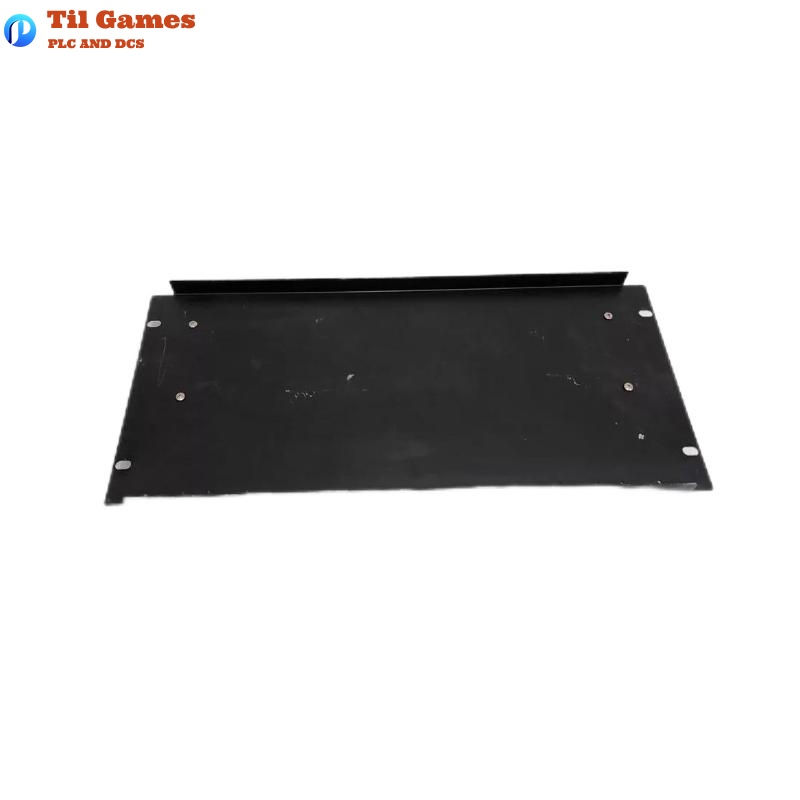

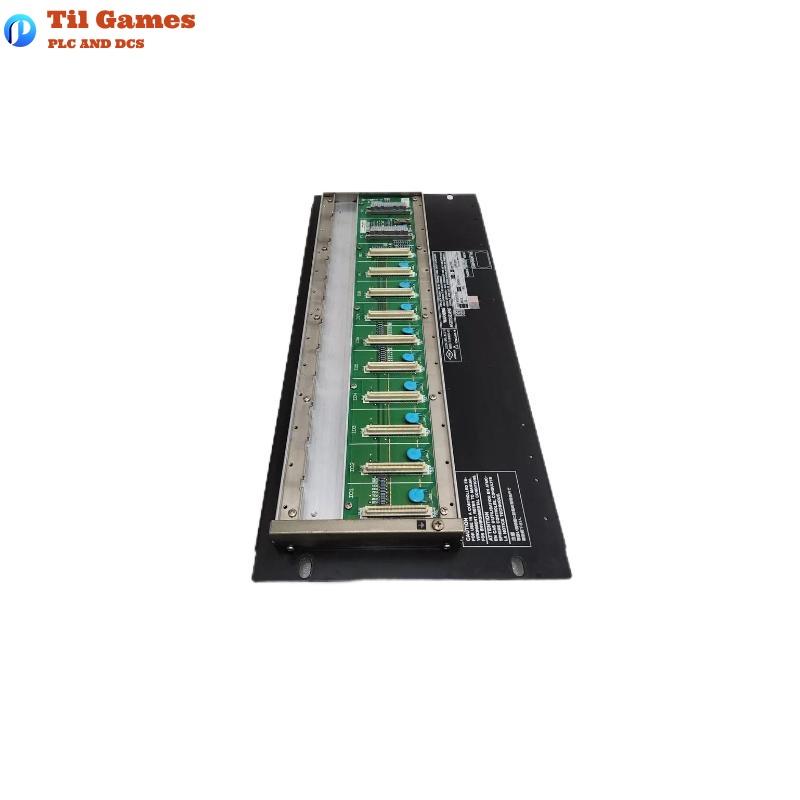

| Model Number | ANR11D-420 S1 |
| Type | Node Unit |
| Power Supply | 24 V DC |
| Installation Area | Zone 2 / Division 2 (Non-Incendive Protection) |
| Explosion Type | Type “n” (Non-Incendive) |
| Temperature Class | T4 (Max surface temperature ≤135°C) |
| Mounting Method | Enclosure-mount (Metal cabinet, IP54 or higher) |
| Dimensions (W×H×D) | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Operating Temp. | -20°C to +60°C |
| Communication | Optical ESB Bus, FOUNDATION Fieldbus |
| Protection Rating | IP54 or above (depending on cabinet specification) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What hazardous area is ANR11D-420 S1 suitable for?
A1: This product is compliant with Type “n” protection and can be installed in Zone 2 or Division 2 environments.
Q2: What are the cabinet requirements for installing this node unit?
A2: It must be mounted in a certified metal enclosure with at least IP54 protection rating.
Q3: What are the typical applications of this device?
A3: It is widely used in petrochemical, gas, power, and chemical industries with potential explosive atmospheres.
Q4: Can ANR11D-420 S1 be used in Zone 1 areas?
A4: No, this model is certified for use only in Zone 2 or Division 2 areas.
Q5: Does the product support intrinsic safety protection?
A5: No, it uses Type “n” non-incendive protection and requires proper explosion-proof wiring and terminal boards.
Q6: Can modules be hot-swapped during operation?
A6: No, hot swapping in hazardous areas is strictly prohibited while the system is powered.
Q7: Are there specific requirements for signal and power cabling?
A7: Yes, wiring must comply with EN 60079-14 or relevant local explosion-proof wiring regulations.
Q8: Is regular maintenance required during operation?
A8: Yes, periodic inspection and maintenance must be performed by certified personnel according to the installation manual.
