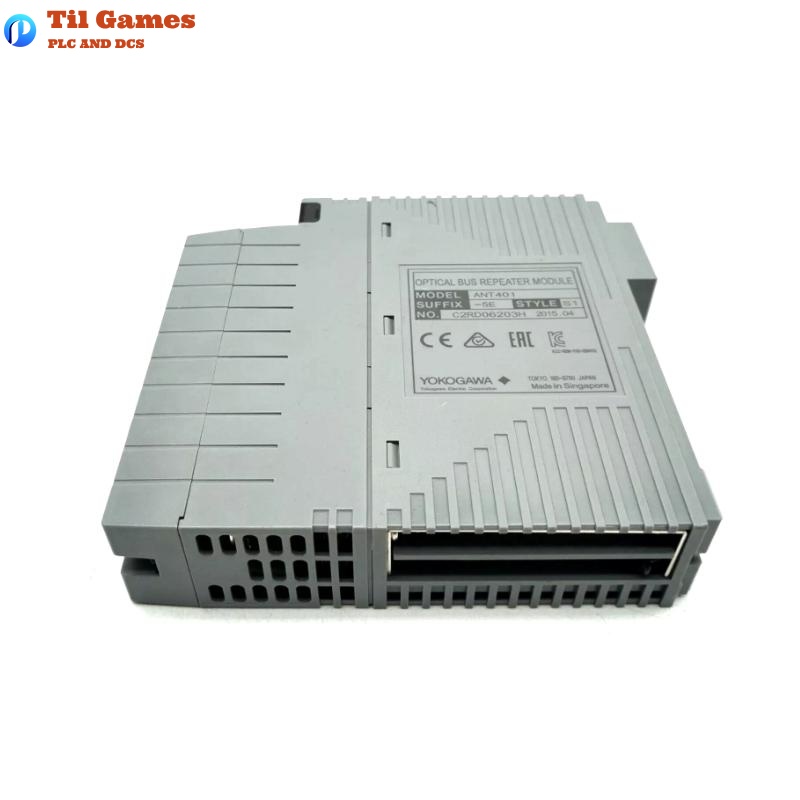

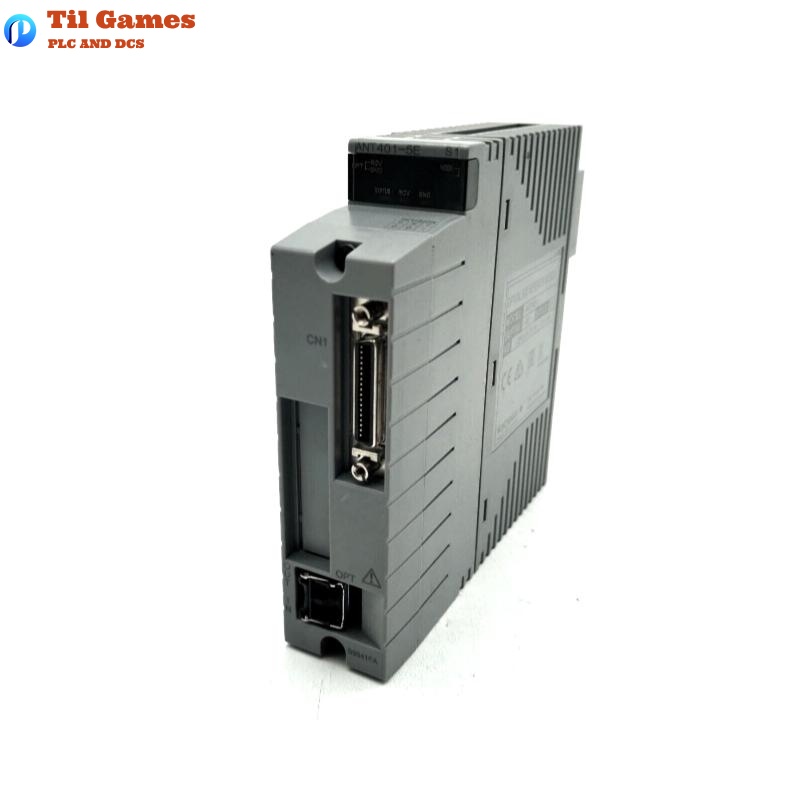

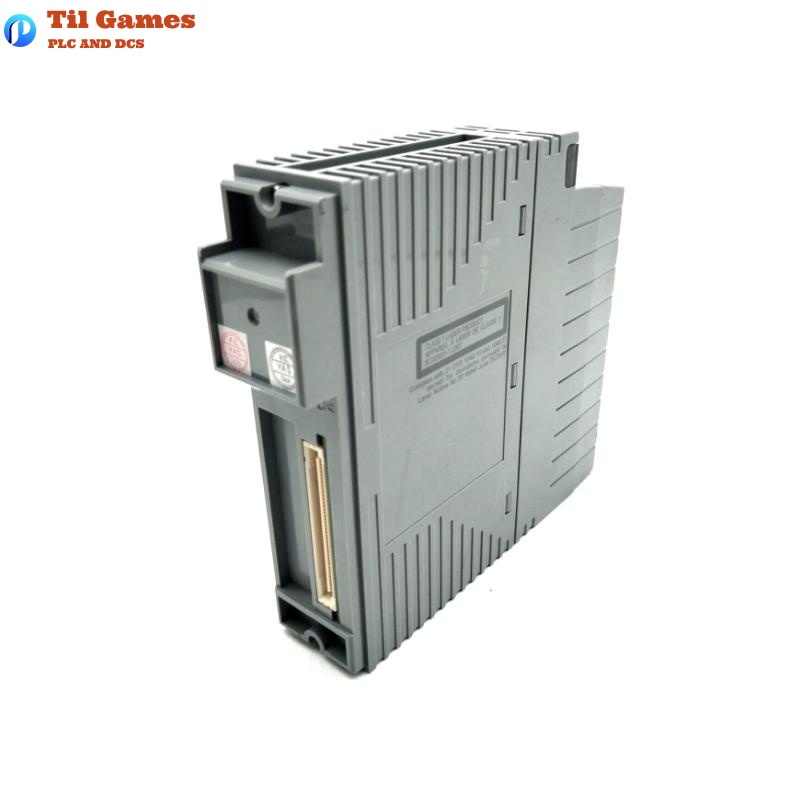

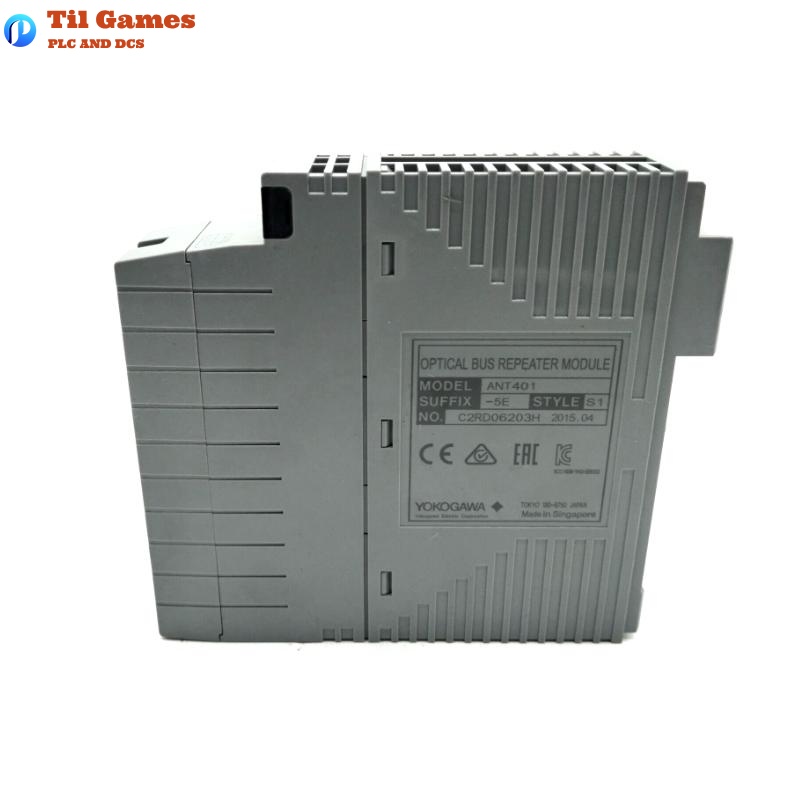

Technical Specifications
| Item | Description |
|---|---|
| Model | ANT401-5E |
| Function | Converts ESB bus signal to optical signal and transmits it |
| Max Transmission Distance | 5 km (when used with ANT502 and ANB11) |
| Max Connectable Units | 8 units (in chain or star topology) |
| Max Stages in Chain | 2 stages |
| Connection Type | Chain and star type |
| Optical Connector Type | LC type (IEC61754-20 compliant) |
| Optical Fiber Type | Quartz single-mode (JIS C 6835 SSMA -9.3/125 or IEC 60793-2-50 B1.1 type) |
| Number of Cores | 2 cores |
| Optical Loss Allowance | 0 – 10 dB @ 1.3 µm |
| Current Consumption | 0.5 A |
| Installation Units | AFV30, AFV40, ANT10U, ANB10, ANB11 |
| Slot Positions (Single) | IO1, 3, 5 |
| Slot Positions (Redundant) | IO1 to 6 (even-numbered slot requires dummy cover) |
| Dimensions (W×H×D) | 142.5 x 130 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ANT401 module?
A1: ANT401 converts ESB bus signals to optical signals for long-distance transmission.
Q2: How does ANT401 relate to ANT502?
A2: ANT401 is the master module and works with ANT502 as the slave module to form a fiber optic link.
Q3: What type of optical fiber is supported by ANT401?
A3: It supports single-mode quartz fiber, compliant with JIS or IEC standards.
Q4: What is the maximum transmission distance for one fiber link?
A4: The maximum distance is 5 km under specified conditions.
Q5: Where can the ANT401 module be installed?
A5: It can be installed in units like AFV30, AFV40, ANT10U, ANB10, and ANB11 at designated slots.
Q6: Does ANT401 support redundant configurations?
A6: Yes, it supports redundancy when installed in consecutive slots (e.g., IO1-2, IO3-4).
Q7: Are special connectors required for ANT401?
A7: Yes, it requires connector options “/CU1N” or “/CU1T” to connect to the ESB bus.
Q8: Does ANT401 support cabinet environment monitoring?
A8: Not directly; this function is enabled when used with ANT502 modules that support HKU interface.
